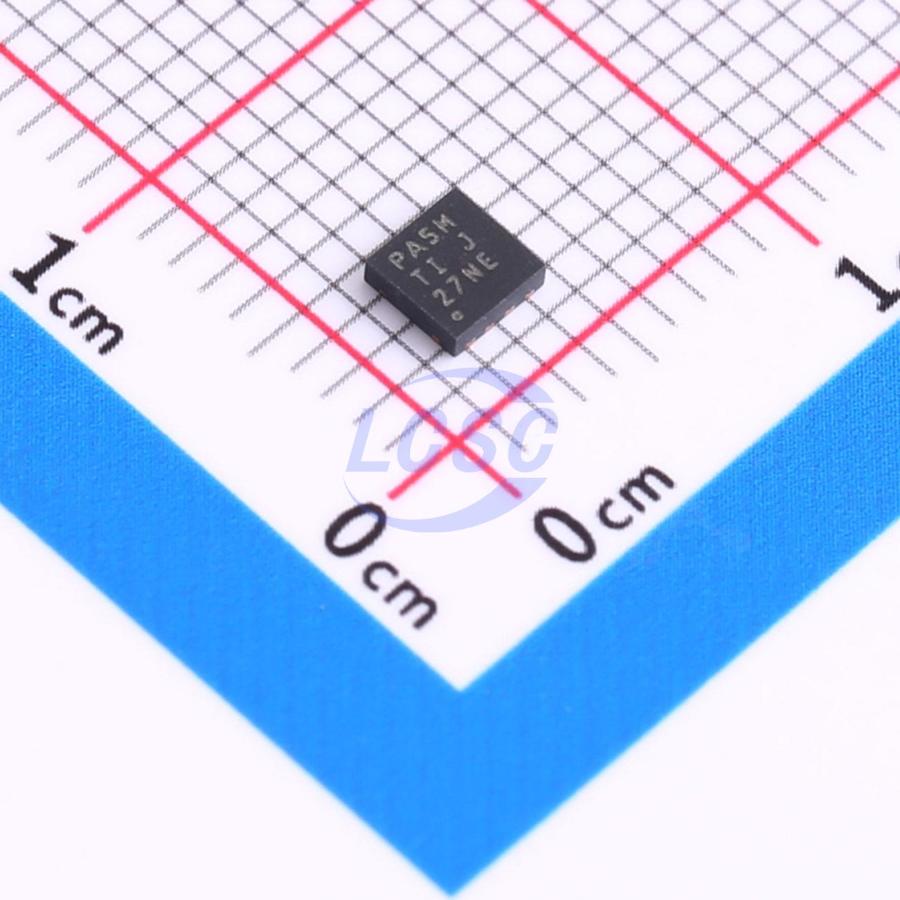

TPS7A1601DRBR

Linear Voltage Regulator IC Positive Adjustable 1 Output 100mA SON-8-EP(3x3)

SON-8-EP(3x3)ROHS3 CompliantActive

100mA, 60V ultra-low IQ low-dropout (LDO) regulator with power-good indication and enable functionality

Manufacturer: TI
Manufacturer part #: TPS7A1601DRBR
Store part #: C2867753
Package / case: SON-8-EP(3x3)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,648 in stock

#C2867753

Stock & price checked 17 days ago

Quantity	Unit price	Pack price
1+	₹290.32	₹290.32
10+	₹255.84	₹2,558.40
30+	₹231.35	₹6,940.50
100+	₹209.02	₹20,902.00
500+	₹198.61	₹99,305.00
1,000+	₹194.49	₹1,94,490.00

Quantity (min 1)

1 × ₹290.32

₹290.32

excl. GST

₹342.58 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS7A1601DRBR

₹290.32 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.169V~18.5V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 5uA
Output Configuration: Positive
Operating Voltage: 60V
Output Current: 100mA
Features: Enable control;Operating status indication;Input under-voltage protection;Thermal shutdown;Over Current Protection
Output Type: Adjustable

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.203 g

Overview

The TPS7A16 series ultra-low quiescent current, low-dropout (LDO) regulators offer the advantages of ultra-low quiescent current, high input voltage, and compact, high thermal-dissipation packages. The TPS7A16 series devices are designed for continuous or discontinuous (standby power) battery-powered applications, where ultra-low quiescent current is critical for extending system battery life. The TPS7A16 series features an enable pin (EN) compatible with standard CMOS logic and an integrated open-drain, active-high power-good output (PG) with user-programmable delay. These pins are dedicated to MCU-based, battery-powered applications requiring power rail sequencing. In addition, the TPS7A16 devices are well suited for generating low-voltage supplies from multi-cell battery solutions — ranging from multi-cell power tool packs to automotive applications. The device not only provides a well-regulated voltage rail, but also withstands voltage transients and maintains regulation during transient events. These features enable simpler and more cost-effective surge protection circuitry.

Applications

Notebook PC, digital TV, and private LAN system power supplies
High-cell-count battery packs for power tools and other battery-powered microprocessor and microcontroller systems
Automotive audio, navigation, infotainment, and other automotive systems
Smoke and CO₂ detectors, and battery-powered alarm and security systems

Key features

Wide input voltage range: 3V to 60V
Ultra-low quiescent current: 5µA
Shutdown quiescent current: 1µA
Output current: 100mA
Low dropout voltage: 60mV at 20mA
Accuracy: 2%
Available options: Fixed output voltage: 3.3V, 5V; Adjustable output voltage: 1.2V to 18.5V
Power-good indication with programmable delay
Current limiting and thermal shutdown protection
Stable with ceramic output capacitors: ≥2.2µF
Package: High thermal performance MSOP-8 and SON-8 PowerPAD
Operating temperature range: -40°C to 125°C
