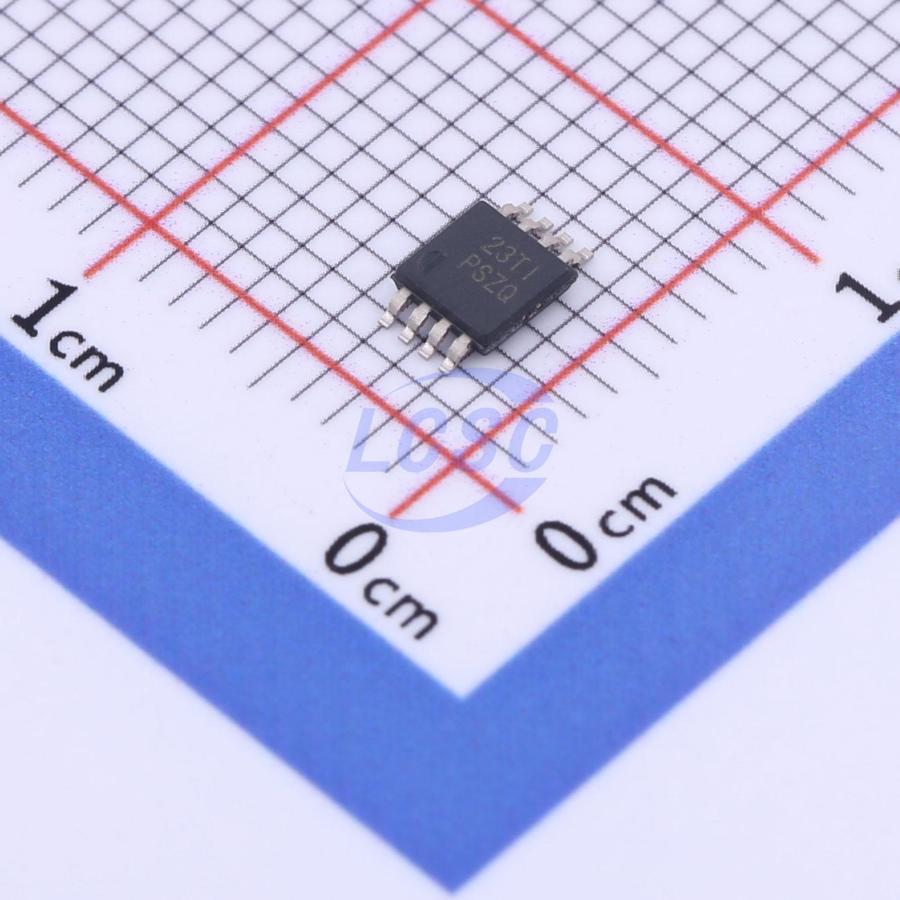

TPS7A3001DGNR
1.18V~33V Negative Adjustable HVSSOP-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
HVSSOP-8ROHS3 CompliantActive
200mA, low noise, high PSRR, negative voltage, adjustable low dropout regulator with enable function
- Manufacturer
- TI
- Manufacturer part #
- TPS7A3001DGNR
- Store part #
- C33835
- Package / case
- HVSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,738 in stock
#C33835
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹268.46 | ₹268.46 |
| 10+ | ₹241.75 | ₹2,417.50 |
| 30+ | ₹222.63 | ₹6,678.90 |
| 100+ | ₹194.18 | ₹19,418.00 |
| 500+ | ₹186.15 | ₹93,075.00 |
| 1,000+ | ₹182.89 | ₹1,82,890.00 |
1 × ₹268.46
₹268.46
excl. GST
₹316.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TPS7A3001DGNR
₹268.46 for 1 + GST
Specifications
- Output Voltage
- 1.18V~33V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 55uA
- Output Configuration
- Negative
- Output Current
- 200mA
- Operating Voltage
- 36V
- Features
- Enable control;Adjustable soft-start;Thermal shutdown;Over Current Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.066 g
Overview
The TPS7A30xx series of devices are negative, high-voltage (-36V), ultralow-noise (15.1 μVRMS, 72dB PSRR) linear regulators capable of sourcing a maximum load of 200mA. These linear regulators include a CMOS logic-level-compatible enable pin and capacitor-programmable soft-start function that allows for customized power management schemes. Other features available include built-in current limit and thermal shutdown protection to safeguard the device and system during fault conditions. The TPS7A30xx family is designed using bipolar technology, and is ideal for high-accuracy, high-precision instrumentation applications where clean voltage rails are critical to maximize system performance. This design makes it an excellent choice to power operational amplifiers, analog-to-digital converters (ADCs), digital-to-analog converters (DACs), and other high-performance analog circuitry. In addition, the TPS7A30xx family of linear regulators is suitable for post dc/dc converter regulation. By filtering out the output voltage ripple inherent to dc/dc switching conversion, maximum system performance is provided in sensitive instrumentation, test and measurement, audio, and RF applications.
Applications
- Supply Rails for Op Amps, DACs, ADCs, and Other High-Precision Analog Circuitry
- Audio
- Post DC/DC Converter Regulation and Ripple Filtering
- Test and Measurement
- RX, TX, and PA Circuitry
- Industrial Instrumention
- Base Stations and Telecom Infrastrucure
- –12V and –24V Industrial Buses
Key features
- Input Voltage Range: –3V to –36V
- Noise:
- 14μVRMS (20Hz to 20kHz)
- 15.1μVRMS (10Hz to 100kHz)
- Power-Supply Ripple Rejection:
- 72dB (120Hz)
- ≥55dB (10Hz to 700kHz)
- Adjustable Output: –1.18V to –33V
- Maximum Output Current: 200mA
- Dropout Voltage: 216mV at 100mA
- Stable with Ceramic Capacitors ≥2.2μF
- CMOS Logic-Level-Compatible Enable Pin
- Built-In, Fixed, Current-Limit and Thermal Shutdown Protection
- Available in High Thermal Performance MSOP-8 PowerPAD Package
- Operating Temperature Range: -40°C to ±125°C
