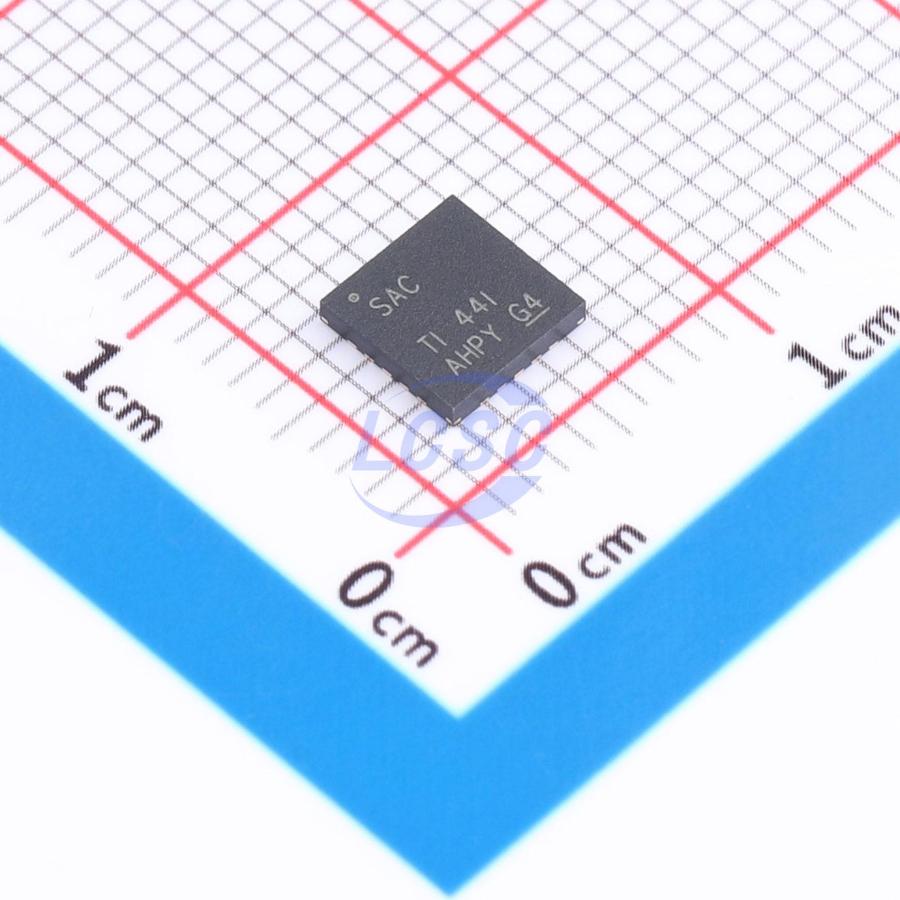

TPS7A7200RGWT
Linear Voltage Regulator IC Positive 1 Output 2A VQFN-20-EP(5x5)
VQFN-20-EP(5x5)ROHS3 CompliantActive
2A, low input voltage (1.43V), ultra-low dropout regulator with power good indication and enable function
- Manufacturer
- TI
- Manufacturer part #
- TPS7A7200RGWT
- Store part #
- C2862091
- Package / case
- VQFN-20-EP(5x5)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
187 in stock
#C2862091
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹395.29 | ₹395.29 |
| 10+ | ₹333.61 | ₹3,336.10 |
| 30+ | ₹295.16 | ₹8,854.80 |
| 250+ | ₹255.64 | ₹63,910.00 |
| 500+ | ₹237.84 | ₹1,18,920.00 |
| 1,000+ | ₹230.02 | ₹2,30,020.00 |
1 × ₹395.29
₹395.29
excl. GST
₹466.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 250 per reel
TPS7A7200RGWT
₹395.29 for 1 + GST
Specifications
- Output Voltage
- 900mV~3.5V;900mV~5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Output Configuration
- Positive
- Operating Voltage
- 6.5V
- Output Current
- 2A
- Output Type
- Fixed;Adjustable
- Features
- Adjustable soft-start;Operating status indication;Enable control;Input under-voltage protection;Thermal shutdown;Over Current Protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 250 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.115 g
Overview
The TPS7A7200 low-dropout (LDO) regulator is designed for applications requiring ultralow dropout (180mV at 2A), with input voltages ranging from 1.5V to 6.5V. The TPS7A7200 features an innovative, user-configurable output voltage setting ranging from 0.9V to 3.5V, eliminating the need for external resistors and removing any associated errors. The TPS7A7200 offers very fast load transient response, remains stable with ceramic output capacitors, and supports better than 2% accuracy over line, load, and temperature. A soft-start pin allows applications to reduce inrush current to the load. In addition, an open-drain power-good signal enables power rail sequencing. The TPS7A7200 is available in a 3mm×3mm, 16-pin QFN and a 5mm×5mm, 20-pin VQFN package.
Applications
- Wireless infrastructure: SerDes, FPGA, DSP
- RF components: VCO, ADC, DAC, LVDS
- Set-top boxes: amplifiers, ADC, DAC, FPGA, DSP
- Wireless LAN, Bluetooth
- PC and printers
- Audio and video
Key features
- Low dropout: 180mV at 2A
- VIN range: 1.5V to 6.5V
- Configurable fixed VOUT range: 0.9V to 3.5V
- Adjustable VOUT range: 0.9V to 5V
- Excellent load and line transient response
- Stable with ceramic output capacitors
- 1.5% accuracy over full line, load, and temperature range
- Programmable soft-start
- Power Good (PG) output
- 3mm×3mm QFN-16 and 5mm×5mm VQFN-20 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS7A7200QRGWREP#C2863556TI · VQFN-20-EP(5x5) | TI | VQFN-20-EP(5x5) | 1 | ₹811.55 · 1 in stock | View |
