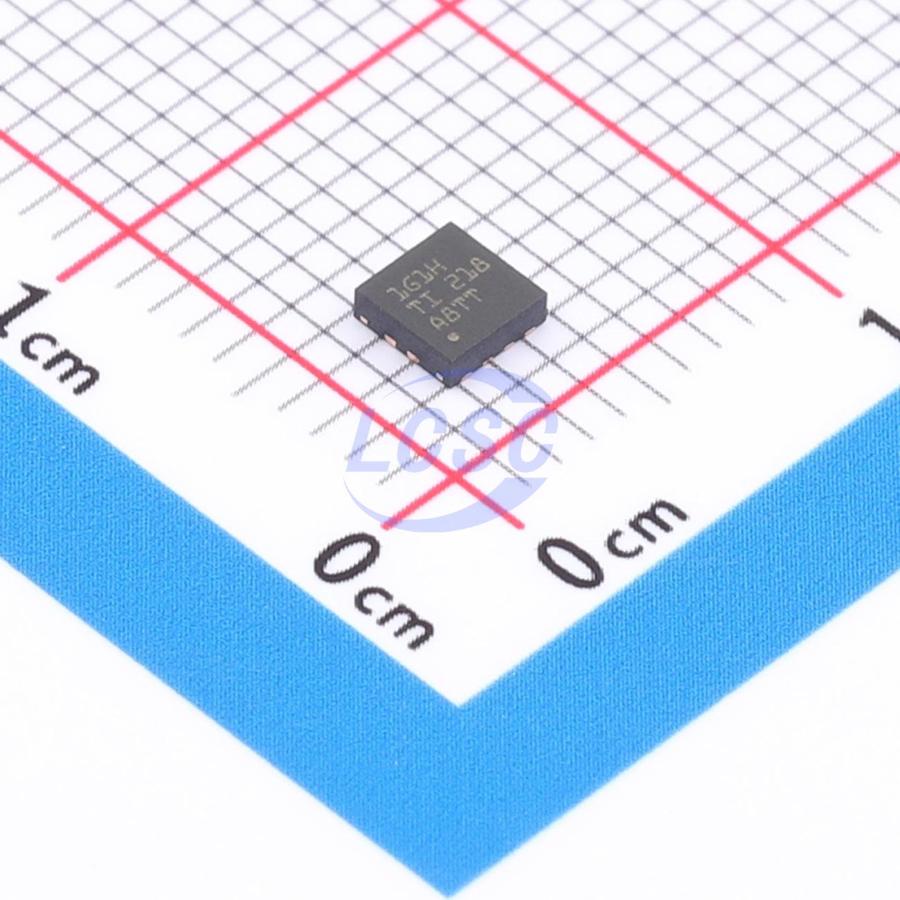

TPS7A8012DRBR

1.2V Positive Fixed SON-8-EP(3x3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SON-8-EP(3x3)ROHS3 CompliantActive

1A, low IQ, enabled functionality, high PSRR, ultra-low dropout voltage regulator

Manufacturer: TI
Manufacturer part #: TPS7A8012DRBR
Store part #: C2878092
Package / case: SON-8-EP(3x3)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

84 in stock

#C2878092

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹287.66	₹287.66
10+	₹245.97	₹2,459.70
30+	₹219.84	₹6,595.20
100+	₹193.29	₹19,329.00
500+	₹181.18	₹90,590.00
1,000+	₹176.01	₹1,76,010.00

Quantity (min 1)

1 × ₹287.66

₹287.66

excl. GST

₹339.44 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS7A8012DRBR

₹287.66 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.2V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 120uA
Output Configuration: Positive
Operating Voltage: 6.5V
Output Current: 1A
Features: Enable control;Adjustable current limiting;Input under-voltage protection;Thermal shutdown;Over Current Protection;Noise bypass terminal
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.203 g

Overview

The TPS7A80 series low-dropout linear regulators (LDO) deliver ultra-high power supply ripple rejection (PSRR) at the output. This LDO series utilizes an advanced BiCMOS process and PMOSFET pass device to achieve ultra-low noise, excellent transient response, and superior PSRR performance. The TPS7A80 series remains stable when operating with a 4.7μF ceramic output capacitor, and employs a precision voltage reference and feedback loop to achieve 3% accuracy under worst-case conditions across all load, line, process, and temperature variations. This series is rated for an operating junction temperature range of TJ = -40℃ to +125℃, and is available in a 3mm×3mm VSON-8 package with an exposed thermal pad.

Applications

Telecom Infrastructure
Audio
High-Speed Interface (IVF) (PLL/VCO)

Key features

Low-dropout 1A regulator with enable function
Adjustable output voltage: 0.8V to 6V
Fixed output voltage: 0.8V to 6V
Wide-bandwidth high PSRR: 63dB at 1kHz, 57dB at 100kHz, 38dB at 1MHz
Low noise: (14 × output voltage) μV_RMS typical (100Hz to 100kHz)
Stable with 4.7μF ceramic capacitor
Excellent load/line transient response
Overall accuracy 3% (over load/line/temperature range)
Overcurrent and overtemperature protection
Ultra-low dropout: 170mV typical at 1A
3mm x 3mm VSON-8 DRB package

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
MC33269DQ3-1.2/TR#C52121504HGSEMI · DFN-8(3x3)	HGSEMI	DFN-8(3x3)	5,000	₹22.08 · 5,000 in stock	View
MCP1726-1202E/MF#C635091MICROCHIP · DFN-8-EP(3x3)	MICROCHIP	DFN-8-EP(3x3)	5	₹226.96 · 5 in stock	View
TPS78512BQWDRBRQ1#C3745948TI · SON-8(3x3)	TI	SON-8(3x3)	19	₹364.55 · 19 in stock	View
TPS78512QWDRBRQ1#C3748562TI · SON-8(3x3)	TI	SON-8(3x3)	155	₹249.86 · 155 in stock	View
NCV59801CML120TCG#C5209188onsemi · DFNW-8-EP(3x3)	onsemi	DFNW-8-EP(3x3)	131	₹88.68 · 131 in stock	View
