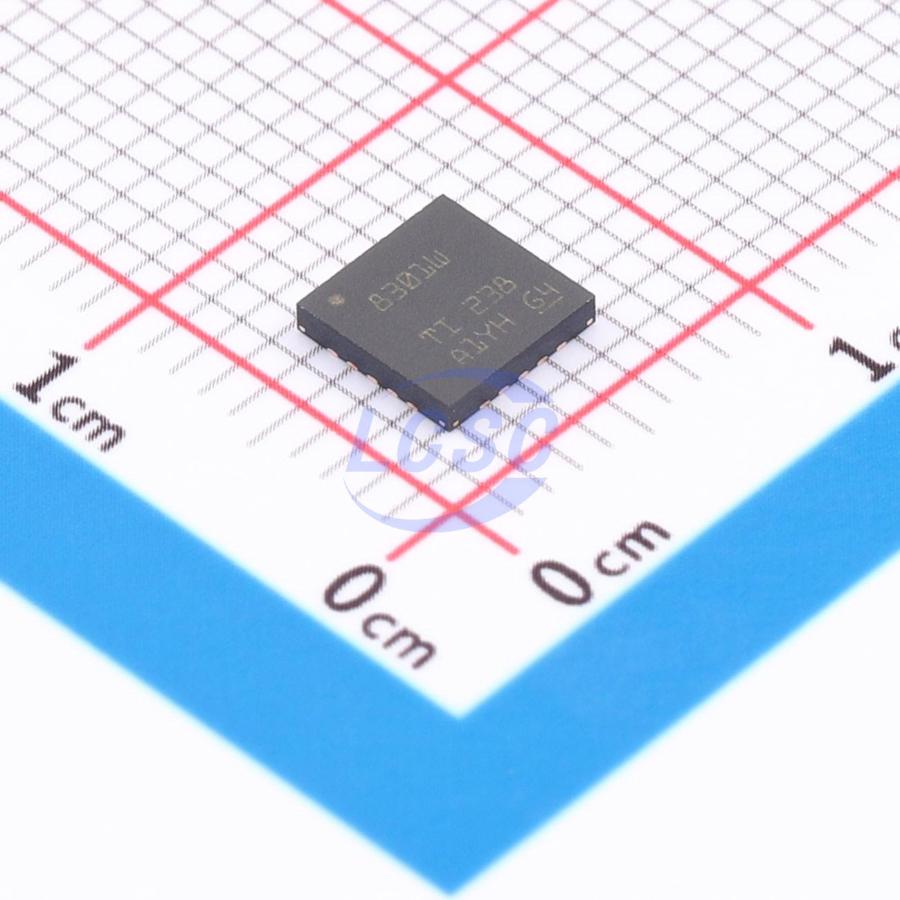

TPS7A8301ARGWR

500mV~5.2V Positive Adjustable VQFN-20(5x5) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

VQFN-20(5x5)RoHSActive

Manufacturer: TI
Manufacturer part #: TPS7A8301ARGWR
Store part #: C5220624
Package / case: VQFN-20(5x5)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C5220624

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹823.90	₹823.90
10+	₹804.82	₹8,048.20
30+	₹791.82	₹23,754.60
100+	₹779.02	₹77,902.00

Quantity (min 1)

1 × ₹823.90

₹823.90

excl. GST

₹972.20 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS7A8301ARGWR

₹823.90 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 500mV~5.2V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Output Configuration: Positive
Output Current: 2A
Operating Voltage: 6.5V
Output Type: Adjustable
Features: Adjustable soft-start;Operating status indication;Enable control;Input under-voltage protection;Thermal shutdown;Short Circuit Protection;Over Current Protection

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.8 g

Overview

The TPS7A83A is a low-noise (4.4μV_RMS), low-dropout linear regulator (LDO) capable of delivering 2A with a maximum dropout voltage of only 200mV. The TPS7A8300A output voltage is pin-programmable from 0.8V to 3.95V in 50mV steps and adjustable from 0.8V to 5.2V using an external resistor divider. The TPS7A8301A output voltage is pin-programmable from 0.5V to 2.075V in 25mV steps and adjustable from 0.5V to 5.2V using an external resistor divider. For digital loads requiring low-input and low-output (LILO) voltage operation — such as ASICs, FPGAs, and DSPs — the TPS7A83A delivers exceptional accuracy (0.75% over load and temperature range), remote sensing, excellent transient performance, and soft-start capability to ensure superior system performance. Combining low noise, high PSRR, and high output current capability, the TPS7A83A is ideally suited to power noise-sensitive components in high-speed communications, video, medical, and test-and-measurement applications. The TPS7A83A's high performance suppresses power supply-induced phase noise and clock jitter, making it designed to power high-performance SerDes, ADCs, DACs, and RF components. The device's outstanding performance and output capability up to 5.2V make it particularly well-suited for RF amplifier applications.
