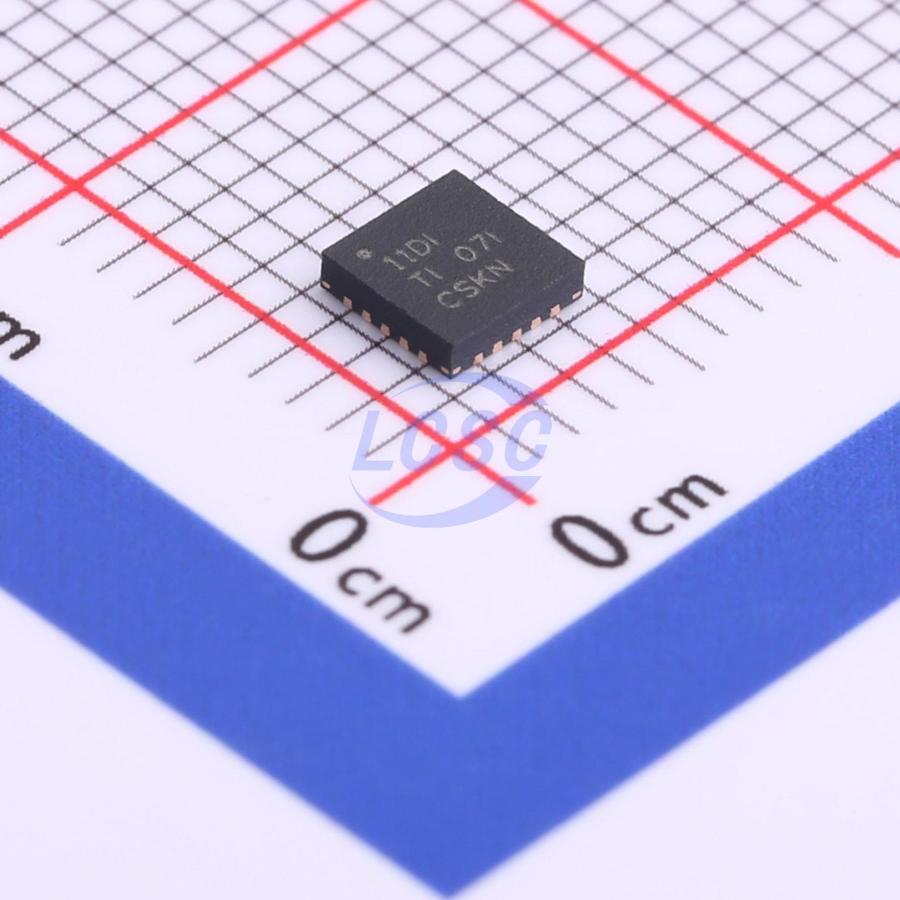

TPS7A8500RGRR

Linear Voltage Regulator IC Positive Adjustable 1 Output 4A VQFN-20-EP(3.5x3.5)

VQFN-20-EP(3.5x3.5)ROHS3 CompliantActive

4A low input voltage, low noise, high precision, ultra-low dropout regulator with power good indication

Manufacturer: TI
Manufacturer part #: TPS7A8500RGRR
Store part #: C962073
Package / case: VQFN-20-EP(3.5x3.5)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,338 in stock

#C962073

Stock & price checked 13 days ago

Quantity	Unit price	Pack price
1+	₹484.59	₹484.59
10+	₹413.41	₹4,134.10
30+	₹364.42	₹10,932.60
100+	₹321.54	₹32,154.00
500+	₹301.72	₹1,50,860.00
1,000+	₹292.81	₹2,92,810.00

Quantity (min 1)

1 × ₹484.59

₹484.59

excl. GST

₹571.82 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS7A8500RGRR

₹484.59 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 800mV~5V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Output Configuration: Positive
Output Current: 4A
Operating Voltage: 6.5V
Features: Adjustable soft-start;Operating status indication;Enable control;Output discharge;Input under-voltage protection;Thermal shutdown;Over Current Protection
Output Type: Adjustable

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.1 g

Overview

The TPS7A85 is a low-noise (4.4 μV_RMS), low-dropout (LDO) linear regulator with 4A source current capability and a maximum dropout voltage of only 240 mV. The output voltage can be pin-programmed from 0.8V to 3.95V or adjusted from 0.8V to 5.0V via an external resistor divider. The TPS7A85 combines low noise (4.4 μV_RMS), high PSRR, and high output current performance, making it well-suited for powering high-speed communications, video, medical, or test and measurement loads up to 1A. The high performance of the TPS7A85 limits phase noise and clock jitter generated by the power supply, making it ideal for powering high-performance SerDes, ADCs, DACs, and RF components. RF amplifiers in particular benefit from the device's high performance and 5.0V output capability. For digital loads requiring low-input, low-output (LILO) voltage operation — such as ASICs, FPGAs, and DSPs — the TPS7A85's excellent accuracy (0.75% over load and temperature range), remote sensing, superior transient performance, and soft-start functionality ensure optimal system performance. The versatility of the TPS7A85 makes it a compelling choice for many demanding applications.

Applications

Digital loads: SerDes, FPGA, and DSP
Instrumentation, medical, and audio
High-speed analog circuits: VCO, ADC, DAC, and LVDS
Imaging: CMOS sensors and video ASIC
Test and measurement

Key features

Low dropout: 150 mV (typical) at 4A
Line, load, and temperature accuracy: 1% (maximum)
Output voltage noise: 4.4 μV_RMS (0.8V output), 8.4 μV_RMS (5.0V output)
Input voltage range:
Without bias: 1.4V to 6.5V
With bias: 1.1V to 6.5V
ANY-OUT™ operation:
Output voltage range: 0.8V to 3.95V
Adjustable operation:
Output voltage range: 0.8V to 5.0V
Power supply ripple rejection:
40dB at 500kHz
Excellent load transient response
Adjustable soft-start
Inrush current control
Open-drain power good (PG) output
Stable with 47 μF or larger ceramic output capacitors
Operating temperature range: -40°C to +125°C
20-pin 3.5 mm×3.5 mm VQFN package

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	GM1203BACPZ-3-R7#C20421905GONGMOSEMI · QFN-20(3.5x3.5)	GONGMOSEMI	QFN-20(3.5x3.5)	226	₹315.47 · 226 in stock	View
	TPS7A8500RGRT#C181271TI · VQFN-20-EP(3.5x3.5)	TI	VQFN-20-EP(3.5x3.5)	On request	₹1,034.11 · 0 in stock	View
