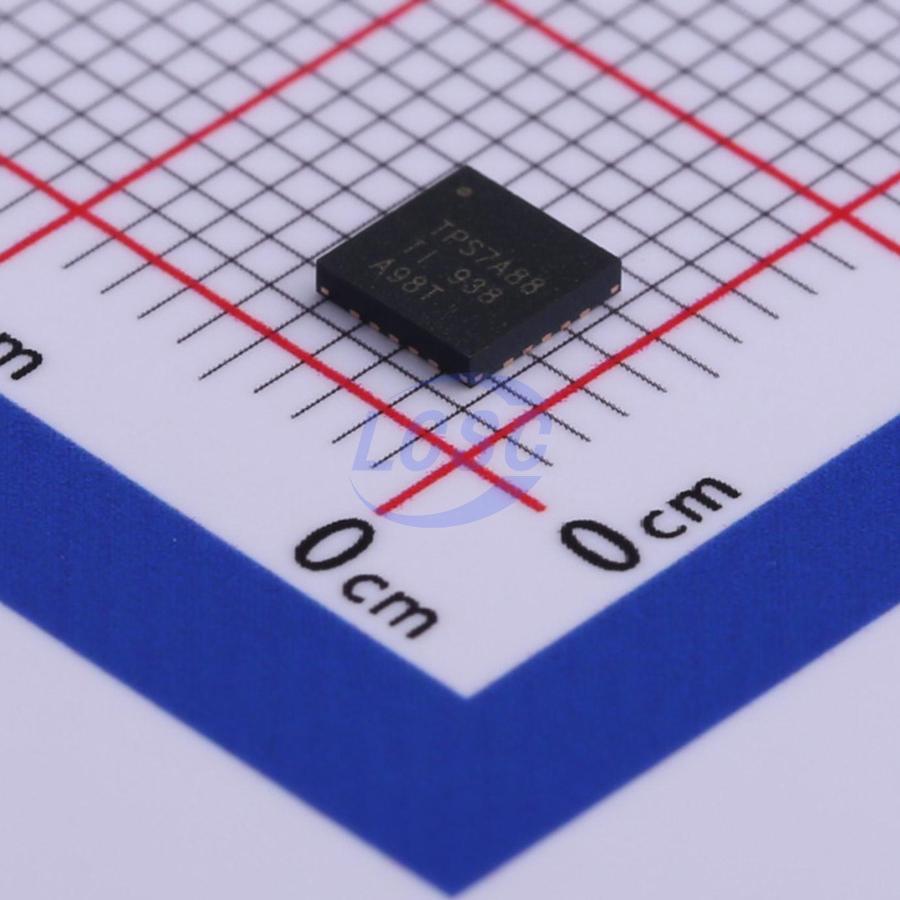

TPS7A8801RTJR

The TPS7A88 is a dual, low-noise (3.8 µV_RMS), low-dropout (LDO) voltage regulator capable of sourcing 1 A per channel with only 200 mV of maximum dropout. The TPS7A88 provides the flexibility of two independent LDOs and approximately 50% smaller solution size than two single-channel LDOs. Each output is adjustable with external resistors from 0.8 V to 5.0 V. The TPS7A88 wide input-voltage range supports operation as low as 1.4 V and up to 6.5 V. With 1% output voltage accuracy (over line, load, and temperature) and soft-start capabilities to reduce inrush current, the TPS7A88 is ideal for powering sensitive analog low-voltage devices [such as voltage-controlled oscillators (VCOs), analog-to-digital converters (ADCs), digital-to-analog converters (DACs), high-end processors, and field-programmable gate arrays (FPGAs)]. The TPS7A88 is designed to power up noise-sensitive components such as those found in high-speed communication, video, medical, or test and measurement applications. The very low 4-µV_RMS output noise and wideband PSRR (40 dB at 1 MHz) minimizes phase noise and clock jitter. These features maximize performance of clocking devices, ADCs, and DACs.

Applications

• High-Speed Analog Circuits: VCO, ADC, DAC, LVDS
• Imaging: CMOS Sensors, Video ASICs
• Test and Measurement Instrumentation, Medical, and Audio
• Digital Loads: SerDes, FPGA

Key features

• Two Independent LDO Channels
• Low Output Noise: <3.8 µV_RMS (10 Hz–100 kHz)
• Low Dropout: 200 mV (Max) at 1 A
• Wide Input Voltage Range: 1.4 V to 6.5 V
• Wide Output Voltage Range: 0.8 V to 5.0 V
• High Power-Supply Ripple Rejection: – 75 dB at DC, 40 dB at 100 kHz, 40 dB at 1 MHz
• 1.0% Accuracy Over Line, Load, and Temperature
• Excellent Load Transient Response
• Adjustable Start-Up In-Rush Control
• Selectable Soft-Start Charging Current
• Independent Open-Drain Power-Good (PG) Outputs
• Stable with a 10-µF or Larger Ceramic Output Capacitor
• 4-mm×4-mm, 20-Pin WQFN Package
