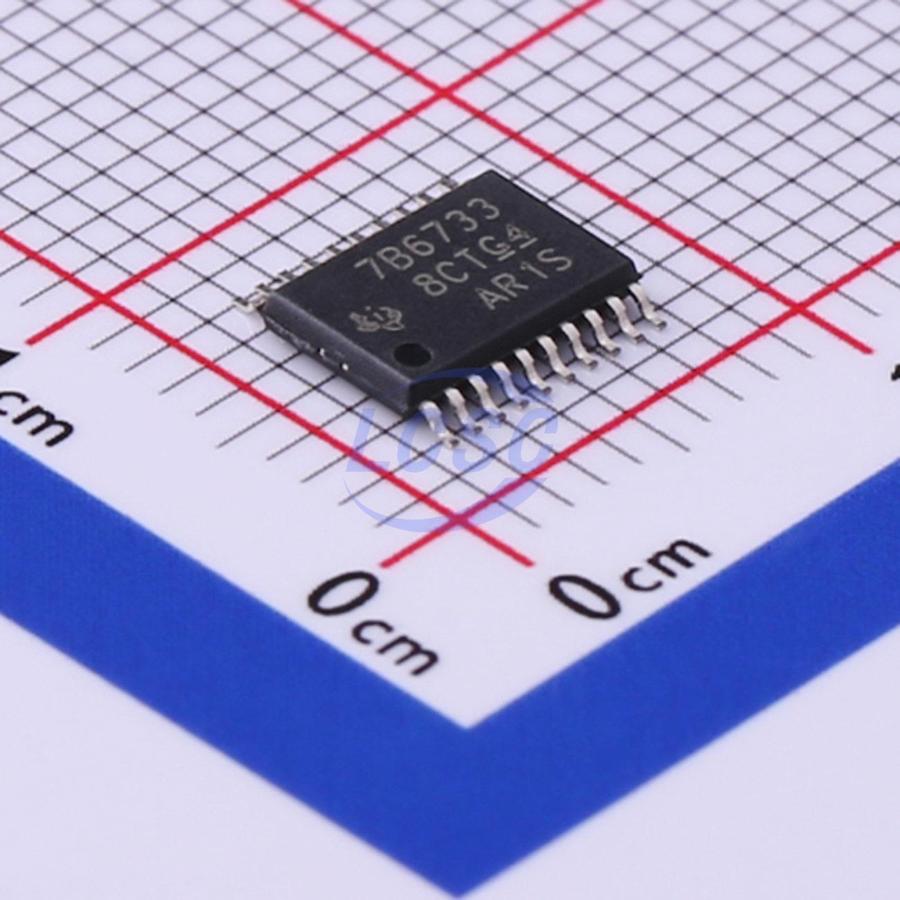

TPS7B6733QPWPRQ1

The TPS7B6701-Q1, TPS7B6733-Q1, and TPS7B6750-Q1 devices (TPS7B67xx-Q1) are lowdropout linear regulators designed for up to 40-V V_IN operations. With only 15-μA quiescent current at light load that greatly increases the endurance time of the automotive battery, the devices drive loads up to 450 mA. The TPS7B67xx-Q1 family of devices features an integrated short-circuit and overcurrent protection. Reset delay and power-good signal are implemented on power-up to indicate that the output voltage is stable and is in regulation. An external capacitor programs the delay. The enable function activates and deactivates the device with an I/O port from the MCU. The device family operates at a temperature range of -40°C to 125°C.

Applications

• Automotive
• Infotainment Tuner Supply
• Body Control Modules
• Always-ON Battery Applications
• Gateway Applications
• Remote Keyless Entry Systems
• Immobilizers

Key features

• Qualified for Automotive Applications
• AEC-Q100 Qualified With the Following Results Device Temperature Grade 1: -40°C to 125°C Ambient Operating Temperature Range
• Device HBM ESD Classification Level H2
• Device CDM ESD Classification Level C3B
• 4-V to 40-V Wide - V_IN Input-Voltage Range With up to 45-V Transient
• Maximum Output Current, 450 mA
• Low Quiescent Current (I_Q)
• <4 μA When EN = Low (Shutdown Mode)
• 15 μA Typical at Light Loads
• Low-ESR (0.001 to 20 Ω) Ceramic Output-Stability Capacitor (10 μF to 500 μF When V_0 ≥ 2.5 V, 22 μF to 500 μF when V_0 = 1.5 V to 2.5 V)
• Maximum Dropout Voltage 450 mV at 400 mA
• Adjustable 1.5-V to 18-V Output Voltages
• Low-Input Voltage Tracking to UVLO
• Integrated Power-On Reset
• Programmable-Reset Pulse Delay
• Open-Drain Reset Output
• Integrated Fault Protection
• Thermal Shutdown
• Short-Circuit Protection
• 20-Pin HTSSOP Package
