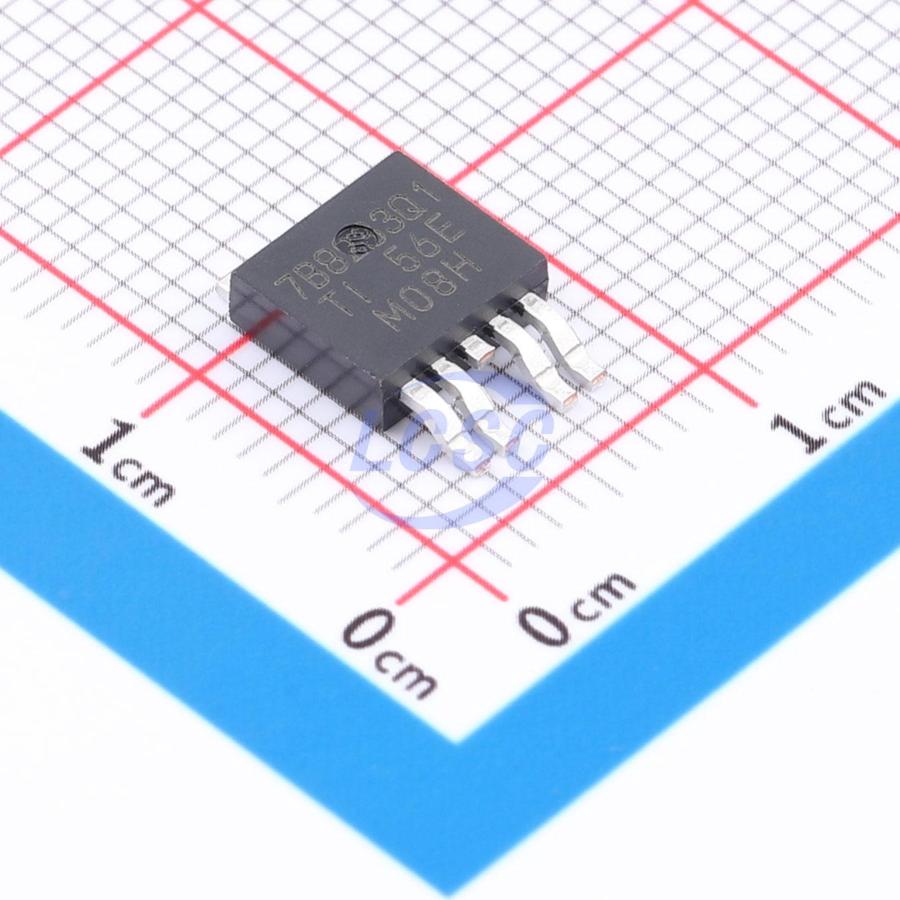

TPS7B8233QKVURQ1
3.3V Positive Fixed TO-252-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-4ROHS3 CompliantActive
Compliant with AEC-Q100 Grade 0 and 1 standards, automotive-grade 300mA non-battery power supply (40V) ultra-low IQ LDO with enable pin
- Manufacturer
- TI
- Manufacturer part #
- TPS7B8233QKVURQ1
- Store part #
- C2877359
- Package / case
- TO-252-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
86 in stock
#C2877359
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹212.71 | ₹212.71 |
| 10+ | ₹178.84 | ₹1,788.40 |
| 30+ | ₹158.88 | ₹4,766.40 |
| 100+ | ₹137.39 | ₹13,739.00 |
| 500+ | ₹127.63 | ₹63,815.00 |
| 1,000+ | ₹123.29 | ₹1,23,290.00 |
1 × ₹212.71
₹212.71
excl. GST
₹251.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TPS7B8233QKVURQ1
₹212.71 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+165℃@(Tj)
- Supply Current (Iq)
- 6.5uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 40V
- Features
- Enable control;Input under-voltage protection;Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.568 g
Overview
In automotive battery-connected applications, low quiescent current (IQ) is critical for power savings and extended battery life. For always-on systems, ultra-low IQ is essential. The TPS7B82-Q1 is a low-dropout linear regulator designed to operate over a wide input voltage range of 3V to 40V (45V load dump protection). With an operating voltage as low as 3V, the TPS7B82-Q1 continues to function during cold crank as well as start-stop conditions. The device features a typical quiescent current of only 2.7μA at light load, making it an ideal solution for powering MCUs and CAN/LIN transceivers in standby systems. These devices feature integrated short-circuit and overcurrent protection. The device operates over an ambient temperature range of -40°C to +125°C, with a junction temperature range of -40°C to +150°C. In addition, the device employs a thermally conductive package, enabling sustained operation even under high thermal dissipation conditions. Due to these characteristics, the device is designed to serve as a power supply for a wide range of automotive applications.
Applications
- Automotive head unit
- Telematics control unit
- Headlamps
- Body control module
- Inverter and motor control
Key features
- AEC-Q100 qualified for automotive applications:
- Temperature Grade 1: -40°C ≤ TA ≤ 125°C
- Temperature Grade 0: -40°C ≤ TA ≤ 150°C
- Operating junction temperature range:
- Grade 1: -40°C ≤ TJ ≤ 150°C
- Grade 0: -40°C ≤ TJ ≤ 165°C
- Low quiescent current IQ:
- IQ = 300nA in shutdown mode
- Typical 2.7μA at light load
- Maximum 5μA at light load
- Wide VIN input voltage range: 3V to 40V, transient voltage up to 45V
- Maximum output current: 300mA
- Output voltage accuracy: 2%
- Maximum dropout voltage: 700mV at 200mA load current for fixed 5V output version
- Stable with low ESR (0.001Ω to 5Ω) ceramic output stabilizing capacitors (1µF to 200μF)
- Fixed output voltages: 2.5V, 3.3V, and 5V
- Packages:
- 8-pin HVSSOP, RθJA = 63.9°C/W
- 6-pin WSON, RθJA = 72.8°C/W
- 5-pin TO-252, RθJA = 31.1°C/W
- 14-pin HTSSOP, RθJA = 52.0°C/W
