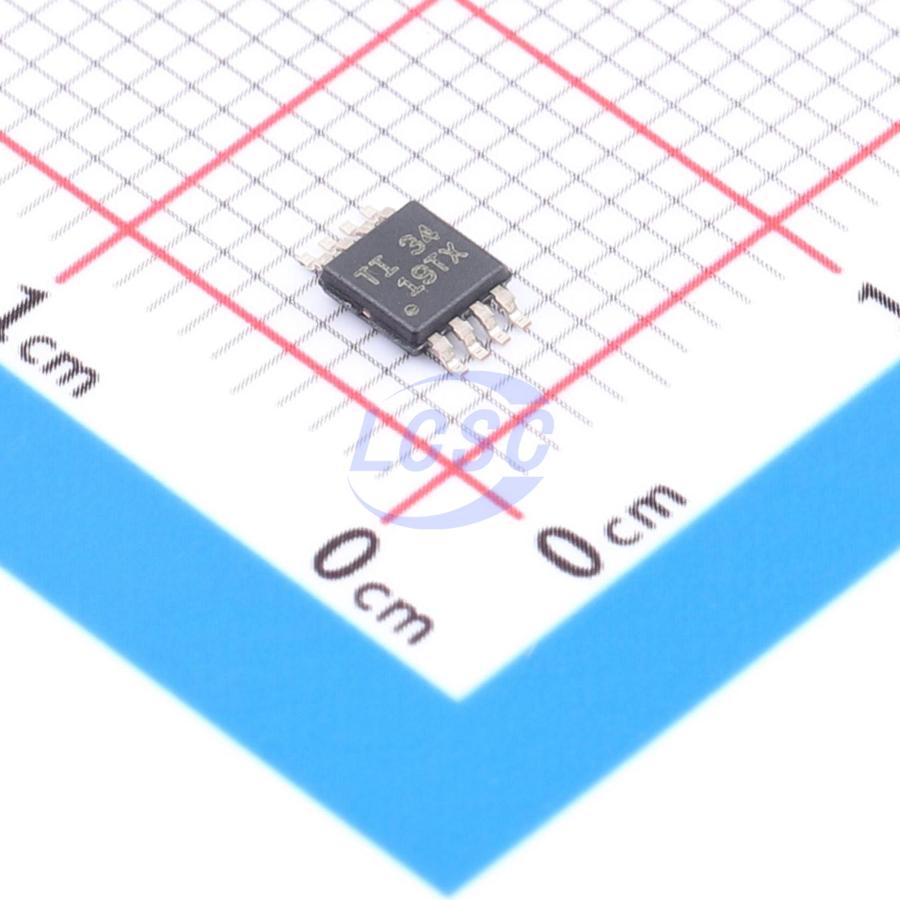

TPS7B8250QDGNRQ1

5V Positive Fixed HVSSOP-8-EP-0.65mm Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

HVSSOP-8-EP-0.65mmROHS3 CompliantActive

Compliant with AEC-Q100 Grade 0 and 1 standards, automotive-grade 300mA non-battery power supply (40V) ultra-low IQ LDO with enable pin

Manufacturer: TI
Manufacturer part #: TPS7B8250QDGNRQ1
Store part #: C424924
Package / case: HVSSOP-8-EP-0.65mm
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,002 in stock

#C424924

Stock & price checked 18 days ago

Quantity	Unit price	Pack price
1+	₹202.66	₹202.66
10+	₹167.21	₹1,672.10
30+	₹147.87	₹4,436.10
100+	₹125.91	₹12,591.00
500+	₹116.12	₹58,060.00
1,000+	₹111.77	₹1,11,770.00

Quantity (min 1)

1 × ₹202.66

₹202.66

excl. GST

₹239.14 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

TPS7B8250QDGNRQ1

₹202.66 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 5V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Ta)
Supply Current (Iq): 5uA
Output Configuration: Positive
Output Current: 300mA
Operating Voltage: 40V
Features: Enable control;Input under-voltage protection;Over Current Protection;Short Circuit Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.184 g

Overview

In automotive battery-connected applications, low quiescent current (IQ) is important to save power and extend battery lifetime. It is especially necessary to have ultralow IQ for always-on systems. The TPS7B82-Q1 is a low-dropout linear regulator designed to operate with a wide input-voltage range from 3 V to 40 V (45-V load dump protection). Operation down to 3 V allows the TPS7B82-Q1 to continue operating during cold-crank and start and stop conditions. With only 2.7-μA typical quiescent current at light load, this device is an optimal solution for powering microcontrollers (MCUs) and CAN/LIN transceivers in standby systems. The device features integrated short-circuit and overcurrent protection. This device operates in ambient temperatures from -40°C to 125°C and with junction temperatures from -40°C to 150°C. Additionally, this device uses a thermally conductive package to enable sustained operation despite significant dissipation across the device. Because of these features, the device is well suited as a power supply for various automotive applications.

Applications

Automotive Head Unit
Powering MCUs and CAN/LIN Transceivers
Telematics Control Unit
Body Control Modules
Always-ON Battery-Connected Applications
Gateway Applications
Remote Keyless Entry Systems

Key features

Qualified for Automotive Applications
AEC-Q100 Qualified With the Following Results:
Device Temperature Grade 1: -40°C ≤ TA ≤ 125°C Ambient Operating Temperature Range
Device HBM ESD Classification Level H2
Device CDM ESD Classification Level C3B
Extended Junction Temperature Range: -40°C ≤ TJ ≤ 150°C
Low Quiescent Current IQ:
300-nA Shutdown IQ
2.7 μA Typical at Light Loads – 5 μA Maximum at Light Loads
3-V to 40-V Wide VIN Input Voltage Range With up to 45-V Transient
Maximum Output Current: 300 mA
2% Output-Voltage Accuracy
Maximum Dropout Voltage: 700 mV at 200 mA Load Current for Fixed 5-V Output Version
Stable With Low-ESR (0.001-Ω to 5-Ω) Ceramic Output-Stability Capacitor (1 μF to 200 μF)
Fixed 5-V and 3.3-V Output Voltage
Thermal Resistance (RθJA): 63.9°C/W
Packages:
8-Pin HVSSOP, RθJA = 63.9°C/W
6-Pin WSON, RθJA = 72.8°C/W
5-Pin TO-252, RθJA = 38.8°C/W
