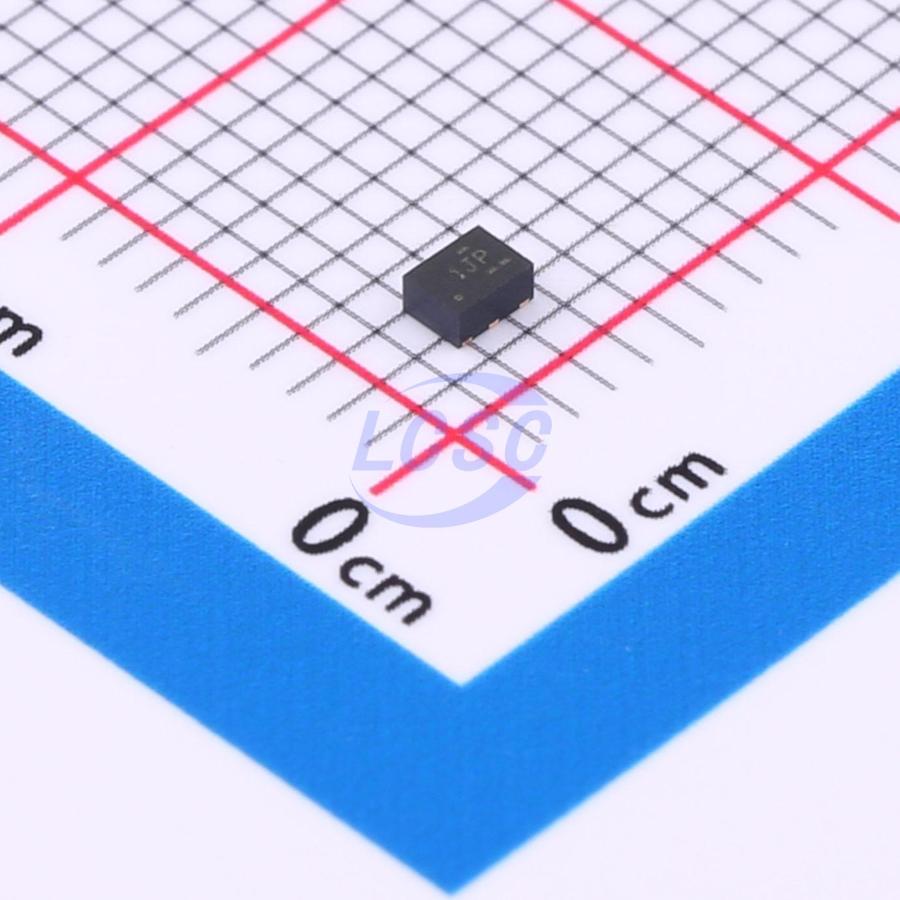

TPS92200D2RXLR
1MHz Analog 1 DC-DC 1.5A 4V~30V VQFN-6-HR LED Drivers RoHS
4-V to 30-V Input Voltage, 1.5-A Output Current, Synchronous Buck LED Driver With Flexible Dimming Options
- Manufacturer
- TI
- Manufacturer part #
- TPS92200D2RXLR
- Store part #
- C5122739
- Package / case
- VQFN-6-HR
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,121 in stock
#C5122739
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹87.87 | ₹87.87 |
| 10+ | ₹74.60 | ₹746.00 |
| 30+ | ₹65.48 | ₹1,964.40 |
| 100+ | ₹57.64 | ₹5,764.00 |
| 500+ | ₹55.25 | ₹27,625.00 |
| 1,000+ | ₹53.95 | ₹53,950.00 |
1 × ₹87.87
₹87.87
excl. GST
₹103.69 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS92200D2RXLR
₹87.87 for 1 + GST
Specifications
- Frequency - Switching
- 1MHz
- Dimming
- Analog
- Number of Channels
- 1
- Type
- DC-DC
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.5A
- Operating Temperature
- -40℃~+125℃
- Features
- Over Voltage Protection;Built-in soft-start;Short Circuit Protection;LED open-circuit protection;Over-Temperature Protection (OTP)
- Topology
- Buck
- Voltage - Input(DC)
- 4V~30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.018 g
Overview
4-V to 30-V wide input range Integrated 150-mΩ and 90-mΩ MOSFETs for 1.5-A continuous output current Ultra-low shut-down current: 1 μA Ultra-low output discharge current from load: 1 μA 1-MHz switching frequency Maximum duty cycle up to 99% Peak current mode with internal compensation Flexible dimming options: – TPS92200D1: PWM dimming with digital input and analog dimming with analog input TPS92200D2: analog dimming with digital input Ultra-low and accurate FB voltage: 99 mV ± 3 mV Full protection features: – LED open-load protection LED + short-to-GND protection with auto-retry LED + and LED– short circuitry protection with auto-retry Sense-resistor open-load and short-to-GND protection with auto-retry Thermal shutdown protection with auto-retry SOT23 (6) package VQFN-HR (6) package
Applications
- Video surveillance IR/White LED driver
- Facial recognition IR LED driver
- Stage lighting LED driver
- General industrial and commercial illumination
- Medical UV LED driver
- AA or Li-Ion battery charger
Key features
- 4-V to 30-V wide input range
- Integrated 150-mΩ and 90-mΩ MOSFETs for 1.5-A continuous output current
- Ultra-low shut-down current: 1 μA
- Ultra-low output discharge current from load: 1 μA
- 1-MHz switching frequency
- Maximum duty cycle up to 99%
- Peak current mode with internal compensation
- Flexible dimming options:
- TPS92200D1: PWM dimming with digital input and analog dimming with analog input
- TPS92200D2: analog dimming with digital input
- Ultra-low and accurate FB voltage: 99 mV ± 3 mV
- Full protection features:
- LED open-load protection
- LED + short-to-GND protection with auto-retry
- LED + and LED– short circuitry protection with auto-retry
- Sense-resistor open-load and short-to-GND protection with auto-retry
- Thermal shutdown protection with auto-retry
- SOT23 (6) package
- VQFN-HR (6) package
