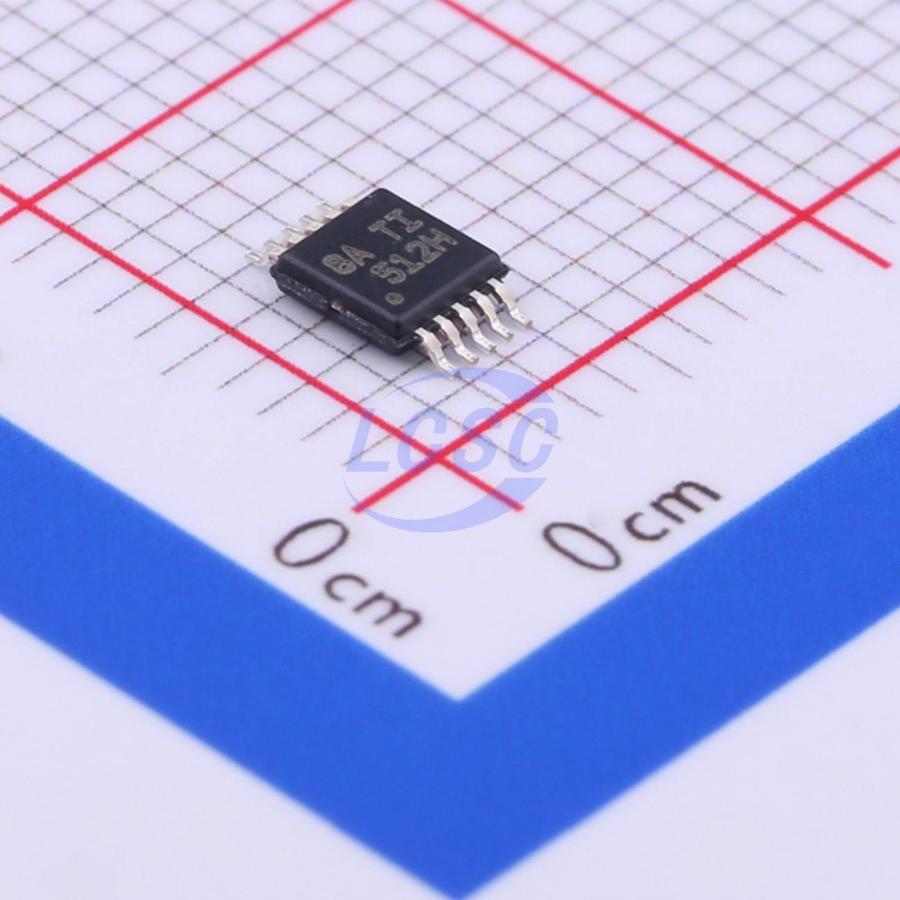

TPS92512HVDGQR

The TPS92512/HV are 2.5A step-down (buck) current regulators with an integrated MOSFET to drive high current LEDs. Available with 42 V and 60 V (HV) input ranges, these LED drivers operate at a user selected fixed-frequency with peak-current mode control and deliver excellent line and load regulation. The TPS92512/HV LED drivers feature separate inputs for analog and pulse width modulation (PWM) dimming for no compromise brightness control achieving contrast ratios of greater than 10:1 and greater than 100:1, respectively. The PWM input is compatible with low-voltage logic standards for easy interface to a broad range of microcontrollers. The analog LED current setpoint is adjustable from 0V to 300 mV using the IADJ input with an external 0V to 1.8 V signal. For multi-string applications using two or more TPS92512/HV LED drivers, the internal oscillator can be overdriven by an external clock ensuring all of the converters operate at a common frequency thereby reducing the potential for beat frequencies and simplifying system EMI filtering. An adjustable input under-voltage lockout (UVLO) with hysteresis provides flexibility in setting start/stop voltages based upon supply voltage conditions. The TPS92512 includes cycle-by-cycle overcurrent protection and thermal shutdown protection. It is available in a 10-pin HVSSOP PowerPAD package.

Applications

• Street Lighting
• Emergency/Exit Lighting
• General Industrial and Commercial Illumination
• Retail Lighting
• Appliance Lighting
• Transportation Lighting
• Channel Letters
• Light Bars

Key features

• Integrated 200-mΩ High-Side MOSFET
• 4.5-V to 42-V Input Voltage Range (4.5 V to 60 V for the TPS92512HV)
• 0 V to 300 mV Adjustable Voltage Reference
• ±5% LED Current Accuracy
• 100 kHz to 2-MHz Switching Frequency Range
• Dedicated PWM Dimming Input
• Adjustable Undervoltage-Lock-Out
• Overcurrent Protection
• Overtemperature Protection
• MSOP-10 Package with PowerPAD
