TIDatasheet (PDF)

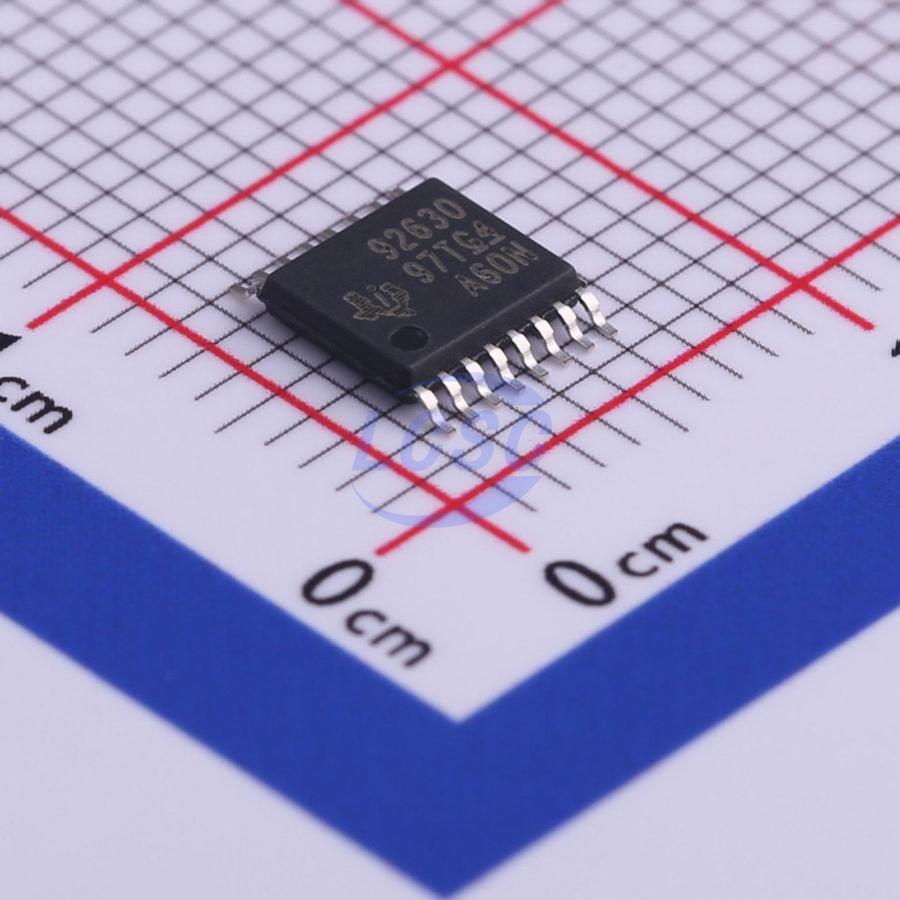

TPS92630QPWPRQ1
3 150mA 5V~40V HTSSOP-16-EP LED Drivers RoHS
HTSSOP-16-EPROHS3 CompliantActive
Three-Channel Linear LED Driver With Analog and PWM Dimming
- Manufacturer
- TI
- Manufacturer part #
- TPS92630QPWPRQ1
- Store part #
- C485540
- Package / case
- HTSSOP-16-EP
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,892 in stock
#C485540
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹117.07 | ₹117.07 |
| 10+ | ₹93.84 | ₹938.40 |
| 30+ | ₹82.11 | ₹2,463.30 |
| 100+ | ₹70.60 | ₹7,060.00 |
| 500+ | ₹63.65 | ₹31,825.00 |
| 1,000+ | ₹60.17 | ₹60,170.00 |
1 × ₹117.07
₹117.07
excl. GST
₹138.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TPS92630QPWPRQ1
₹117.07 for 1 + GST
Specifications
- Dimming
- Analog;PWM
- Number of Channels
- 3
- Switch tube (built-in/external)
- Built-in
- Output Current
- 150mA
- Operating Temperature
- -40℃~+150℃
- Features
- Short Circuit Protection;LED open-circuit protection;Over-Temperature Protection (OTP)
- Voltage - Input(DC)
- 5V~40V
- Constant Current Accuracy
- 1.5%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.101 g
Overview
The TPS92630-Q1 device is a three-channel linear LED driver with analog and PWM dimming control. Its full-diagnostic and built-in protection capabilities make it a suitable choice for variable-intensity LED lighting applications up to the medium-power range.
Applications
- Automotive LED Lighting Applications, Such As:
- Daytime Running Light
- Position Light
- Fog Light
- Rear Light
- Stop or Taillight
- Interior Lighting
Key features
- Qualified for Automotive Applications AEC-Q100 Qualified With the Following Results:
- Device Temperature Grade 1: -40°C to 125°C Ambient Operating Temperature Range
- Device HBM ESD Classification Level H2
- Device CDM ESD Classification Level C3B
- 3-Ch. LED Driver With Analog and PWM Dimming
- Wide Input-Voltage Range: 5 V–40 V
- Adjustable Constant Output Current Set by Reference Resistor
- Max. Current: 150 mA per Channel
- Max. Current: 450 mA in Parallel Operation Mode
- Accuracy: ±1.5% per Channel When I(IOUTx) > 30 mA
- Accuracy: ±2.5% per Device When I(IOUTx) > 30 mA
- Parallel Outputs for Higher Current Using Multiple ICs or Multiple Channels of a Single IC
- Low Dropout Voltage
- Max. Dropout: 400 mV at 60 mA per Channel
- Max. Dropout: 0.9 V at 150 mA per Channel
- Independent PWM Dimming per Channel
- Open and Shorted LED Detection With Deglitch Timer
- LED-String Voltage Feedback per Channel for Single-LED Short Detection
- Separate Fault Pin for Single-LED Short Failure
- Fault Pin for Open, Short, and Thermal Shutdown Failure Reporting, Allowing Parallel Bus Connection up to 15 Devices
- Device Accommodates a Slow Input-Voltage dV/dt (0.5 V/min) With No Issues
- Operating Junction Temperature Range -40°C to 150°C
- Package: 16-Pin Thermally Enhanced PWP Package (HTSSOP)
