TECH PUBLIC

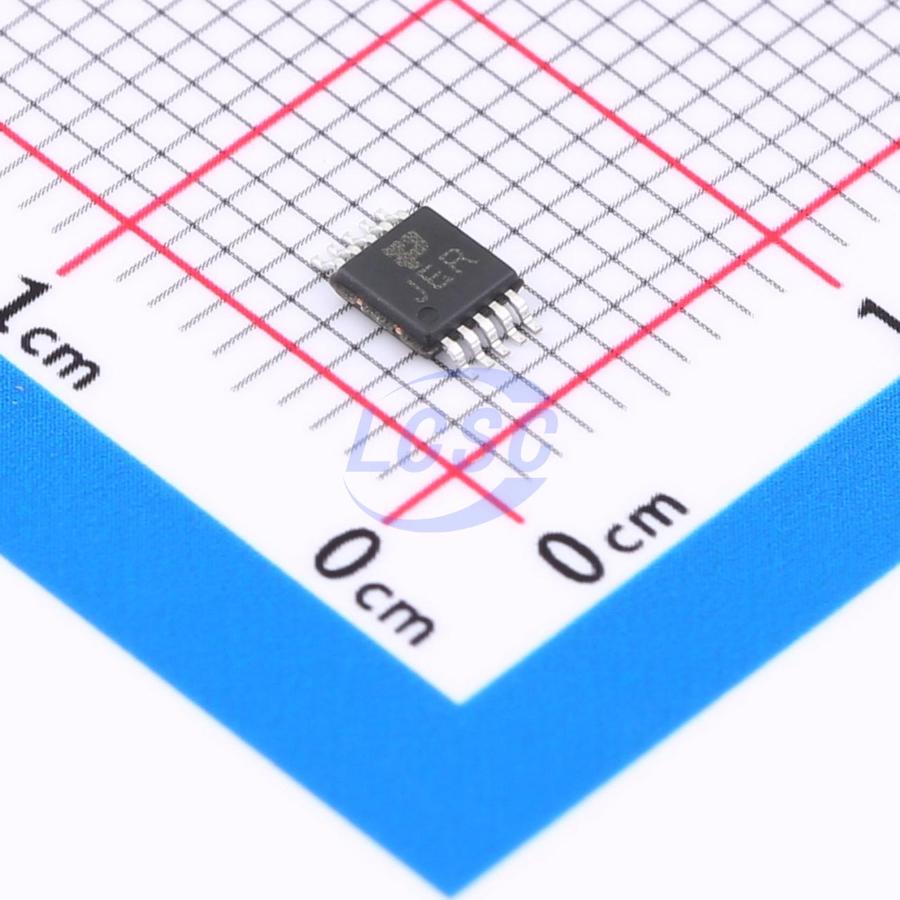

TS5A23159DGSR-TP

IC SWITCH 2:1 1.8Ω MSOP-10L

MSOP-10LRoHSActive

Dual SPDT Analog Switch, 2:1 Multiplexer/1:2 Demultiplexer

Manufacturer: TECH PUBLIC
Manufacturer part #: TS5A23159DGSR-TP
Store part #: C48543274
Package / case: MSOP-10L
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,260 in stock

#C48543274

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹51.97	₹259.85
50+	₹41.49	₹2,074.50
150+	₹36.99	₹5,548.50
500+	₹31.39	₹15,695.00
2,500+	₹28.89	₹72,225.00
4,000+	₹27.40	₹1,09,600.00

Quantity (min 5, multiples of 5)

5 × ₹51.97

₹259.85

excl. GST

₹306.62 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

TS5A23159DGSR-TP

₹259.85 for 5 + GST

Specifications

Features: Power-off isolation
Operating Temperature: -40℃~+85℃
Ron: 1.8Ω
Number of Channels: 2
Voltage - Supply: 1.5V~5.5V
Con: 7pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.089 g

Overview

This device is a dual SPDT low on-resistance analog switch that operates from a single supply voltage of 1.5V to 5.5V. It features low on-resistance and excellent on-resistance matching, and employs a break-before-make mechanism to prevent signal distortion during channel switching. The device achieves true isolation — even when the COMx pin voltage exceeds VCC, only minimal current flows back to the supply.

Applications

Mobile phones, tablets, and laptops
USB Type-C microphone/ground switching
Audio, video, UART, USB2.0 signal and power routing
Telecom signal switching
Sample-and-hold systems
Signal gating, multiplexer/demultiplexer

Key features

Low on-resistance: Ron = 1.5Ω (at COMx = 50)
1.8V logic-compatible control pins
High off-state isolation: -100dB @ 100KHz
COMx pin voltage can cover VCC, enabling true isolation even during power failure
Low channel-to-channel crosstalk: -97dB @ 100KHz
High bandwidth (-3dB @ 700MHz) for USB2.0 high-speed signal routing
Low quiescent current (< 2 μA) with wide supply voltage range (1.5V ~ 5.5V)
Compact package: MSOP-10L
