3PEAK

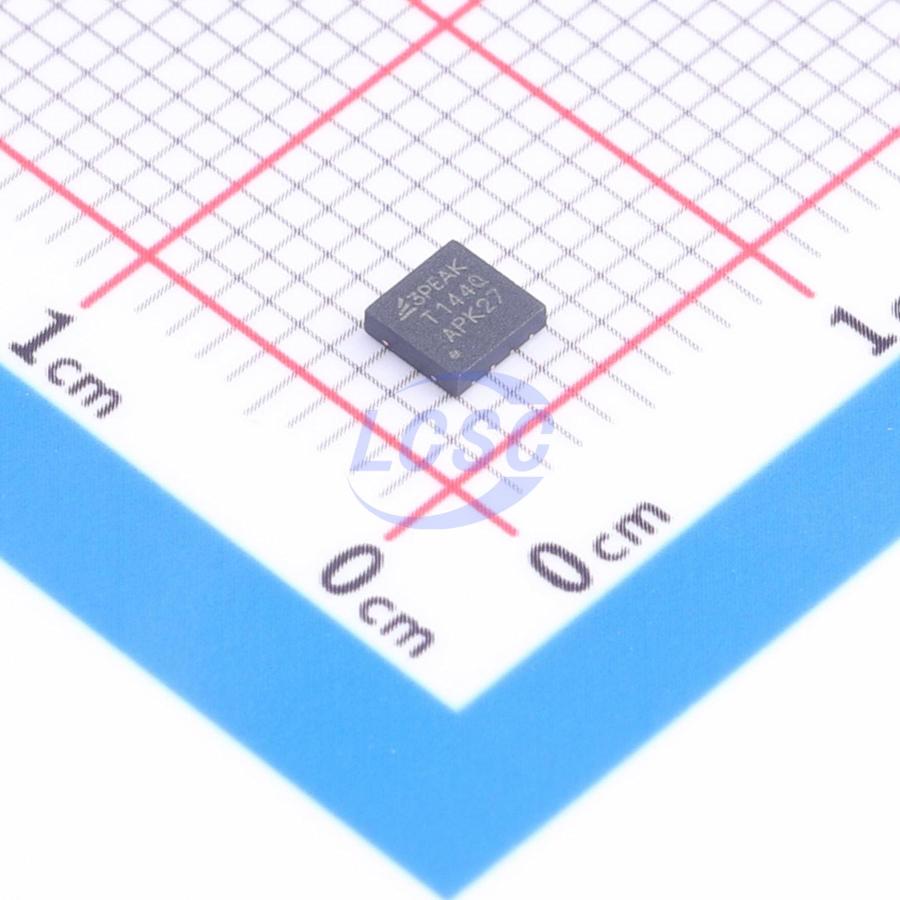

TPT1044Q-DFCR-S

DFN-8(3x3) Drivers, Receivers, Transceivers RoHS

DFN-8(3x3)ROHS3 CompliantActive

Manufacturer: 3PEAK
Manufacturer part #: TPT1044Q-DFCR-S
Store part #: C52260912
Package / case: DFN-8(3x3)
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,496 in stock

#C52260912

Stock & price checked 24 h ago

Quantity	Unit price	Pack price
1+	₹72.86	₹72.86
10+	₹56.16	₹561.60
30+	₹49.00	₹1,470.00
100+	₹39.90	₹3,990.00
500+	₹36.00	₹18,000.00
1,000+	₹33.39	₹33,390.00

Quantity (min 1)

1 × ₹72.86

₹72.86

excl. GST

₹85.97 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

TPT1044Q-DFCR-S

₹72.86 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Low-power mode;Wake-up function;Bus fault protection;TXD dominant timeout;Thermal shutdown protection;Undervoltage Protection;ESD protection;Enable;Integrated level shifting

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.071 g

Overview

TPT1044VQ and TPT1044Q are CAN transceivers compliant with ISO11898-2:2024 and SAEJ2284-1 through SAEJ2284-5 high-speed CAN physical layer standards. These devices are designed for CAN FD networks at data rates up to 5 Mbps, with enhanced timing margins in long-distance and high-load networks, and support data rates up to 8 Mbps in simple CAN bus networks. System designs can be optimized through excellent EMC and ESD performance. The TPT1044VQ features a secondary power supply input VIO pin for I/O level shifting, directly supporting 1.8V, 2.5V, 3.3V, and 5V MCU logic levels. This device family offers a low-current standby mode and supports wake-up from the CAN bus via the wake-up pattern defined in ISO11898-2:2024. These devices are designed with bus fault protection from -45V to +45V, TXD dominant timeout, and overtemperature shutdown. In addition, all devices include a power-off ideal passive behavior fail-safe feature to enhance network robustness. The TPT1044VQ and TPT1044Q are available in SOP8 and DFN3X3-8 packages and are AEC-Q100 qualified for automotive applications.

Applications

Body Electronics/Lighting
Powertrain/Chassis
Infotainment/Instrument Cluster
ADAS/Safety

Key features

Compliant with ISO 11898-2:2024 and SAE J2284-1 to SAE J2284-5 physical layer standards
Supports Classic CAN and optimized CAN FD with data rates up to 8 Mbps
Short and symmetrical propagation delays and fast loop delay for enhanced timing margin
5V supply voltage with I/O voltage range supporting 1.7V to 5.5V MCU interface
Ultra-low current standby mode with bus wake-up capability
Ideal passive behavior on CAN bus when powered down
Glitch-free on CAN bus and RXD during power-up/power-down
Bus HBM ESD protection up to 15kV with IEC 61000-4-2 ESD protection
Bus fault protection: ±45V
VCC and VIO undervoltage protection
TXD dominant timeout and bus dominant timeout
Thermal shutdown protection
Available in SOP8 package and leadless DFN3X3-8 package with improved AOI capability
AEC-Q100 qualified for automotive applications, Grade 1
