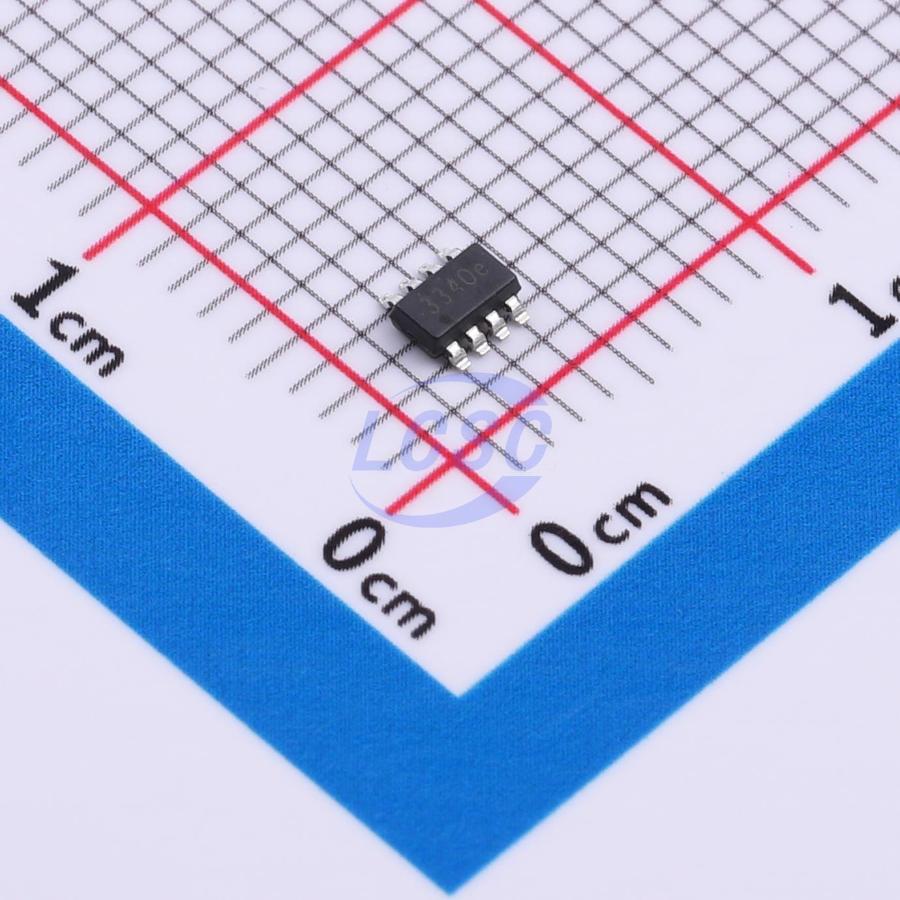

TPT1334-T8TR

This device is a 3.3V high-speed CAN FD transceiver compliant with the ISO 11898-2:2016 physical layer standard, supporting data rates up to 5 Mbps. It is designed to provide reliable communication under harsh electrical environments and bus fault conditions, suitable for applications such as automotive networking and industrial automation. The transceiver offers multiple operating modes, including Normal mode, Standby mode (with wake-up capability), Silent mode, and Shutdown mode, and integrates comprehensive protection features such as IEC 61000-4-2 ESD protection exceeding ±6 kV, ±45 V bus fault protection, VCC undervoltage protection, TXD dominant timeout, and thermal shutdown protection. Its short propagation delay and fast loop time ensure high performance. The device is available in SOP8 and SOT-23-8 packages.

Applications

• Field industrial automation
• Sensors
• Drive systems
• Building
• Security control systems

Key features

• 3.3V power supply, I/O voltage range supports 2.8V to 5.5V MCU interface
• Compatible with ISO 11898-2:2016 physical layer standard
• Supports CAN FD, data rate up to 5 Mbps
• Short propagation delay, fast loop time
• Common-mode input voltage range: ±12 V
• Operating modes: Normal mode, Standby mode with wake-up function (TPT1334), Silent mode (TPT1330, TPT1337), Shutdown mode (TPT1330, TPT1334)
• Protection features: IEC 61000-4-2 ESD protection exceeding ±6 kV, ±45 V bus fault protection, VCC undervoltage protection, TXD dominant timeout and bus dominant timeout, thermal shutdown protection
• Available in SOP8 and SOT-23-8 packages
