3PEAKDatasheet (PDF)

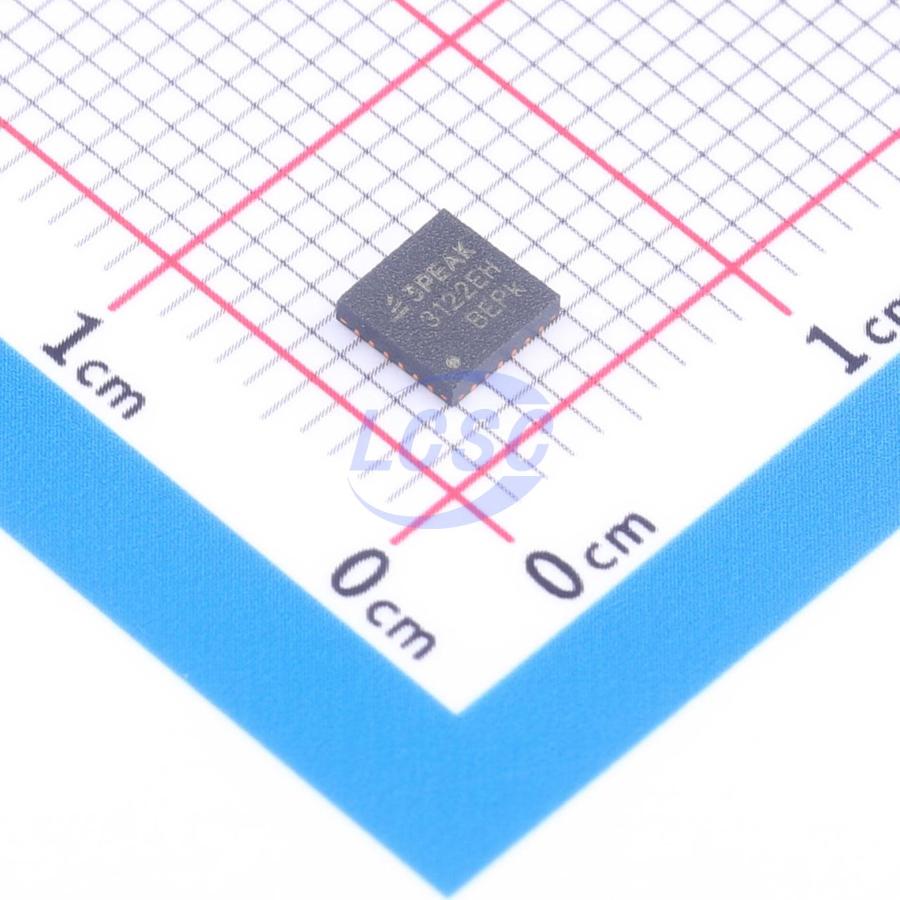

TPT3122EH-QF8R
Transceiver 3V~5.5V 1Mbps QFN-24L(4x4) Drivers, Receivers, Transceivers RoHS
QFN-24L(4x4)ROHS3 CompliantActive
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPT3122EH-QF8R
- Store part #
- C19188736
- Package / case
- QFN-24L(4x4)
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,683 in stock
#C19188736
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹136.60 | ₹136.60 |
| 10+ | ₹107.98 | ₹1,079.80 |
| 30+ | ₹93.46 | ₹2,803.80 |
| 100+ | ₹79.37 | ₹7,937.00 |
| 500+ | ₹70.90 | ₹35,450.00 |
| 1,000+ | ₹66.35 | ₹66,350.00 |
1 × ₹136.60
₹136.60
excl. GST
₹161.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPT3122EH-QF8R
₹136.60 for 1 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 1Mbps
- Operating Temperature
- -40℃~+125℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Features
- Wake-up function
- Number of Receivers
- 2
- Quiescent Supply Current
- 1mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.518 g
Overview
The TPT3122EH features IEC61000-4-2 ESD protection, supports 3.0V to 5.5V supply voltage, and provides a 1.65V to 5.5V logic interface compliant with RS-232 standards. Each receiver converts TIA/RS-232 inputs to TTL/CMOS levels. The device supports data signaling rates up to 1000 kbps. The TPT3122EH is available in a 24-pin QFN 4×4 package with an operating temperature range of -40°C to 125°C. The auto-online feature enables the device to automatically "wake up" from shutdown when an RS-232 cable is connected and the remote device is powered on.
Applications
- Battery-powered devices
- Industrial HMI
- Laptops, computers
- Printers
Key features
- Compliant with TIA/EIA-232-F and ITU V.28 standards
- Supply range: single supply, +3.0V to 5.5V
- Logic interface VL pin voltage: 1.65V to 5.5V
- Two drivers and two receivers
- Maximum data rate up to 1Mbps
- Only four external 0.1μF capacitors required
- ESD protection on RS-232 bus pins: ±15kV (HBM)
- ±12kV (IEC61000-4-2, contact discharge)
- ±15kV (IEC61000-4-2, air gap discharge)
