3PEAKDatasheet (PDF)

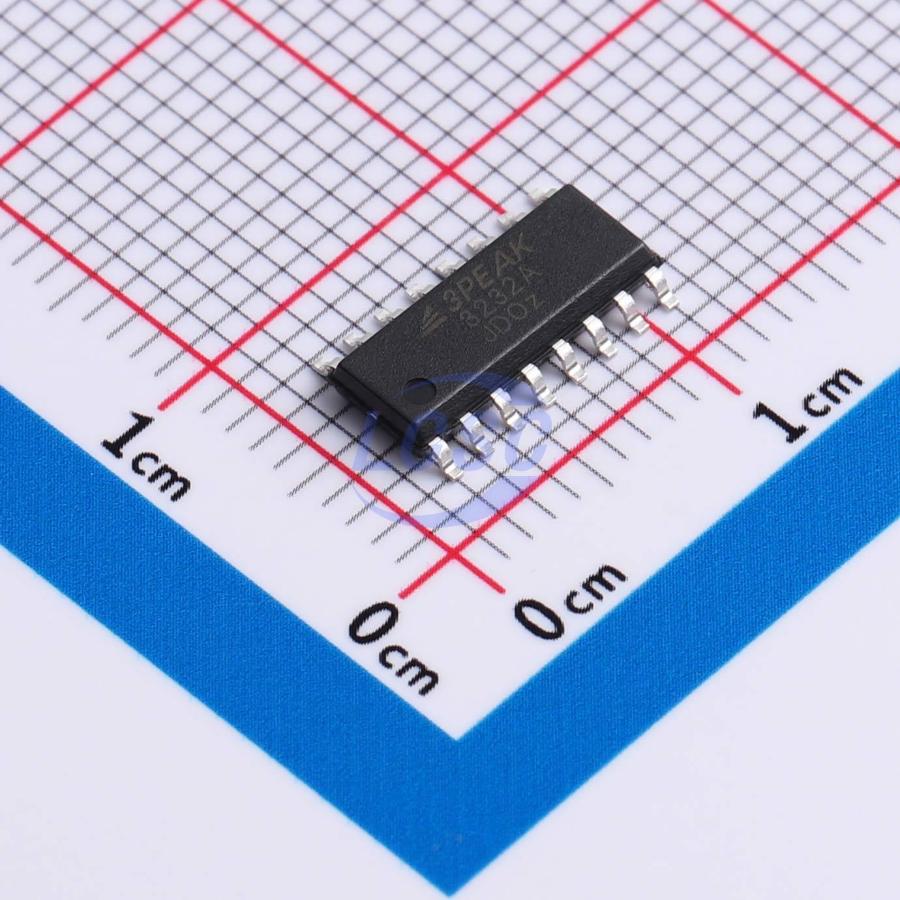

TPT3232A-SO3R
Transceiver 3V~5.5V 250Kbps SOP-16 Drivers, Receivers, Transceivers RoHS
SOP-16ROHS CompliantActive
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPT3232A-SO3R
- Store part #
- C38797475
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,295 in stock
#C38797475
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹53.49 | ₹267.45 |
| 50+ | ₹41.15 | ₹2,057.50 |
| 150+ | ₹35.96 | ₹5,394.00 |
| 500+ | ₹29.34 | ₹14,670.00 |
| 2,500+ | ₹26.30 | ₹65,750.00 |
| 5,000+ | ₹24.51 | ₹1,22,550.00 |
5 × ₹53.49
₹267.45
excl. GST
₹315.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TPT3232A-SO3R
₹267.45 for 5 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 250Kbps
- Operating Temperature
- -40℃~+125℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 0.3mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.188 g
Overview
TPT3232A is a transceiver compliant with IEC61000 ESD protection standards, operating at 3.0 V to 5.5 V, and meets the RS-232 standard for balanced communication. Each receiver converts TIA/RS-232 inputs to TTL/CMOS levels. The device withstands ±25 V receiver input voltages and operates at a data signaling rate of 250 kbps. TPT3232A is available in SOP16, SSOP16, and TSSOP16 packages, with an operating temperature range of -40°C to 125°C.
Applications
- Battery-powered devices
- Industrial HMI
- Laptops and computers
- Printers
Key features
- Meets TIA/EIA-232-F and ITU V.28 standards
- Wide supply voltage range: single supply +3 V to +5.5 V
- Two drivers and two receivers
- Data rate: 250 kbps
- Only four external 0.1-μF capacitors required
- ESD protection on RS-232 bus pins
- ±15 kV (Human Body Model)
- ±12 kV (IEC61000-4-2, contact discharge)
- ±15 kV (IEC61000-4-2, air-gap discharge)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPT3232E-SO3R#C28871863PEAK · SOP-16 | 3PEAK | SOP-16 | 22,200 | ₹51.40 · 22,200 in stock | View |
