3PEAK

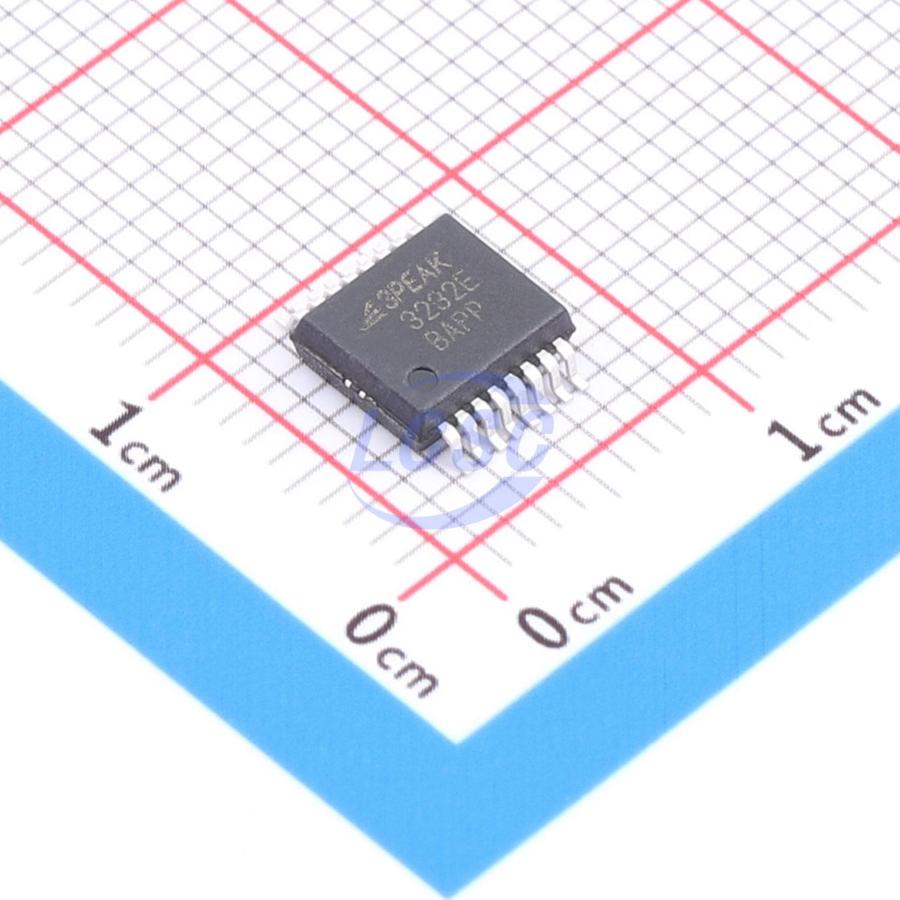

TPT3232E-SS3R

Transceiver 3V~5.5V 250Kbps SSOP-16 Drivers, Receivers, Transceivers

SSOP-16RoHSActive

3V to 5.5V, 250kbps RS-232 transceiver

Manufacturer: 3PEAK
Manufacturer part #: TPT3232E-SS3R
Store part #: C7501780
Package / case: SSOP-16
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,205 in stock

#C7501780

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹103.21	₹103.21
10+	₹79.37	₹793.70
30+	₹69.17	₹2,075.10
100+	₹56.37	₹5,637.00
500+	₹50.74	₹25,370.00
1,000+	₹47.27	₹47,270.00

Quantity (min 1)

1 × ₹103.21

₹103.21

excl. GST

₹121.79 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

TPT3232E-SS3R

₹103.21 for 1 + GST

Specifications

Type: Transceiver
Voltage - Supply: 3V~5.5V
Data Rate: 250Kbps
Operating Temperature: -40℃~+125℃
ESD Protect: ±15kV
charge pump: Yes
Number of Drivers: 2
Number of Receivers: 2
Quiescent Supply Current: 1.2mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.214 g

Overview

The TPT3232E is IEC61000 ESD protected, 3.0V to 5.5V powered transceivers that meet the RS-232 standards for balanced communication. Each receiver converts TIA/RS-232 inputs to TTL/CMOS levels. The devices have a typical threshold of 1.25V, a typical hysteresis of 0.3V, and can accept ±15V inputs. The device operates at data signaling rates up to 250 kbps. The TPT3232E is available in SOP16, SSOP16 and TSSOP16 package, and is characterized from -40°C to 125°C.

Applications

Battery-Powered Equipment
Industry Human Machine Interface
Notebook, Computers
Printers

Key features

Meets the Requirements of TIA/EIA- 232-F and ITU V.28 Standards
Wide Power Supply Range: Single +3V to +5.5V
Two Drivers and Two Receivers
Operates up to 250 kbps
Typically requires Four External 0.1μF Cap
ESD Protection for RS-232 Bus Pins ± 15 kV (HBM) ± 12 kV (IEC61000-4-2, Contact Discharge) ± 15 kV (IEC61000-4-2, Air-Gap Discharge)
