TECH PUBLICDatasheet (PDF)

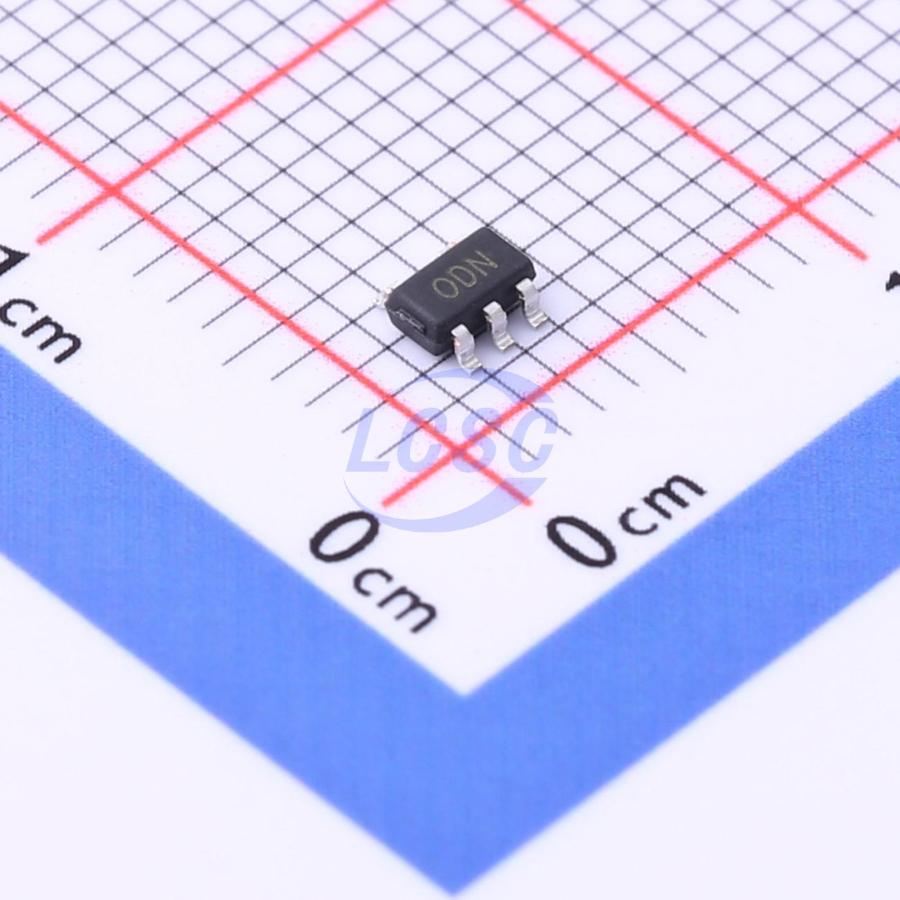

TPTLV70033DDCR
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
20uA IQ,300mA Low-Dropout Linear Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPTLV70033DDCR
- Store part #
- C2937039
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,820 in stock
#C2937039
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.91 | ₹64.55 |
| 50+ | ₹11.54 | ₹577.00 |
| 150+ | ₹10.84 | ₹1,626.00 |
| 500+ | ₹10.32 | ₹5,160.00 |
| 3,000+ | ₹9.19 | ₹27,570.00 |
| 6,000+ | ₹8.98 | ₹53,880.00 |
5 × ₹12.91
₹64.55
excl. GST
₹76.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPTLV70033DDCR
₹64.55 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 20uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
This production is a low-dropout (LDO) voltage regulator with enable function that operates from a 1.2V to 5.5V supply. It provides up to 300mA of output current in miniaturized packaging. The feature of 20μA low quiescent current and 0.5μA shutdown current are ideal for the battery application with long service life. The other features include current limit function, over temperature protection and output discharge function.
Applications
- CDM/GSM mobile phone
- PDAs/MP3
- Audio Video equipment
Key features
- Input Voltage Range: 1.2V to 5.5V
- 20μA Ground Current at no Load
- PSRR = 75dB at 1kHz ±1.5% Output Accuracy
- Low (0.1μA) Shutdown Current
- Dropout Voltage: 0.17V at 300mA when Vour ≥ 3V
- Support Fixed Output Voltage 0.8V, 1V, 1.05V, 1.1V, 1.2V, 1.25V, 1.3V, 1.5V, 1.8V, 1.85V, 2V, 2.5V, 2.8V, 2.85V, 3V, 3.1V, 3.3V, 3.45V
- Current Limit Protection
- Over Temperature Protection
- Output Active Discharge Function
- SOT23 - 5 Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPTLV74333PDBVR#C3021096TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,155 | ₹11.35 · 2,155 in stock | View |
 | TPTLV73333PDBVR#C2937043TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,885 | ₹10.33 · 3,885 in stock | View |
 | TPS79933DDCR-TP#C5370989TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,250 | ₹14.95 · 1,250 in stock | View |
 | TPLP5907MFX-3.3#C5370990TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,94,095 | ₹13.23 · 1,94,095 in stock | View |
 | TPTLV70330DBVR#C23378023TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,945 | ₹15.51 · 2,945 in stock | View |
