TECH PUBLICDatasheet (PDF)

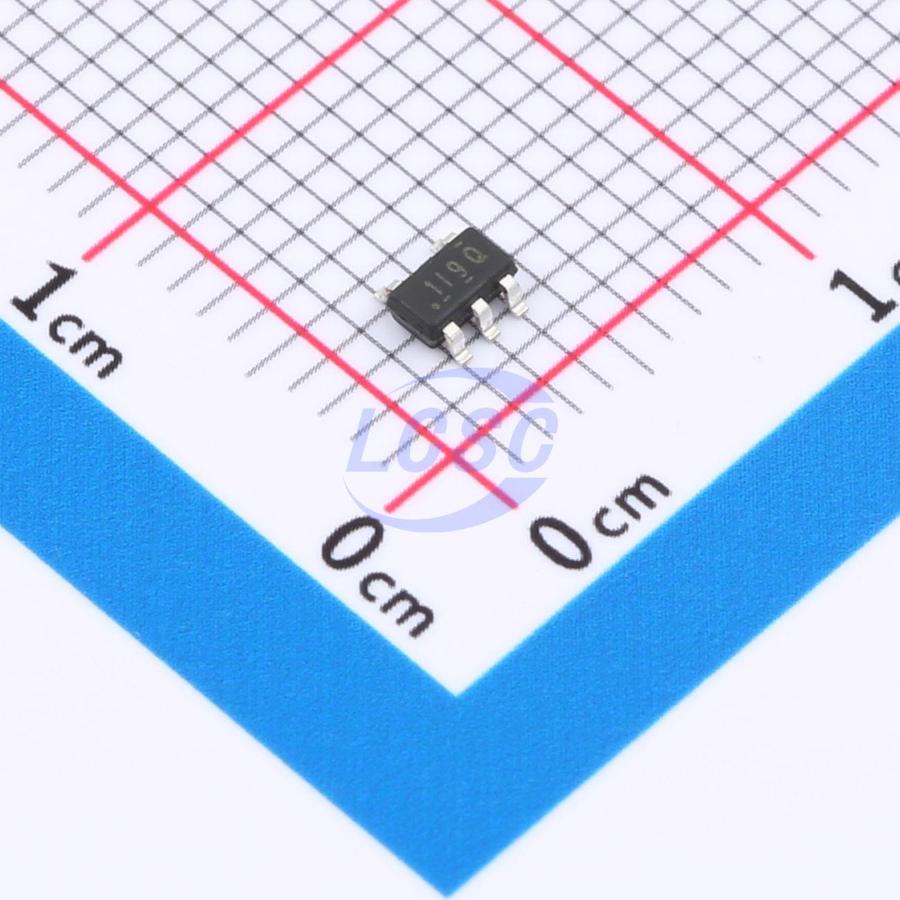

TPTLV70330DBVR
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5
SOT-23-5RoHSActive
300mA Higt PSRR Voltage Reaulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPTLV70330DBVR
- Store part #
- C23378023
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,945 in stock
#C23378023
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.51 | ₹77.55 |
| 50+ | ₹12.26 | ₹613.00 |
| 150+ | ₹10.64 | ₹1,596.00 |
| 500+ | ₹9.42 | ₹4,710.00 |
| 3,000+ | ₹8.44 | ₹25,320.00 |
| 6,000+ | ₹7.95 | ₹47,700.00 |
5 × ₹15.51
₹77.55
excl. GST
₹91.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPTLV70330DBVR
₹77.55 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 20uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
Applications
- Portable, Battery Powered Equipment
- Low Power Microcontrollers
- Laptop, Palmtops and PDAs
- Wireless Communication Equipment
- Audio/Video Equipment
Key features
- 20μA Ground Current at no Load
- ±2% Output Accuracy
- 300mA Output Current
- 10nA Disable Current (by option)
- Wide Operating Input Voltage Range: 1.2V to 5.5V
- Dropout Voltage: 0.18V at 300mA (Vout = 3.3V)
- Support Fixed Output Voltage 0.8V, 0.9V, 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
- Adjustable Output Voltage Available by Specific Application
- Stable with Ceramic or Tantalum Capacitor
- Current Limit Protection
- Over-Temperature Protection
- SOT-23-5 Packages Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPTLV70333DBVR#C7202999TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,005 | ₹10.95 · 3,005 in stock | View |
 | TPLP3985IM5X-3.3#C4355037TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,965 | ₹20.20 · 2,965 in stock | View |
 | TP2803E33-5#C2987076TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,350 | ₹14.18 · 2,350 in stock | View |
 | TP2036-3.3YN5#C2987078TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,090 | ₹13.59 · 3,090 in stock | View |
 | MIC5504-3.3YM5#C41348078TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,760 | ₹16.60 · 2,760 in stock | View |
