TECH PUBLICDatasheet (PDF)

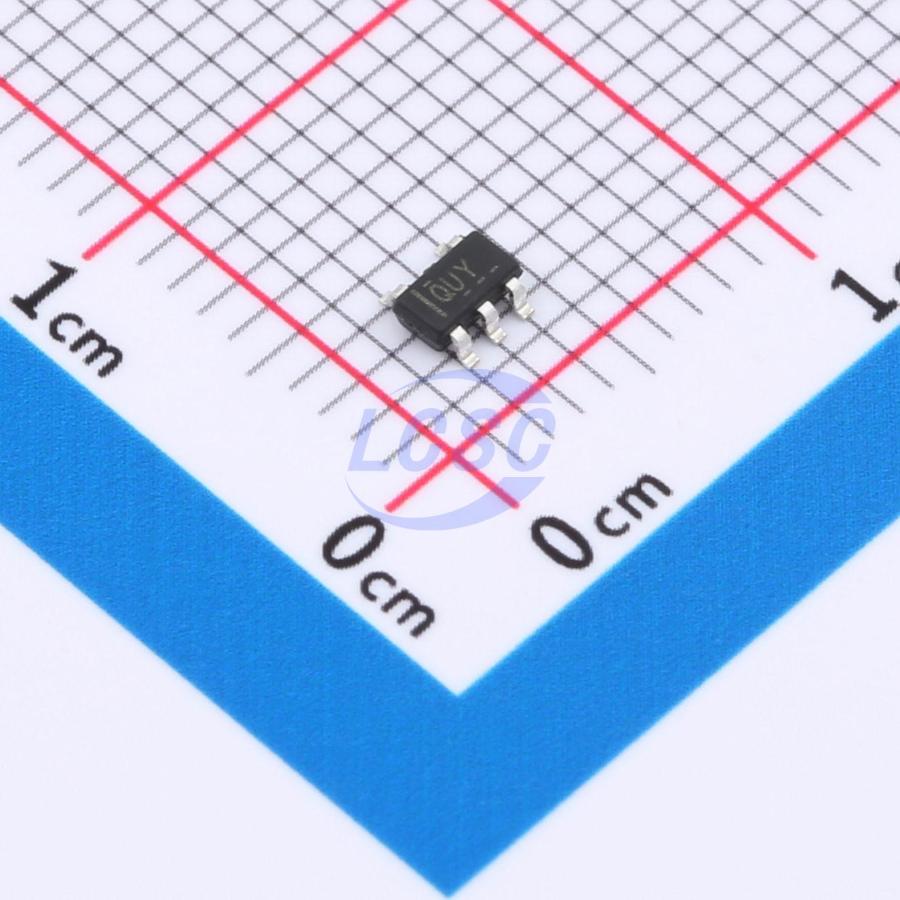

TPTLV70230DBVR
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5
SOT-23-5RoHSActive
300mA, high PSRR voltage regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPTLV70230DBVR
- Store part #
- C23378022
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,950 in stock
#C23378022
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.51 | ₹77.55 |
| 50+ | ₹12.26 | ₹613.00 |
| 150+ | ₹10.64 | ₹1,596.00 |
| 500+ | ₹9.42 | ₹4,710.00 |
| 3,000+ | ₹8.44 | ₹25,320.00 |
| 6,000+ | ₹7.95 | ₹47,700.00 |
5 × ₹15.51
₹77.55
excl. GST
₹91.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPTLV70230DBVR
₹77.55 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 10uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
TPTLV702 series are a group of low-dropout (LDO) voltage regulators offering the benefits of wide input voltage range from 1.2V to 5.5V, low dropout voltage, low power consumption, and miniaturized packaging. Quiescent current of only 10μA makes these devices ideal for powering the battery-powered, always-on systems that require very little idle-state power dissipation to a longer service life.
Applications
- Portable, Battery Powered Equipment
- Low Power Microcontrollers
- Laptop, Palmtops and PDAs
- Wireless Communication Equipment
- Audio Video Equipment
- Car Navigation Systems
Key features
- 10μA Ground Current at no Load
- ±2% Output Accuracy
- 300mA Output Current
- 10nA Disable Current (by option)
- Wide Operating Input Voltage Range: 1.2V to 5.5V
- Dropout Voltage: 0.18V at 300mA/VouT 3.3V
- Support Fixed Output Voltage 1.2V, 1.5V, 1.6V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
- Stable with Ceramic or Tantalum Capacitor
- Current Limit Protection
- Over Temperature Protection
- SOT23 - 5
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPTLV70030DDCR#C23378021TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,030 | ₹15.57 · 2,030 in stock | View |
 | TPAP2112K-3.0TRG1#C23380903TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,655 | ₹9.25 · 3,655 in stock | View |
 | TPRT9080-30GJ5#C23380925TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 975 | ₹12.93 · 975 in stock | View |
 | XC6219B302MR#C18212682TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 390 | ₹7.55 · 390 in stock | View |
 | TPXC6219B302MR#C2858723TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,820 | ₹8.71 · 2,820 in stock | View |
