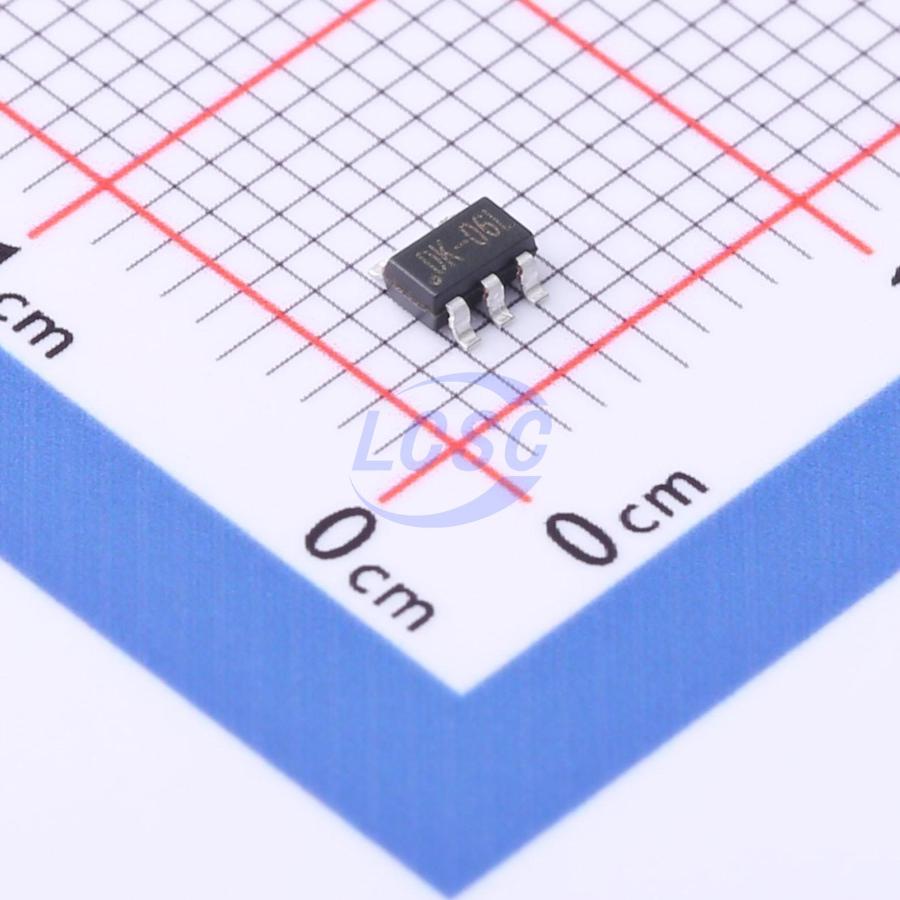

TPXC6219B302MR
3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
300mA High PSRR Voltage Regulators
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPXC6219B302MR
- Store part #
- C2858723
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,820 in stock
#C2858723
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.71 | ₹87.10 |
| 100+ | ₹6.99 | ₹699.00 |
| 300+ | ₹6.13 | ₹1,839.00 |
| 3,000+ | ₹5.00 | ₹15,000.00 |
| 6,000+ | ₹4.48 | ₹26,880.00 |
| 9,000+ | ₹4.22 | ₹37,980.00 |
10 × ₹8.71
₹87.10
excl. GST
₹102.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPXC6219B302MR
₹87.10 for 10 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 70uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Enable control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.038 g
Overview
TPXC6219 is a high performance 300mA LDO regulator offering extremely high PSRR and ultra - low dropout. Ideal for portable RF and wireless applications with demanding performance and space requirements. TPXC6219 is available in 5 pin SOT23 - 5 Package. The output standards of 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
Applications
- CDM/GSM mobile phone
- PDAS/MP3
- Audio/Video equipment
Key features
- Quiescent Current: 70uA
- PSRR: 70dB@1KHz
- <1uA current at shutdown mode
- Output current: 300mA(Typ.)
- SOT23 - 5 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPRT9193-30GB#C5246395TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,685 | ₹12.61 · 1,685 in stock | View |
 | WL2803E30#C41408121TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 155 | ₹7.22 · 155 in stock | View |
 | TPRT9013-30GB#C587159TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 15,620 | ₹10.44 · 15,620 in stock | View |
 | TP9001-30S5#C708749TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 245 | ₹5.03 · 245 in stock | View |
 | TP2028-3.0YN5G#C907844TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,050 | ₹9.29 · 3,050 in stock | View |
