TECH PUBLICDatasheet (PDF)

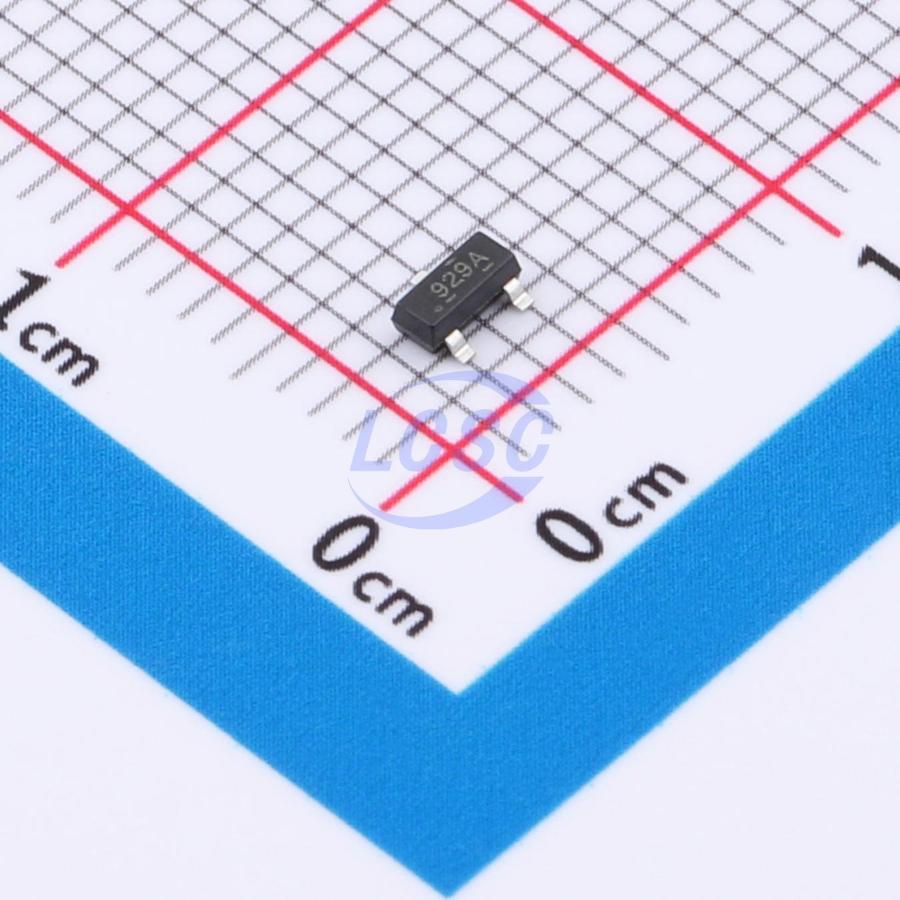

TPTLV809EA29DBZR
240ms Active Low 1V~5.5V 1 SOT-23 Supervisors
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPTLV809EA29DBZR
- Store part #
- C52817320
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,665 in stock
#C52817320
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.41 | ₹52.05 |
| 50+ | ₹8.20 | ₹410.00 |
| 150+ | ₹7.10 | ₹1,065.00 |
| 500+ | ₹6.28 | ₹3,140.00 |
| 3,000+ | ₹5.62 | ₹16,860.00 |
| 6,000+ | ₹5.29 | ₹31,740.00 |
5 × ₹10.41
₹52.05
excl. GST
₹61.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPTLV809EA29DBZR
₹52.05 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Reset Timeout
- 240ms
- output type
- Push-pull
- Reset Active Level
- Active Low
- standby current
- 3uA
- Voltage - Supply
- 1V~5.5V
- Threshold Voltage
- 2.93V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Applications
- Computers
- Embedded systems
- Battery-powered devices
- Smart instruments
- CPU and logic circuit reset
- Power failure detectors
- Automotive electronics
Key features
- Typical quiescent current: 3μA
- No external components required
- Vcc transient immunity
- Guaranteed correct logic output with Vcc as low as 1.0V
- Push-pull active-low reset output
- SOT23 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPCAT809STBI-GT3#C52098283TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,600 | ₹7.51 · 2,600 in stock | View |
 | IMP809SEUR-TP#C52817112TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 6,650 | ₹8.12 · 6,650 in stock | View |
 | MAX809SN293D3T1G-TP#C52817135TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,520 | ₹15.61 · 2,520 in stock | View |
 | MAX809STRG-TP#C52817138TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 370 | ₹10.41 · 370 in stock | View |
 | TPADM809SARTZ#C52817187TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,600 | ₹21.38 · 1,600 in stock | View |
