TECH PUBLICDatasheet (PDF)

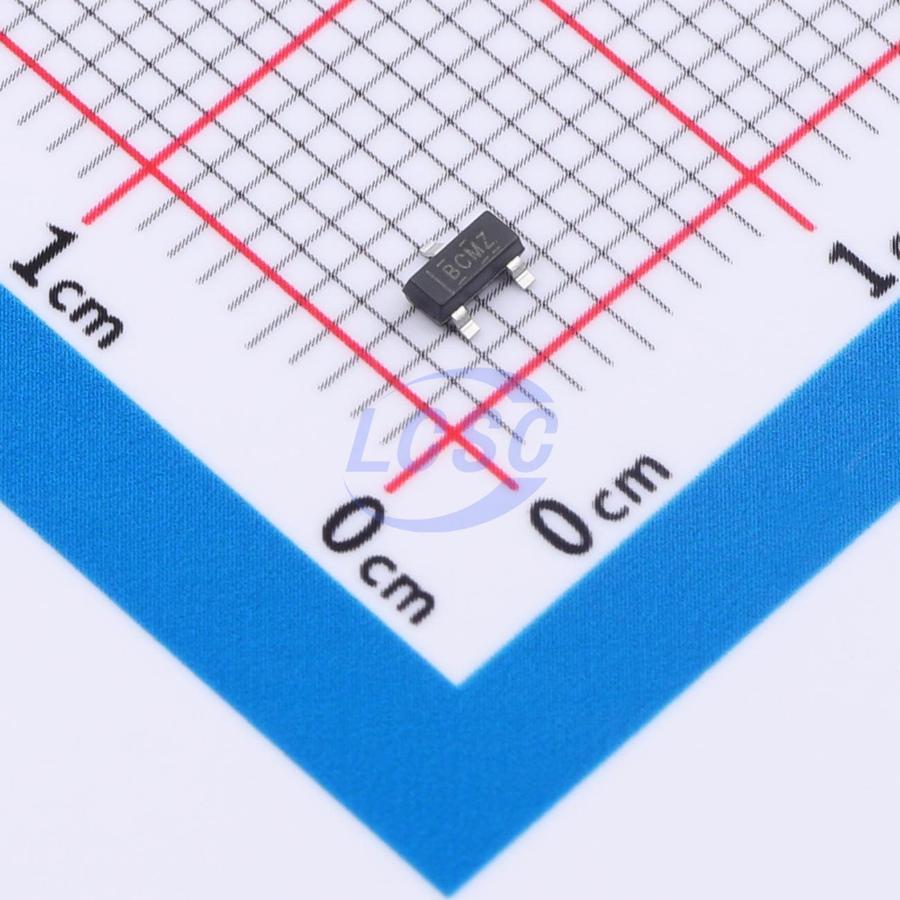

TPTLV809L30DBZR
360ms Active Low 1V~5.5V 1 SOT-23 Supervisors
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPTLV809L30DBZR
- Store part #
- C52817326
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C52817326
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.41 | ₹52.05 |
| 50+ | ₹8.20 | ₹410.00 |
| 150+ | ₹7.10 | ₹1,065.00 |
| 500+ | ₹6.28 | ₹3,140.00 |
| 3,000+ | ₹5.62 | ₹16,860.00 |
| 6,000+ | ₹5.29 | ₹31,740.00 |
5 × ₹10.41
₹52.05
excl. GST
₹61.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPTLV809L30DBZR
₹52.05 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- output type
- Push-pull
- Reset Timeout
- 360ms
- Reset Active Level
- Active Low
- standby current
- 3uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Applications
- Computers
- Embedded systems
- Battery-powered devices
- Smart instruments
- CPU and logic circuit reset
Key features
- Typical quiescent current: 3μA
- No external components required
- Vcc transient immunity
- Guaranteed correct logic output at Vcc=1.0V
- Push-pull active-low reset output
- SOT23 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPMCP112T-270E/TT#C50314375TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,165 | ₹13.42 · 1,165 in stock | View |
 | TPCAT809RTBI-GT3#C52098284TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,970 | ₹7.49 · 1,970 in stock | View |
 | IMP809REUR-TP#C52817111TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,610 | ₹8.12 · 2,610 in stock | View |
 | MAX809RTRG-TP#C52817134TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 885 | ₹10.41 · 885 in stock | View |
 | TPAPX809S-26SA#C52817199TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,000 | ₹7.81 · 3,000 in stock | View |
