TIDatasheet (PDF)

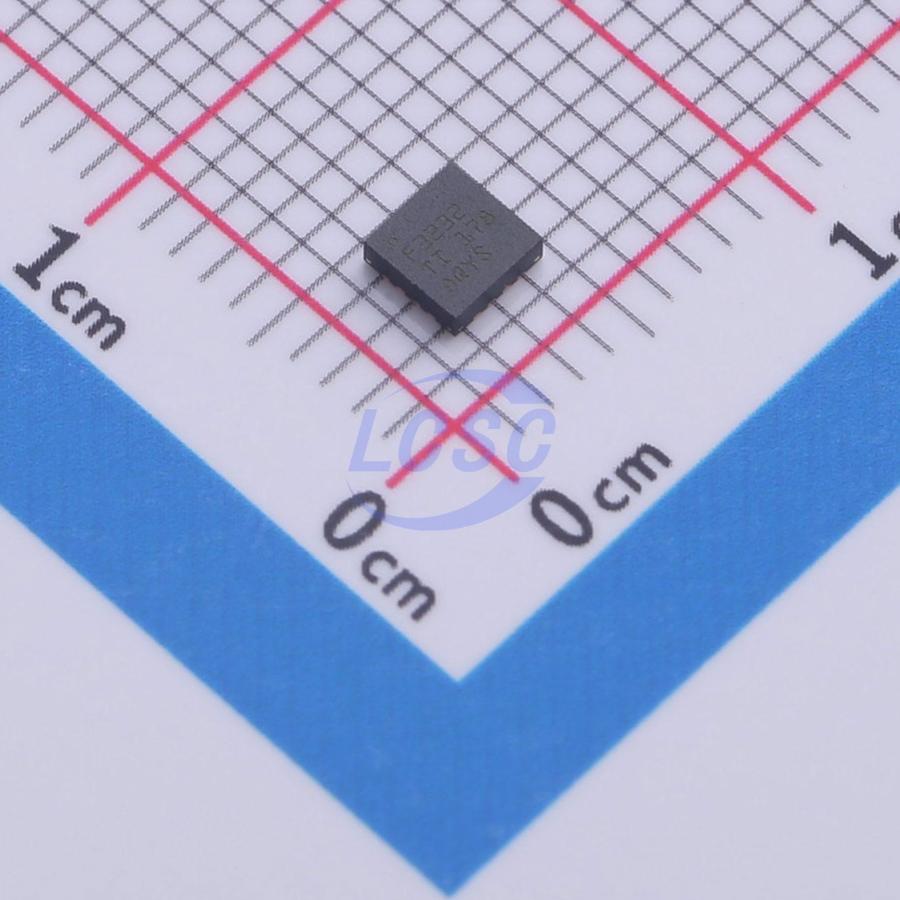

TRSF3232EIRGTR
Transceiver 1Mbps VQFN-16(3x3) Drivers, Receivers, Transceivers RoHS
VQFN-16(3x3)ROHS CompliantActive
- Manufacturer
- TI
- Manufacturer part #
- TRSF3232EIRGTR
- Store part #
- C3198087
- Package / case
- VQFN-16(3x3)
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,378 in stock
#C3198087
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹250.95 | ₹250.95 |
| 10+ | ₹225.03 | ₹2,250.30 |
| 30+ | ₹206.68 | ₹6,200.40 |
| 100+ | ₹190.05 | ₹19,005.00 |
| 500+ | ₹182.27 | ₹91,135.00 |
| 1,000+ | ₹179.03 | ₹1,79,030.00 |
1 × ₹250.95
₹250.95
excl. GST
₹296.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TRSF3232EIRGTR
₹250.95 for 1 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~3.6V;4.5V~5.5V
- Data Rate
- 1Mbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Features
- Short-Circuit Protection
- Number of Receivers
- 2
- Quiescent Supply Current
- 0.3mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.122 g
Overview
The TRSF3232E consists of two line drivers, two line receivers, and a dual charge-pump circuit, featuring pin-to-pin (serial port connection pins, including GND) ±15kV ESD protection. The device provides an electrical interface between asynchronous communication controllers and serial port connectors. The charge pump and four small external capacitors support operation from a single 3V to 5.5V supply. The TRSF3232E operates at data signaling rates up to 1Mbit/s, with driver output slew rates ranging from 14V/μs to 150V/μs.
Applications
- Industrial PC
- Wired networking
- Data center and enterprise computing
- Battery-powered systems
- PDA
- Notebook computers
- Handheld computers
- Handheld devices
Key features
- VCC supply voltage: 3V to 5.5V
- Data rate up to 1Mbit/s
- Low supply current: 300μA (typical)
- External capacitors: 4×0.1μF
- Accepts 5V logic inputs with 3.3V supply
- Latch-up performance exceeds 100mA per JESD 78 Class II
- ESD protection on RS-232 pins
- ±15kV Human Body Model (HBM)
- ±15kV IEC 61000-4-2 air-gap discharge
- ±8kV IEC 61000-4-2 contact discharge
- QFN (3mm×3mm) package — chip-scale plastic package equivalent, 85% smaller than SOIC-16
