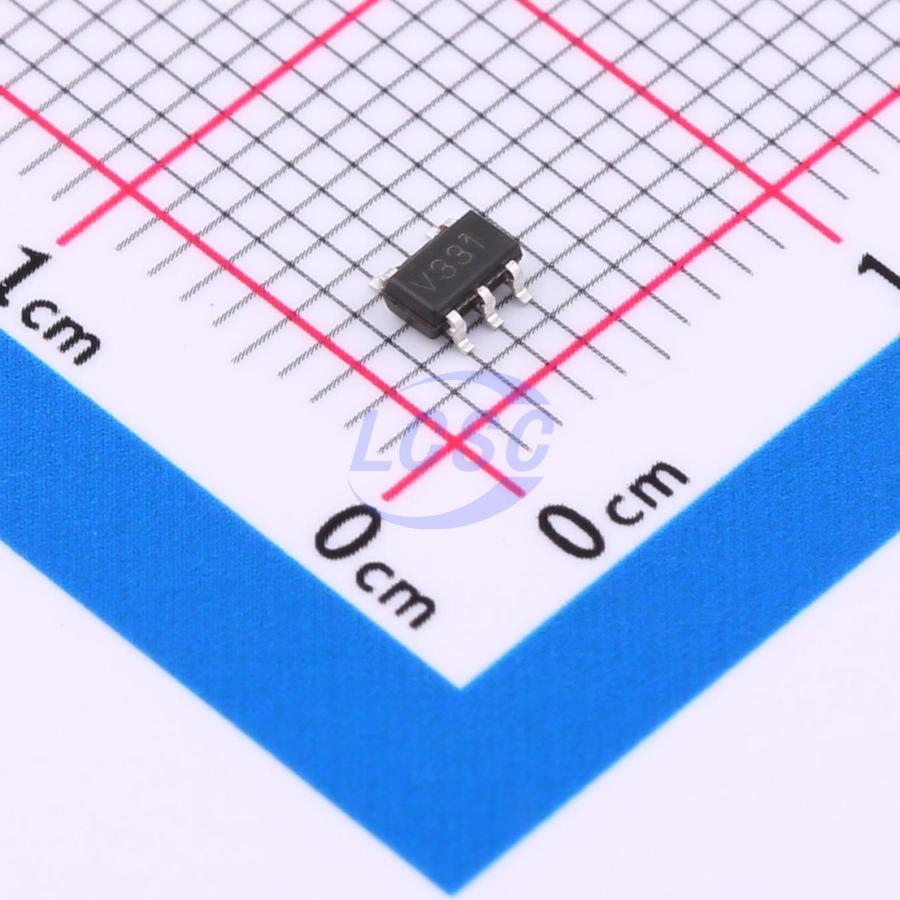

TS331ILT(MS)
800uV 2pA 1 SOT-23-5 Linear Comparators
TS331ILT(MS) Single Comparator: Low-Voltage Operation, Low Power Consumption, and Space-Saving Solution
- Manufacturer
- MSKSEMI
- Manufacturer part #
- TS331ILT(MS)
- Store part #
- C22399586
- Package / case
- SOT-23-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,675 in stock
#C22399586
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.72 | ₹138.60 |
| 50+ | ₹24.21 | ₹1,210.50 |
| 150+ | ₹22.70 | ₹3,405.00 |
| 500+ | ₹20.82 | ₹10,410.00 |
| 2,500+ | ₹19.99 | ₹49,975.00 |
| 5,000+ | ₹19.49 | ₹97,450.00 |
5 × ₹27.72
₹138.60
excl. GST
₹163.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TS331ILT(MS)
₹138.60 for 5 + GST
Specifications
- Dual Supply
- 0.9V~2.75V;-2.75V~-0.9V
- Output Type
- Open-drain
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Vos - Input Offset Voltage
- 800uV
- Ib - Input Bias Current
- 2pA
- Quiescent Current
- 50uA
- Propagation Delay Time
- 460ns
- Number of Channels
- 1
- Input Offset Voltage Drift(Vos TC)
- 0.8uV/℃
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+85℃
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The TS331ILT(MS) is a single comparator version that is an open drain output comparator for maximum flexibility. It can operate in the voltage range of 2.1V to 5.5V, and each channel has 50 μA (TYPE) low power consumption at low output. The TS331ILT(MS) are the most cost - effective solutions for applications where low voltage operation, low power and space saving are the primary specifications in circuit design for portable consumer products. The TS331ILT(MS) are available in Green SOT - 23 - 5 packages. It operates over an ambient temperature range of - 40°C to + 85°C. The TS331ILT(MS) family of comparators can operate up to 5.5V on the supply pin. This standard device has proven ubiquity and versatility across a wide range of applications. This is due to its low power and high speed. The open - drain output allows the user to configure the output's logic low voltage (VOL) and can be utilized to enable the comparator to be used in AND functionality.
Applications
- Hysteresis Comparators
- Oscillators
- Window Comparators
- Industrial Equipment
- Test and Measurement
Key features
- Supply Range: +2.1V to +5.5V
- Low Supply Current
- 50μA (TYP) per channel at VS = 5V and output low
- Input Common - Mode Voltage Range Includes Ground
- Low Output Saturation Voltage 100mV Typical
- Open - Drain Output for Maximum Flexibility SPECIFIED UP TO +125°C
- Micro SIZE PACKAGES: SOT23 - 5
