UTCDatasheet (PDF)

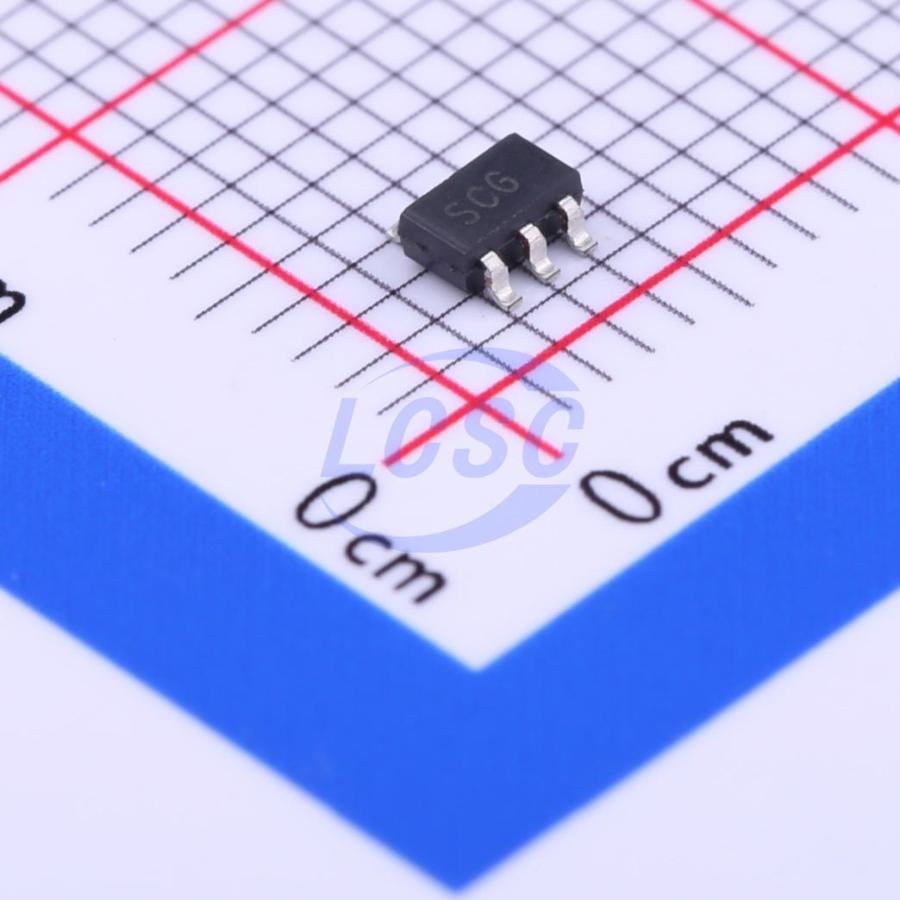

TS391CG-AF5-R
1mV 25nA 1 SOT-25-5 Linear Comparators RoHS
SOT-25-5ROHS CompliantActive
LOW POWER SINGLE VOLTAGE COMPARATOR
- Manufacturer
- UTC
- Manufacturer part #
- TS391CG-AF5-R
- Store part #
- C75520
- Package / case
- SOT-25-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,600 in stock
#C75520
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.51 | ₹77.55 |
| 50+ | ₹12.40 | ₹620.00 |
| 150+ | ₹10.85 | ₹1,627.50 |
| 500+ | ₹9.68 | ₹4,840.00 |
| 3,000+ | ₹8.76 | ₹26,280.00 |
| 6,000+ | ₹8.28 | ₹49,680.00 |
5 × ₹15.51
₹77.55
excl. GST
₹91.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TS391CG-AF5-R
₹77.55 for 5 + GST
Specifications
- Features
- Fail-safe function
- Dual Supply
- 1V~18V;-18V~-1V
- Vos - Input Offset Voltage
- 1mV
- Quiescent Current
- 200uA
- Ib - Input Bias Current
- 25nA
- Output Mode
- TTL;DTL;ECL;CMOS
- Number of Channels
- 1
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+125℃
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.3us
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
The UTC TS391/A/B/C consists of a low power voltage comparator designed specifically to operate from a single supply over a wide range of voltages. Operation from split power supplies is also possible. This comparator also has a unique characteristic in that the input common - mode voltage range includes ground even though operated from a single power supply voltage.
Key features
- Wide single supply voltage range or dual supplies +2V~+36V or ±1V~±18V
- Very low supply current (0.2mA) independent of supply voltage (1mW /comparator at +5V)
- Low input bias current: 25nA typ.
- Low input offset current: ±5nA typ.
- Low input offset voltage: ±1mV typ
- Input common - mode voltage range includes ground.
- Low output saturation voltage: 250mV typ. (Iout = 4mA).
- Differential input voltage range equal to the supply voltage.
- TTL, DTL, ECL, CMOS Compatible outputs.
