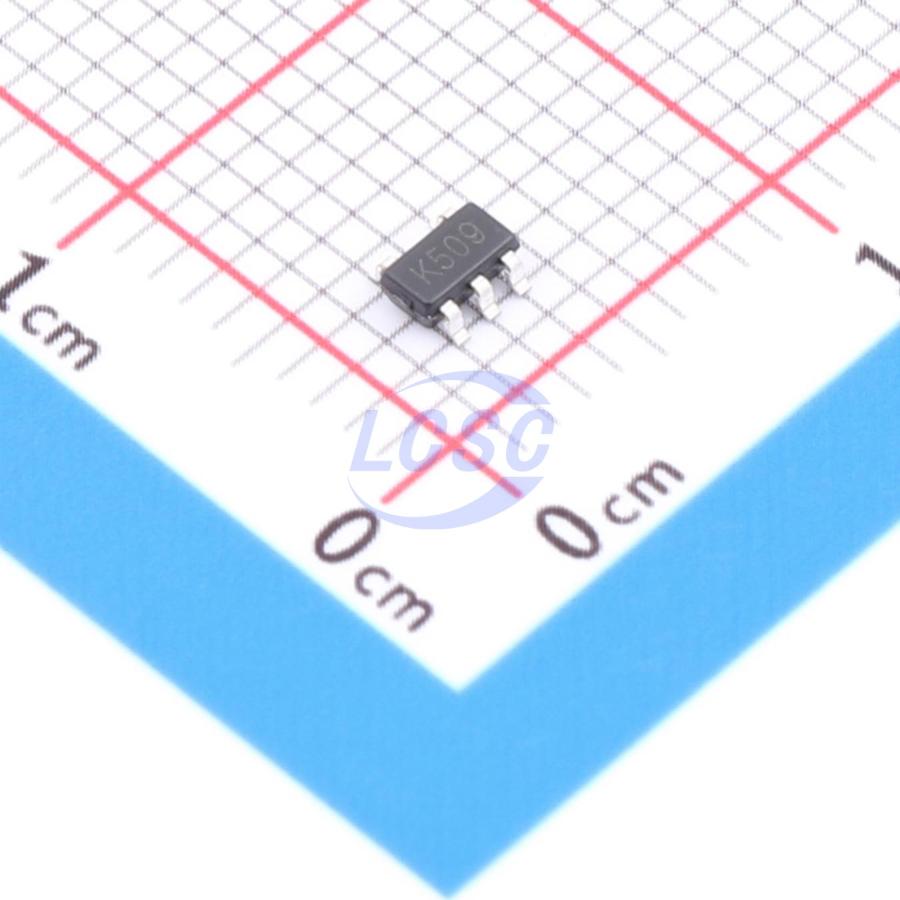

TS391RILT-TP
2mV 25nA 1 SOT-23-5 Linear Comparators
SOT-23-5RoHSActive
Single Differential Comparator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TS391RILT-TP
- Store part #
- C48995604
- Package / case
- SOT-23-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,410 in stock
#C48995604
Stock & price checked 44 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.15 | ₹75.75 |
| 50+ | ₹13.14 | ₹657.00 |
| 150+ | ₹12.28 | ₹1,842.00 |
| 500+ | ₹11.21 | ₹5,605.00 |
| 3,000+ | ₹10.73 | ₹32,190.00 |
| 6,000+ | ₹10.44 | ₹62,640.00 |
5 × ₹15.15
₹75.75
excl. GST
₹89.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TS391RILT-TP
₹75.75 for 5 + GST
Specifications
- Dual Supply
- 1V~18V;-18V~-1V
- Vos - Input Offset Voltage
- 2mV
- Quiescent Current
- 400uA
- Ib - Input Bias Current
- 25nA
- Output Mode
- DTL;ECL;TTL;MOS;CMOS
- Propagation Delay Time
- 300ns
- Number of Channels
- 1
- Input Offset Current(Ios)
- 50nA
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.3us
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
This device is a precision voltage comparator capable of operating from a single or dual supply. Its specification of as low as 2.0 mV makes it an excellent ground-level comparator in single-supply operation. The selection of input offset voltage makes it suitable for a wide range of applications in consumer electronics, automotive electronics, and industrial electronics, with a design that allows the input common-mode range to extend down to ground level.
Applications
- Battery chargers
- Cordless telephones
- Switching power supplies
Key features
- Output voltage compatible with DTL, ECL, TTL, MOS, and CMOS logic levels
- Low input bias current: 25nA
- Low input offset current: ±0.5nA
- Low input offset voltage: ±2mV (typical)
- Input common-mode range extends to ground
- Differential input voltage range equal to supply voltage
- Ultra-low supply current consumption (0.4mA) — independent of supply voltage
- Wide single-supply range: 2V ~ 36V
- Dual-supply range: ±1V ~ ±18V
