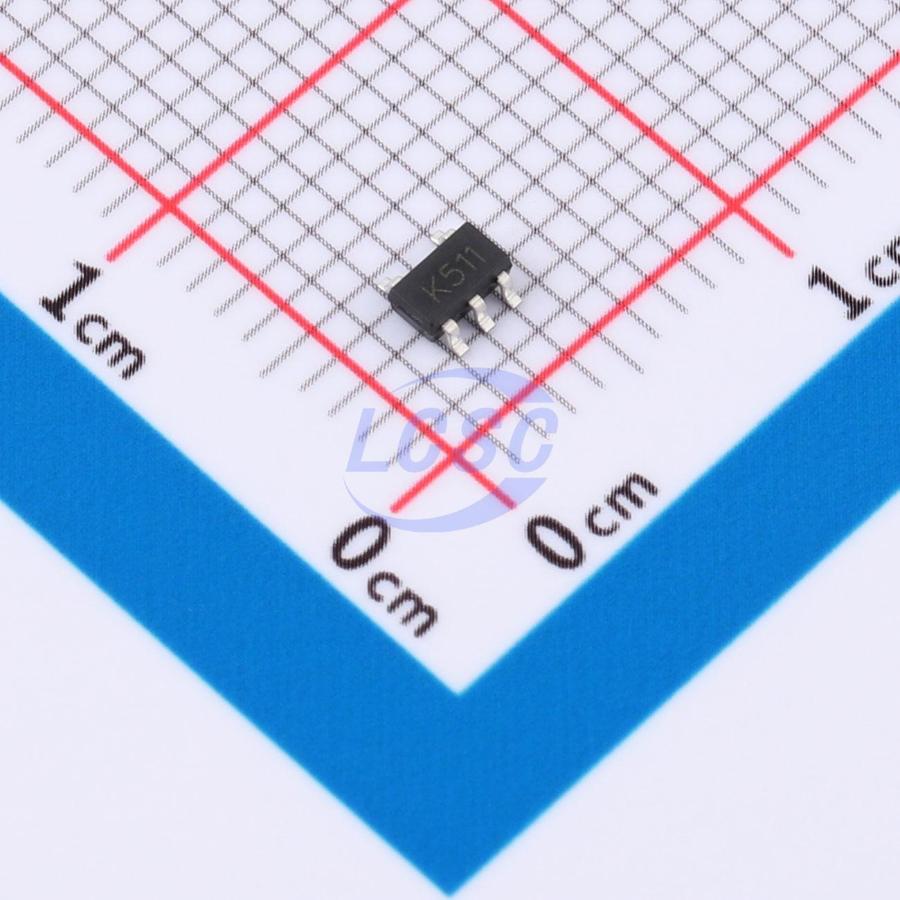

TS391US5-1
2mV 1 SOT-23-5 Linear Comparators
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TS391US5-1
- Store part #
- C53100553
- Package / case
- SOT-23-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,935 in stock
#C53100553
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.44 | ₹77.20 |
| 50+ | ₹12.12 | ₹606.00 |
| 150+ | ₹10.46 | ₹1,569.00 |
| 500+ | ₹9.22 | ₹4,610.00 |
| 3,000+ | ₹8.22 | ₹24,660.00 |
| 6,000+ | ₹7.73 | ₹46,380.00 |
5 × ₹15.44
₹77.20
excl. GST
₹91.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TS391US5-1
₹77.20 for 5 + GST
Specifications
- Dual Supply
- -18V~-1V;1V~18V
- Output Type
- Open Drain
- Vos - Input Offset Voltage
- 2mV
- Quiescent Current
- 400uA
- Output Mode
- TTL;DTL;ECL;CMOS
- Number of Channels
- 1
- Input Offset Voltage Drift(Vos TC)
- 1uV/℃
- Input Offset Current(Ios)
- 250nA
- Operating Temperature
- -40℃~+125℃
- Response Time (tr)
- 1.3us
- Single Supply
- 2V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
This device is a single-precision voltage comparator capable of operating from single or dual supplies. Its specification of as low as 2.0 mV makes it an excellent choice for ground-level detection in single-supply operation. The input offset voltage selection makes it suitable for a wide range of applications in consumer electronics, automotive electronics, and industrial electronics. Its design allows the common-mode range to extend to the negative supply rail, enabling ground sensing in single-supply systems. The device is available in an SOT23-5 package.
Applications
- Alarm and monitoring circuits
- Hysteresis comparator
- Oscillator
- Window comparator
- Industrial equipment
Key features
- Wide single-supply voltage range: 2V~36V
- Dual-supply voltage range: ±1V~±18V
- Low input bias current: 25nA
- Open-drain output for maximum flexibility
- Output compatible with TTL, DTL, ECL, CMOS logic levels
- Package: SOT23-5
