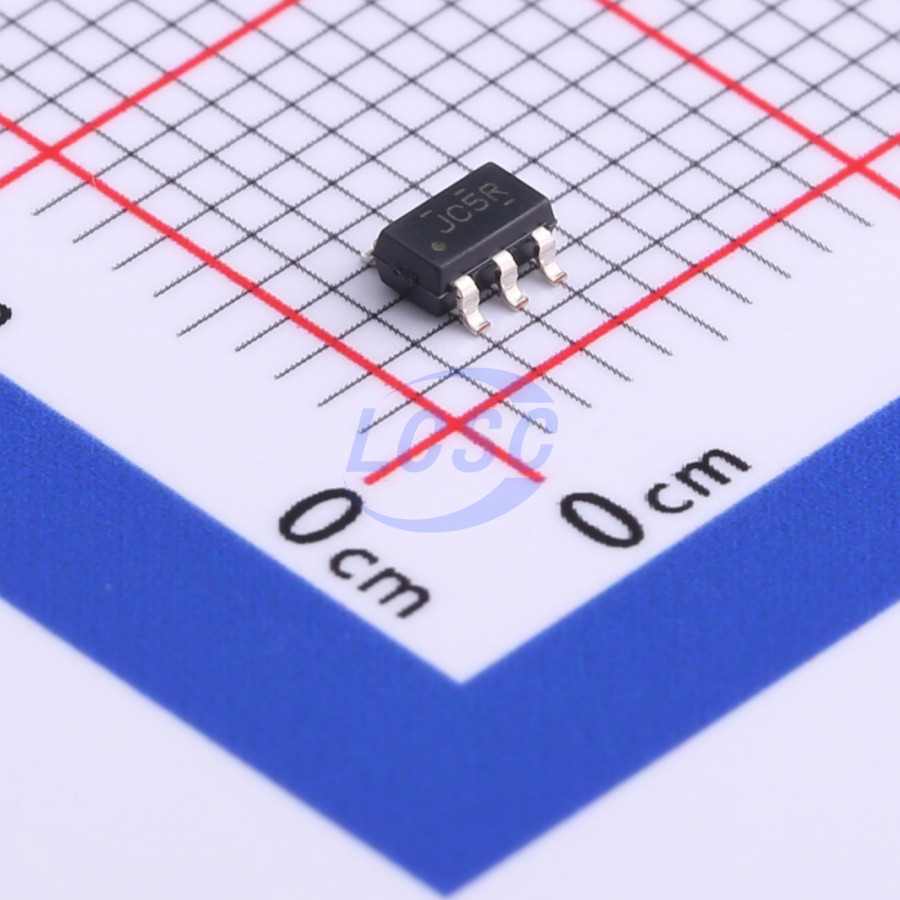

TS5A3157DBVR
10Ω 1 1.65V~5.5V SOT-23-6 Analog Switches, Multiplexers, Demultiplexers RoHS
SOT-23-6ROHS3 CompliantActive
SPDT Analog Switch
- Manufacturer
- TI
- Manufacturer part #
- TS5A3157DBVR
- Store part #
- C353034
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
Out of stock
#C353034
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.75 | ₹168.75 |
| 50+ | ₹28.07 | ₹1,403.50 |
| 150+ | ₹25.30 | ₹3,795.00 |
| 500+ | ₹22.82 | ₹11,410.00 |
| 3,000+ | ₹22.13 | ₹66,390.00 |
| 6,000+ | ₹21.72 | ₹1,30,320.00 |
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
Specifications
- Features
- Bidirectional analog channel;Glitch-free switching
- Operating Temperature
- -40℃~+85℃
- Ron
- 10Ω
- Number of Channels
- 1
- Voltage - Supply
- 1.65V~5.5V
- Con
- 17.5pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.057 g
Overview
The TS5A3157 device is a single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65 V to 5.5 V. This device can handle both digital and analog signals, and signals up to V+ can be transmitted in either direction.
Applications
- Sample-and-Hold Circuits
- Battery-Powered Equipment
- Audio and Video Signal Routing
- Communication Circuits
Key features
- Low ON-State Resistance (10 Ω)
- Control Inputs Are 5-V Tolerant
- Low Charge Injection
- Excellent ON-State Resistance Matching
- Low Total Harmonic Distortion (THD)
- 1.65-V to 5.5-V Single-Supply Operation
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Performance Tested Per JESD 22
- 2000-V Human-Body Model (A114-B, Class II)
- 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | COSFSA3157ST#C42381444COSINE · SOT-23-6 | COSINE | SOT-23-6 | 2,930 | ₹7.13 · 2,930 in stock | View |
 | COS3157ST#C42381445COSINE · SOT-23-6 | COSINE | SOT-23-6 | 3,330 | ₹7.13 · 3,330 in stock | View |
 | COSN74LVC1G3157DBVR#C42428252COSINE · SOT-23-6 | COSINE | SOT-23-6 | 1,460 | ₹7.22 · 1,460 in stock | View |
 | COSTS5A3157DBVR#C42428253COSINE · SOT-23-6 | COSINE | SOT-23-6 | 2,200 | ₹7.13 · 2,200 in stock | View |
 | TP74LVC1G3157S6#C42460122TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 1,700 | ₹7.55 · 1,700 in stock | View |
