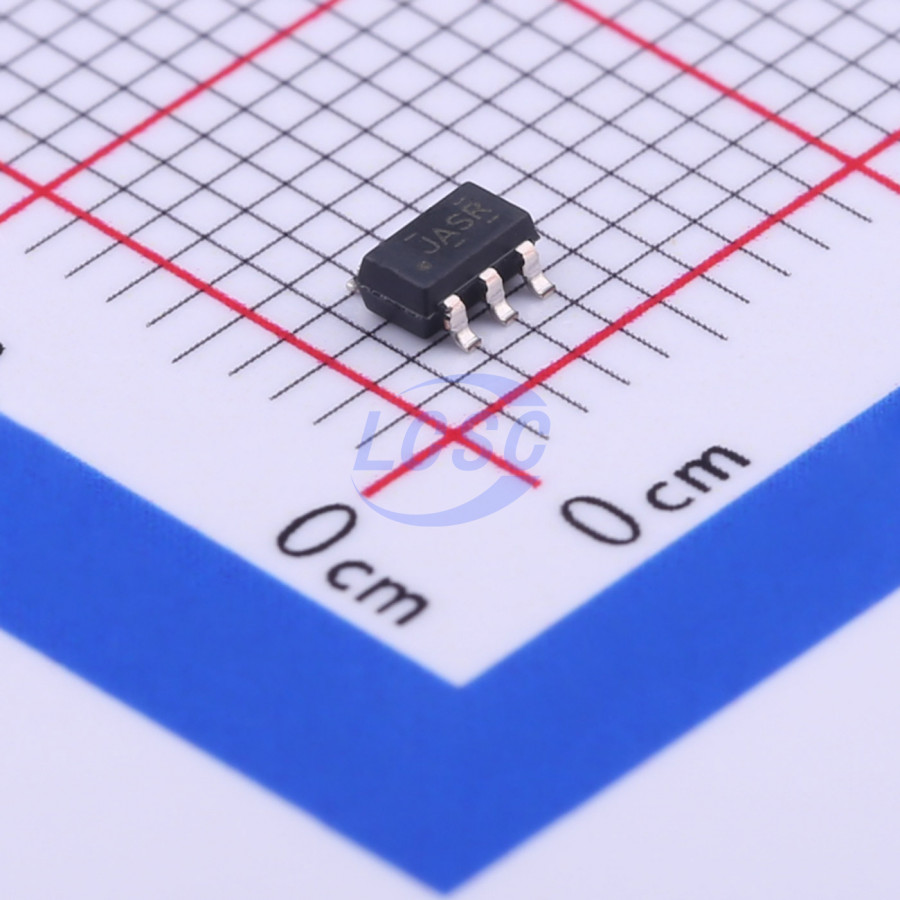

TS5A3166DBVR

900mΩ 1 1.65V~5.5V SOT-23-5 Analog Switches, Multiplexers, Demultiplexers RoHS

SOT-23-5ROHS3 CompliantActive

TS5A3166 0.9-Ω SPST Analog Switch

Manufacturer: TI
Manufacturer part #: TS5A3166DBVR
Store part #: C353035
Package / case: SOT-23-5
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

11,645 in stock

#C353035

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹50.31	₹251.55
50+	₹40.42	₹2,021.00
150+	₹36.17	₹5,425.50
500+	₹30.88	₹15,440.00
3,000+	₹26.95	₹80,850.00
6,000+	₹25.53	₹1,53,180.00

Quantity (min 5, multiples of 5)

5 × ₹50.31

₹251.55

excl. GST

₹296.83 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TS5A3166DBVR

₹251.55 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃
Ron: 900mΩ
Number of Channels: 1
Voltage - Supply: 1.65V~5.5V
Con: 35.5pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.269 g

Overview

The TS5A3166 device is a single-pole single-throw (SPST) analog switch that is designed to operate from 1.65 V to 5.5 V. The device offers a low ONstate resistance. The device has excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications.

Applications

Cell Phones
PDAs
Portable Instrumentation
Audio and Video Signal Routing
Low-Voltage Data-Acquisition Systems
Communication Circuits
Modems
Hard Drives
Computer Peripherals
Wireless Terminals and Peripherals
Microphone Switching – Notebook Docking

Key features

Low ON-State Resistance (0.9 Ω)
Control Inputs Are 5.5-V Tolerant
Low Charge Injection
Low Total Harmonic Distortion (THD)
1.65-V to 5.5-V Single-Supply Operation
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Performance Tested Per JESD 22: 2000-V Human-Body Model (A114-B, Class II), 1000-V Charged-Device Model (C101)
