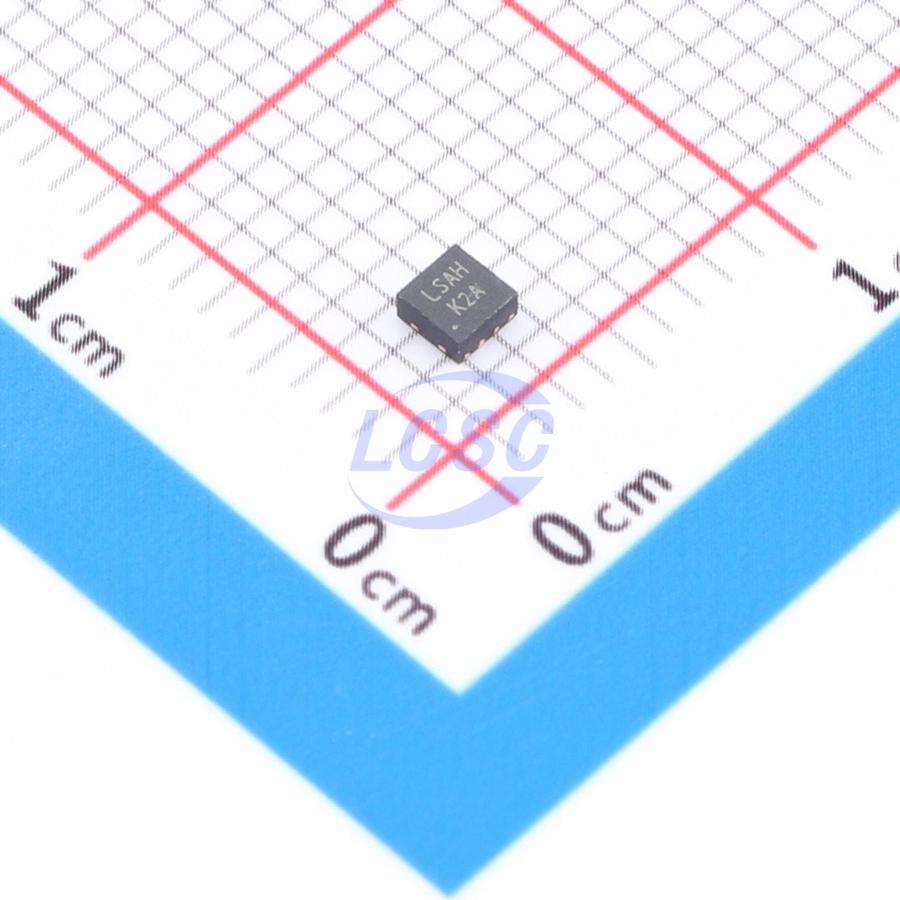

TSV7722DQ2/TR-HG

1pA 800uA 20MHz Rail-to-Rail Input, Rail-to-Rail Output DFN-8(2x2) Audio Amplifiers

DFN-8(2x2)RoHSActive

Manufacturer: HGSEMI
Manufacturer part #: TSV7722DQ2/TR-HG
Store part #: C54540198
Package / case: DFN-8(2x2)
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,431 in stock

#C54540198

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹77.61	₹77.61
10+	₹62.86	₹628.60
30+	₹55.37	₹1,661.10
100+	₹48.10	₹4,810.00
500+	₹43.62	₹21,810.00
1,000+	₹41.48	₹41,480.00

Quantity (min 1)

1 × ₹77.61

₹77.61

excl. GST

₹91.58 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

TSV7722DQ2/TR-HG

₹77.61 for 1 + GST

Specifications

Ib - Input Bias Current: 1pA
number of channels: 2
Operating Temperature: -40℃~+125℃
Input Offset Current(Ios): 5pA
Vos - Input Offset Voltage: 100uV
Output Current: 60mA
Quiescent Current: 800uA
Common Mode Rejection Ratio (CMRR): 96dB
Gain Bandwidth Product: 20MHz
Input Offset Voltage Drift(Vos TC): 1uV/℃
Single Supply: 1.8V~5.5V
Slew Rate: 22V/us
Noise density(eN): 8nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.151 g

Overview

The TSV772x series single and dual-channel amplifiers achieve a maximum ratio of gain bandwidth (GBW) to supply current, making them ideal for battery-powered applications requiring a good balance between cost and performance, such as audio output, motor phase current sensing, photodiode amplification, and white goods. Featuring rail-to-rail input and output swing, 20 MHz wide bandwidth, low supply current (typical 1.12 mA per amplifier at 5 V supply), and low noise, this amplifier series is an ideal choice for precision, low-current, low-voltage, battery-powered applications. Low input bias current enables these amplifiers to be used in applications with megaohm-level source impedance. The robust design of the TSV772x amplifiers provides ease of use for circuit designers: integrated RF/EMI rejection filter, no phase reversal under overdrive conditions, and high ESD protection (3 kV HBM). The TSV772x amplifiers are optimized to operate from as low as +1.8 V (±0.9 V) to as high as +5.5 V (±2.75 V) over a temperature range of 0°C to 70°C, and from +2.0 V (±1.0 V) to +5.5 V (±2.75 V) over an extended temperature range of -40°C to +125°C. The TSV7721 (single-channel) is available in a SOT-23-5 package. The TSV7722 (dual-channel) is offered in SOP-8, DFN-8, and MSOP-8 packages.
