TUSB1210BRHBR

Transceiver 480Mbps VQFN-32-EP(5x5) Drivers, Receivers, Transceivers RoHS

VQFN-32-EP(5x5)ROHS3 CompliantActive

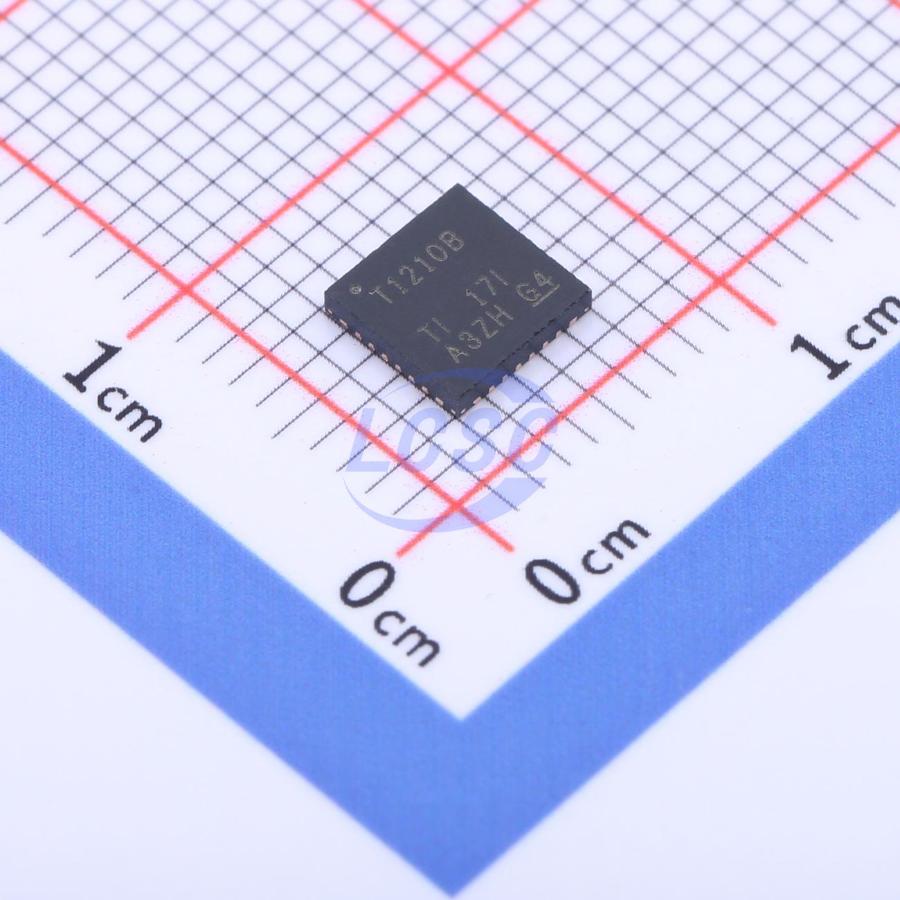

TUSB1210 standalone USB transceiver silicon chip

Manufacturer: TI
Manufacturer part #: TUSB1210BRHBR
Store part #: C2652869
Package / case: VQFN-32-EP(5x5)
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,529 in stock

#C2652869

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹229.42	₹229.42
10+	₹192.27	₹1,922.70
30+	₹169.03	₹5,070.90
100+	₹145.13	₹14,513.00
500+	₹134.48	₹67,240.00
1,000+	₹129.71	₹1,29,710.00

Quantity (min 1)

1 × ₹229.42

₹229.42

excl. GST

₹270.72 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TUSB1210BRHBR

₹229.42 for 1 + GST

Specifications

Type: Transceiver
Voltage - Supply: 2.7V~4.8V;1.71V~1.98V;3.3V
Data Rate: 480Mbps
Operating Temperature: -40℃~+85℃
Features: Built-in clock generator
Supply Current: 15mA
Quiescent Supply Current: 1mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.28 g

Overview

The TUSB1210 is a USB 2.0 transceiver chip that can be connected to a USB controller via the ULPI interface. This device supports all USB 2.0 data rates (High-Speed 480Mbps, Full-Speed 12Mbps, and Low-Speed 1.5Mbps) and is compatible with both host and peripheral modes. It also supports the UART mode and the traditional ULPI serial mode. The TUSB1210 also supports the optional appendix of the USB 2.0 specification's OTG (Version 1.3), including HNP and SRP. The DP/DM external component compensation in the transmitter can compensate for changes in the series impedance to match the impedance of the data line and the input impedance of the receiver, limiting data reflection and thus improving the eye diagram.

Applications

Mobile phones
Portable computers
Tablet devices
Video game consoles
Desktop computers
Portable music players

Key features

USB2.0 PHY transceiver IC, connectable to USB controllers via ULPI interface; fully compliant with Universal Serial Bus Specification Revision 2.0, USB 2.0 Specification Mobile Supplement Revision 1.3, UTMI+ Low Pin Interface (ULPI) Specification Version 1.1, and ULPI 12-pin SDR interface
DP/DM line external component compensation (Patent No. US7965100B1)
Interface for connecting host, peripheral, and OTG device cores; optimized for portable devices or system ASICs with integrated USB OTG device cores
Complete USB OTG physical front-end with Host Negotiation Protocol (HNP) and Session Request Protocol (SRP) support
VBUS overvoltage protection circuitry protects the VBUS pin over a voltage range of –2V to 20V
Internal 5V short-circuit protection prevents DP, DM, and ID pins from being shorted to the VBUS pin via cable
ULPI interface: I/O interface (1.8V) optimized for unterminated 50Ω line impedance; ULPI clock pin (60MHz) supports both input and output clock configurations; fully programmable register set compliant with ULPI standard
Full industrial operating temperature range: –40°C to 85°C
32-pin Quad Flat No Lead [QFN (RHB)] package
