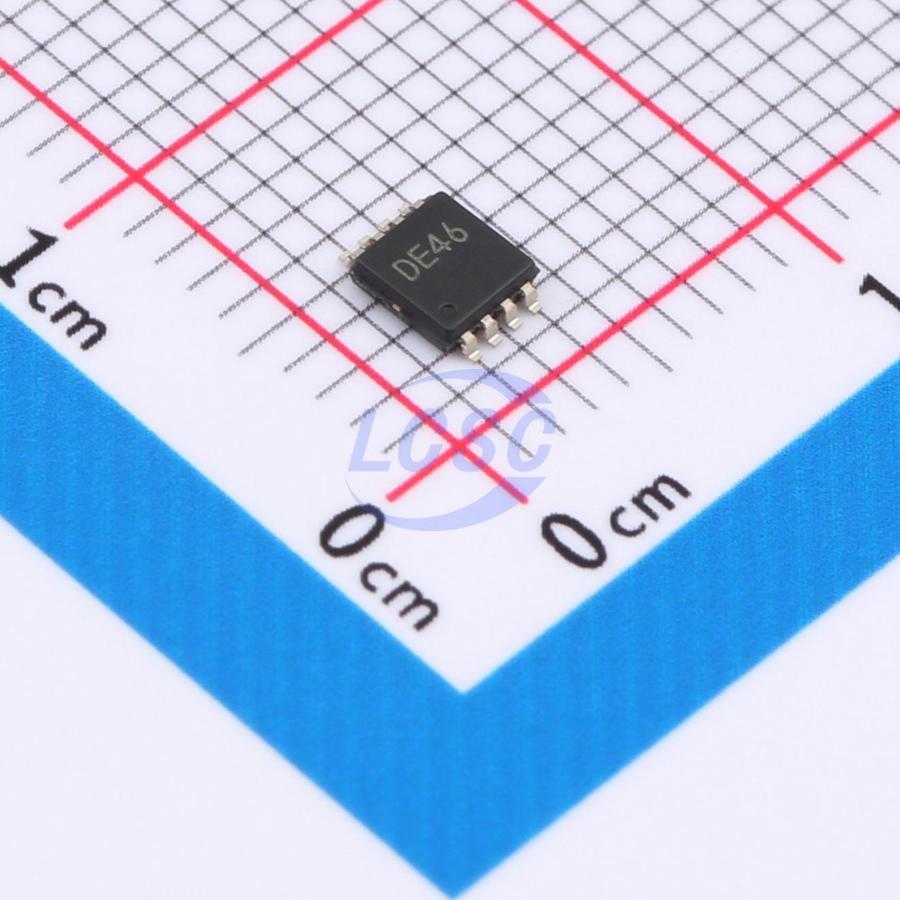

lingxingic

TXB0102DCT(LX)

45Mbps 1 2 TSSOP-8 Translators, Level Shifters

TSSOP-8RoHSActive

X-Bit Bidirectional Level-Shifting, Voltage-Level Translator

Manufacturer: lingxingic
Manufacturer part #: TXB0102DCT(LX)
Store part #: C22469962
Package / case: TSSOP-8
Category: Translators, Level Shifters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,040 in stock

#C22469962

Stock & price checked 23 h ago

Quantity	Unit price	Pack price
5+	₹33.14	₹165.70
50+	₹26.04	₹1,302.00
150+	₹22.99	₹3,448.50
500+	₹19.20	₹9,600.00
3,000+	₹17.50	₹52,500.00
6,000+	₹16.48	₹98,880.00

Quantity (min 5, multiples of 5)

5 × ₹33.14

₹165.70

excl. GST

₹195.53 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TXB0102DCT(LX)

₹165.70 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

output type: Tri-State
Operating Temperature: -40℃~+125℃
Data Rate: 45Mbps
Number of Elements: 1
Channel Type: Bidirectional
Features: Automatic direction detection;Output enable high-impedance;Power-off protection
Voltage - Supply: 1.2V~3.6V;1.65V~5.5V
Number of Circuits: 2

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.044 g

Overview

The TXB010X is an 8-bit, dual supply translating transceiver with auto direction sensing, that enables bidirectional voltage level translation. It features two 8-bit input-output ports (An and Bn), one output enable input (OE) and two supply pins VCC(A) and VCC(B). VCC(A) can be supplied at any voltage between 1.2V and 3.6V and VCC(B) can be supplied at any voltage between 1.65V and 5.5V, making the device suitable for translating between any of the low voltage nodes (1.2V, 1.5V, 1.8V, 2.5V, 3.3V and 5.0 V). Pins An and OE are referenced to VCC(A) and pins Bn are referenced to VCC(B). A LOW level at pin OE causes the outputs to assume a high-impedance OFF-state. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
