TXS0101DC(LX)

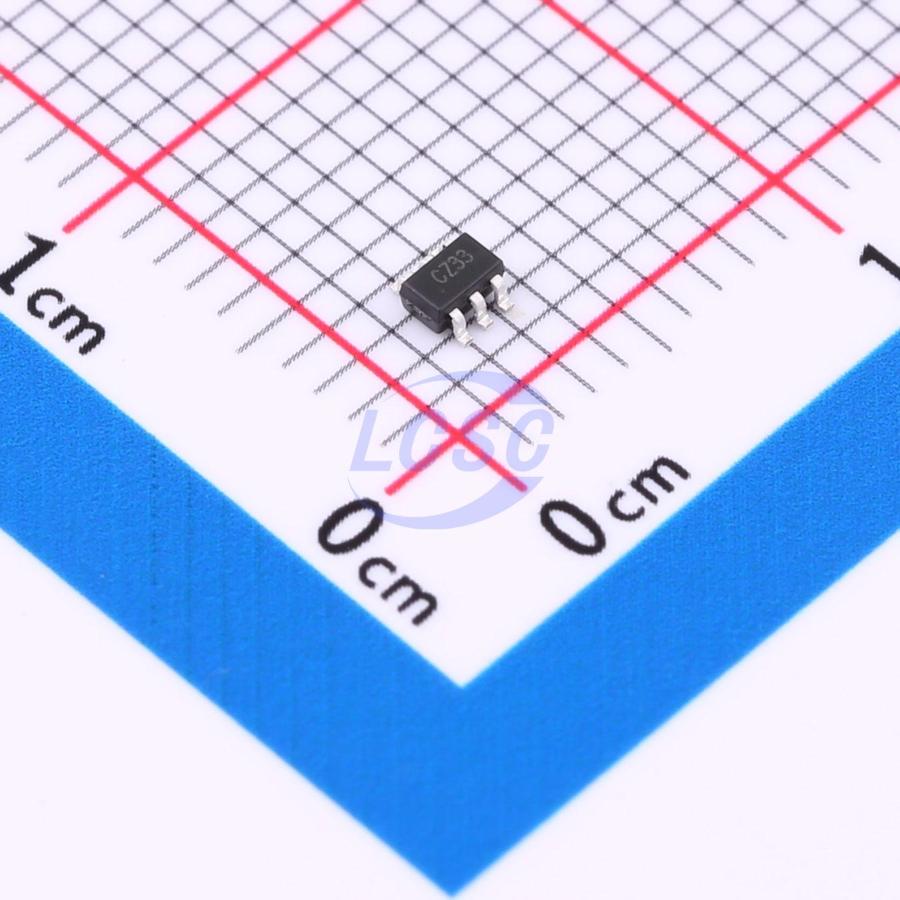

50Mbps 1 1 SOT-363 Translators, Level Shifters

SOT-363RoHSActive

X-Bit Bidirectional Level-Shifting, Voltage-Level Translator

Manufacturer: lingxingic
Manufacturer part #: TXS0101DC(LX)
Store part #: C22469954
Package / case: SOT-363
Category: Translators, Level Shifters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,235 in stock

#C22469954

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹16.00	₹80.00
50+	₹12.48	₹624.00
150+	₹10.73	₹1,609.50
500+	₹9.41	₹4,705.00
3,000+	₹8.36	₹25,080.00
6,000+	₹7.83	₹46,980.00

Quantity (min 5, multiples of 5)

5 × ₹16.00

₹80.00

excl. GST

₹94.40 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TXS0101DC(LX)

₹80.00 for 5 + GST

Specifications

Operating Temperature: -40℃~+105℃
Data Rate: 50Mbps
Number of Elements: 1
Channel Type: Bidirectional
Features: Automatic direction detection;Power-off protection;Output enable high-impedance;Integrated pull-up resistor
Voltage - Supply: 1.65V~3.6V;2.3V~5.5V
Number of Circuits: 1

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.043 g

Overview

The TXS010X is a X-bit, dual supply translating transceiver with auto direction sensing, that enables bidirectional voltage level translation. It features two 1-bit input-output ports (A and B), one output enable input (OE) and two supply pins VCC(A) and VCC(B). VCC(A) can be supplied at any voltage between 1.65V and 3.6V. VCC(B) can be supplied at any voltage between 2.3V and 5.5V. This flexibility makes the device suitable for translating between any of the voltage nodes (1.8V, 2.5V, 3.3V and 5.0V). Pins A and OE are referenced to VCC(A) and pin B is referenced to VCC(B). A LOW level at pin OE causes the outputs to assume a high-impedance OFF-state. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.

Key features

Wide supply voltage range: VCC(A): 1.65V to 3.6V VCC(B): 2.3V to 5.5V
Maximum data rates: Push-pull: 50 Mbps Open-drain: 2 Mbps
IOFF circuitry provides partial Power-down mode operation
Inputs accept voltages up to 5.5V
Specified from -40 to +105°C
Package: TXS0101: SOT23-6/SOT363 TXS0102: TSSOP8/VSSOP8 TXS0104: SOP14/TSSOP14 TXS0108: TSSOP20
