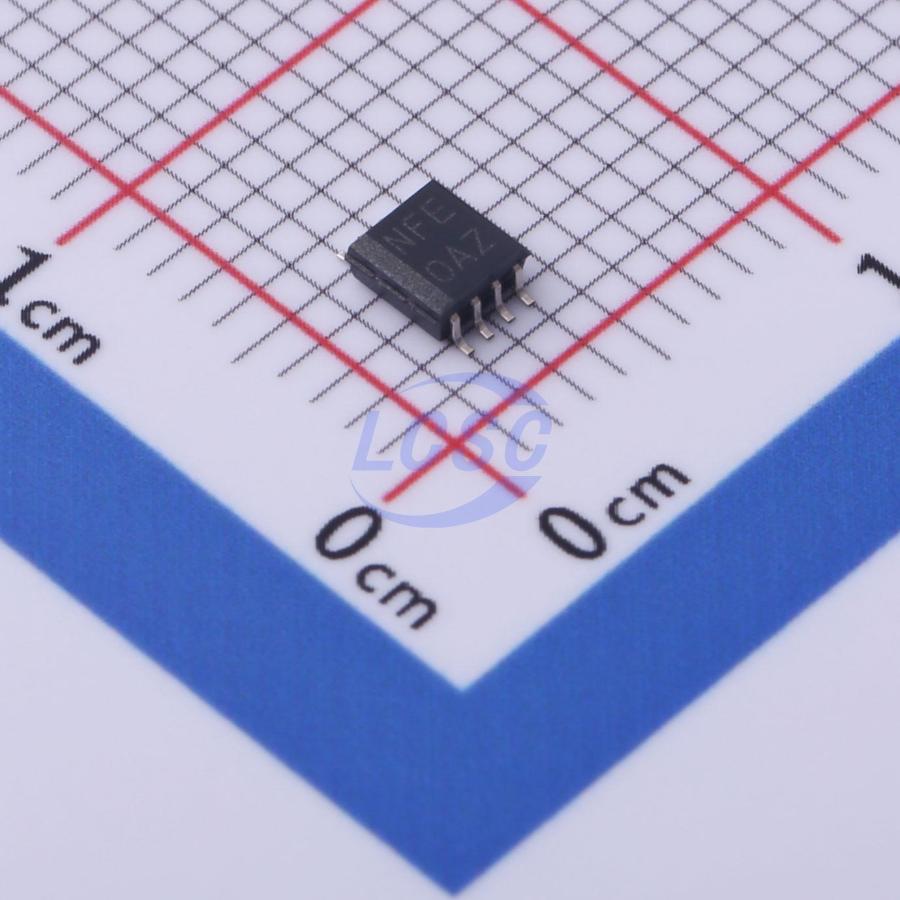

TXS0102DCTT

24Mbps 1 2 SSOP-8 Translators, Level Shifters RoHS

SSOP-8ROHS3 CompliantActive

2-bit bidirectional voltage level shifter suitable for open-drain and push-pull applications

Manufacturer: TI
Manufacturer part #: TXS0102DCTT
Store part #: C2677354
Package / case: SSOP-8
Category: Translators, Level Shifters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,802 in stock

#C2677354

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹92.64	₹92.64
10+	₹75.46	₹754.60
30+	₹66.98	₹2,009.40
250+	₹53.28	₹13,320.00
500+	₹48.06	₹24,030.00
1,000+	₹45.46	₹45,460.00

Quantity (min 1)

1 × ₹92.64

₹92.64

excl. GST

₹109.32 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 250 per reel

TXS0102DCTT

₹92.64 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

output type: Open-drain;Push-Pull
Interface: I2C;SMBus;UART
Operating Temperature: -40℃~+85℃
Voltage - Supply: 2.3V~5.5V;1.65V~3.6V
Data Rate: 24Mbps
Number of Elements: 1
Channel Type: Bidirectional
Features: Automatic direction detection;Output enable high-impedance;Integrated pull-up resistor
Number of Circuits: 2

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 250 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.03 g

Overview

This 2-bit non-inverting translator is a bidirectional voltage-level translator designed to establish digital switching compatibility between mixed-voltage systems. It features two independent configurable supply rails: Port A supports an operating voltage range of 1.65V to 3.6V and tracks the VCCA supply, while Port B supports an operating voltage range of 2.3V to 5.5V and tracks the VCCB supply. As a result, the device accommodates both lower and higher logic signal levels, enabling bidirectional translation between any combination of 1.8V, 2.5V, 3.3V, and 5V voltage nodes.

Applications

I²C/SMBus
UART
General-Purpose Input/Output (GPIO)

Key features

No direction control signal required
Maximum data rate: 24Mbps (push-pull); 2Mbps (open-drain)
NanoStar package
Port A supports 1.65V to 3.6V; Port B supports 2.3V to 5.5V (VCCA ≤ VCCB)
VCC isolation: if either VCC input is tied to GND, both ports enter high-impedance state
No power sequencing required: VCCA or VCCB may ramp up in any order
|_off supports partial power-down mode operation
Latch-up performance exceeds 100mA per JESD 78 Class II
ESD protection exceeds JESD 22 requirements
Port A: 2500V HBM (A114-B); 250V MM (A115-A); 1500V CDM (C101)
Port B: 8kV HBM (A114-B); 250V MM (A115-A); 1500V CDM (C101)
