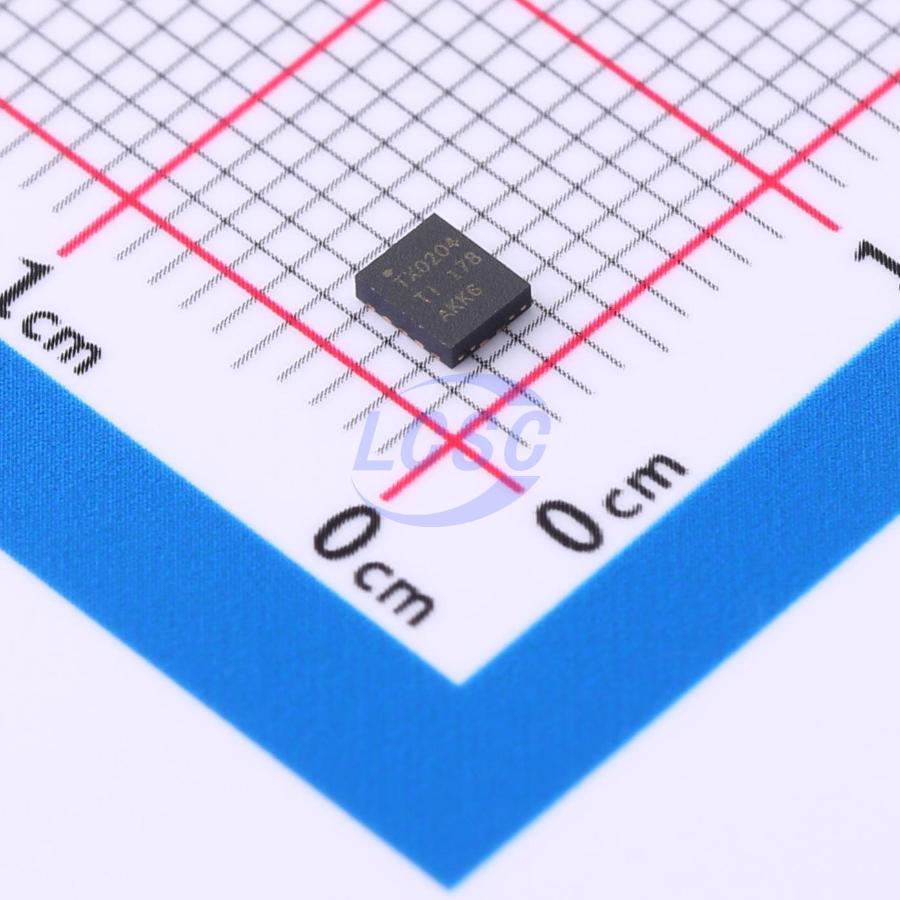

TXU0204BQAR

The TXU0204 is a 4-bit, dual-supply, non-inverting, fixed-direction voltage-level translator. The Ax pins are referenced to VCCA logic levels, the OE pin can be referenced to either VCCA or VCCB logic levels, and the Bx pins are referenced to VCCB logic levels. The A port accepts input voltages ranging from 1.1 V to 5.5 V, and the B port also accepts input voltages from 1.1 V to 5.5 V. When OE is driven high relative to either supply, fixed-direction data transfer can occur from A to B or from B to A. When OE is driven low, all output pins enter a high-impedance state. For a summary of the control logic operation, refer to the Device Functional Modes.

Applications

• Eliminates slow or noisy input signals
• Drives indicator LEDs or buzzers
• Debounces mechanical switches
• General-purpose I/O level shifting
• Push-pull level translation (UART, SPI, JTAG, etc.)

Key features

• Fully configurable dual-rail design allows each port to operate from 1.1 V to 5.5 V
• Supports data rates up to 200 Mbps at 3.3 V to 5.0 V
• Schmitt-trigger inputs accommodate slow and noisy input signals
• Integrated static pull-down resistors on inputs prevent channel floating
• High drive strength (up to 12 mA at 5 V)
• Low power consumption
• 2.5 μA maximum at 25°C
• 6 μA maximum over -40°C to 125°C
• VCC isolation and VCC disconnect (Ioff – float) features
• All outputs disabled and driven to high impedance if either VCC input falls below 100 mV or is disconnected
• Ioff supports partial power-down mode operation
• Control logic (OE) with VCC(MIN) circuitry allows control from port A or port B
• Pin-compatible with TXB-series level translators
• Additional variants available for common applications: TXU0104, TXU0304
• Operating temperature range: -40°C to +125°C
• Latch-up performance exceeds 100 mA per JESD 78 Class II
• ESD protection exceeds JESD 22
• 2500 V Human Body Model
• 1500 V Charged Device Model
