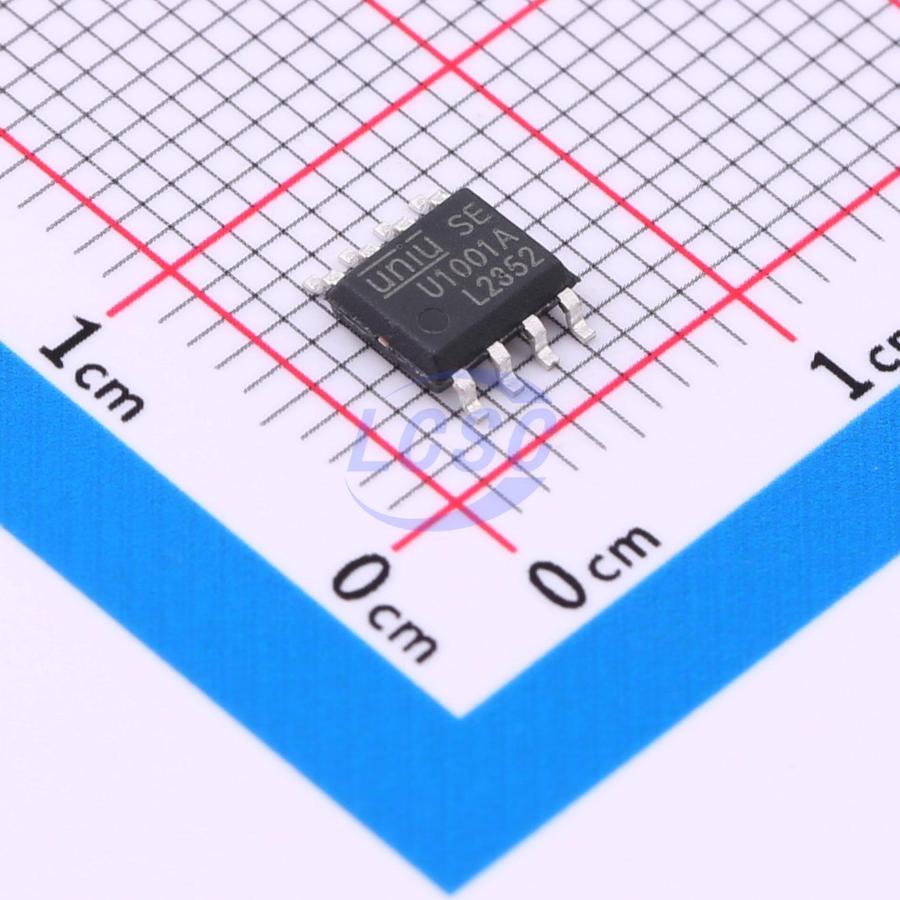

U1001A
5V~30V 2A 2.5A SOP-8 Gate Drivers RoHS
Independent Single-Channel Gate Driver
- Manufacturer
- UNI-SEMIC
- Manufacturer part #
- U1001A
- Store part #
- C41374694
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,881 in stock
#C41374694
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.29 | ₹55.29 |
| 10+ | ₹43.16 | ₹431.60 |
| 30+ | ₹38.17 | ₹1,145.10 |
| 100+ | ₹31.66 | ₹3,166.00 |
| 500+ | ₹28.84 | ₹14,420.00 |
| 1,000+ | ₹27.11 | ₹27,110.00 |
1 × ₹55.29
₹55.29
excl. GST
₹65.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
U1001A
₹55.29 for 1 + GST
Specifications
- Low Level Delay Time
- 320ns
- High Level Delay Time
- 200ns
- Quiescent Current
- 100uA
- Voltage - Supply
- 5V~30V
- Driven Configuration
- Low Side
- Operating Temperature
- -40℃~+150℃
- Current - Output Low(IOL)
- 2A
- Rise Time
- 18ns
- Fall Time
- 20ns
- Features
- Enable shutdown
- Current - Output High(IOH)
- 2.5A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.191 g
Overview
The U1001A is a single-channel MOSFET and IGBT driver with an independent low-side referenced output channel. It employs proprietary high-voltage IC and latch-immune CMOS technology to achieve a robust monolithic structure. Logic inputs are compatible with standard CMOS or LSTTL outputs, supporting logic levels as low as 3.3V. Integrated internally are input logic signal processing, fast shutdown handling, and high-current output drive circuits. The device can drive N-channel power MOSFETs or IGBTs operating at voltages up to 30V.
Applications
- General-purpose gate driver
- DC-DC converter
- Plasma display panel applications
Key features
- Integrated fast turn-off function
- Gate drive supply voltage range: 5V ~ 30V
- Under-voltage lockout protection
- Compatible with 3.3V, 5V input logic
- Output in-phase with input
