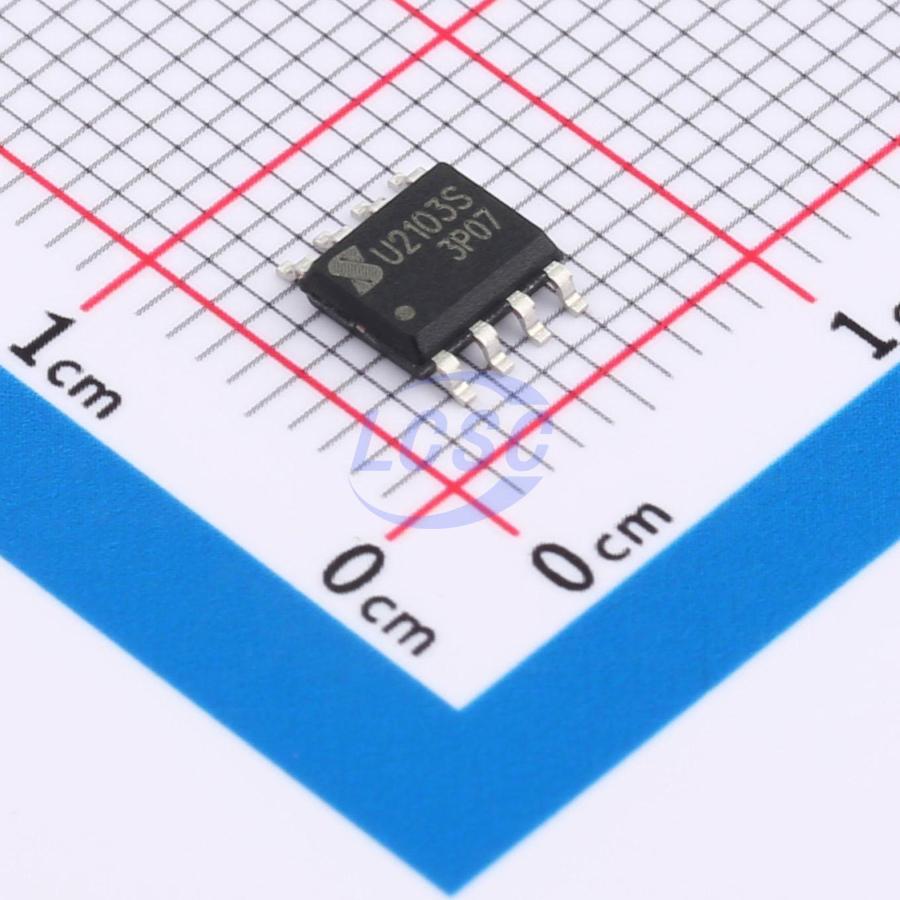

U2103S
Half-Bridge Gate Driver IC MOSFET SOP-8
700V single-phase high and low side power MOSFET/IGBT driver IC
- Manufacturer
- JSMSEMI
- Manufacturer part #
- U2103S
- Store part #
- C17701705
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,784 in stock
#C17701705
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹40.88 | ₹40.88 |
| 10+ | ₹35.67 | ₹356.70 |
| 30+ | ₹33.38 | ₹1,001.40 |
| 100+ | ₹30.46 | ₹3,046.00 |
| 500+ | ₹30.03 | ₹15,015.00 |
| 1,000+ | ₹29.20 | ₹29,200.00 |
1 × ₹40.88
₹40.88
excl. GST
₹48.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
U2103S
₹40.88 for 1 + GST
Specifications
- Quiescent Current
- 120uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 75ns
- Fall Time
- 35ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 300mA
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.106 g
Overview
U2103S is a high-voltage, high-speed power MOSFET high- and low-side gate driver IC. It features independent high-side and low-side referenced output channels. Using a high- and low-voltage compatible process, the high- and low-side gate drive circuits are integrated on a single chip, with logic input levels compatible with CMOS or LSTTL logic outputs as low as 3.3V. The floating channel can be used to drive high-side N-channel power MOSFETs, with a maximum bootstrap voltage rating of 700V. Offered in an SOP-8 package, it operates over a temperature range of -40°C to 125°C.
Applications
- Motor control
- Air conditioner/washing machine
- General-purpose inverter
- Inverter drive
Key features
- Bootstrap floating high-side channel
- Maximum operating voltage up to +700V
- Compatible with 3.3V, 5V, and 15V input logic
- dV/dt immunity up to ±50 V/ns
- Vs negative bias capability down to -9V
- Integrated VCC UVLO
- UVLO positive-going threshold 8.9V
- UVLO negative-going threshold 8.2V
- Propagation delay characteristics
- Turn-on/turn-off propagation delay Ton/Toff = 650ns/130ns
- Delay matching time 50ns
- Cross-conduction prevention
- Dead time 520ns
- Wide temperature range -40°C~125°C
- Output stage source/sink current capability 300mA/600mA
- RoHS compliant
- SOP-8
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRS2103STRPBF-JSM#C17701702JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 65 | ₹96.05 · 65 in stock | View |
 | IR2103STRPBF-JSM#C17701703JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 130 | ₹61.80 · 130 in stock | View |
 | DGD2103MS8-13-JSM#C17701706JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 64 | ₹68.25 · 64 in stock | View |
 | TF2304M-TR#C17701709JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 183 | ₹71.98 · 183 in stock | View |
 | FAN7380MX-JSM#C17701710JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 702 | ₹57.18 · 702 in stock | View |
