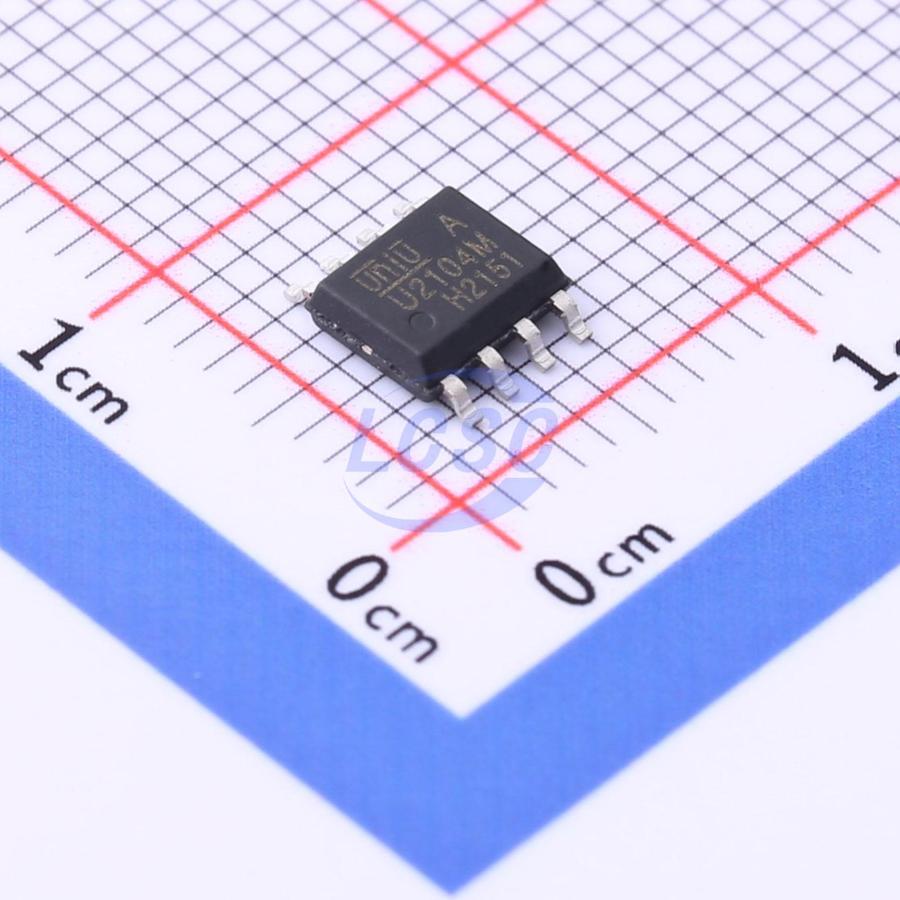

U2104M
8V~20V 600mA 400mA SOP-8 Gate Drivers RoHS
High Current IO HALF-BRIDGE DRIVER
- Manufacturer
- UNI-SEMIC
- Manufacturer part #
- U2104M
- Store part #
- C2932196
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,770 in stock
#C2932196
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.18 | ₹190.90 |
| 50+ | ₹30.56 | ₹1,528.00 |
| 150+ | ₹27.29 | ₹4,093.50 |
| 500+ | ₹21.88 | ₹10,940.00 |
| 2,500+ | ₹20.07 | ₹50,175.00 |
| 4,000+ | ₹18.99 | ₹75,960.00 |
5 × ₹38.18
₹190.90
excl. GST
₹225.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
U2104M
₹190.90 for 5 + GST
Specifications
- Low Level Delay Time
- 680ns
- High Level Delay Time
- 150ns
- Quiescent Current
- 150uA
- Voltage - Supply
- 8V~20V
- Driven Configuration
- Half-Bridge
- Operating Temperature
- -40℃~+150℃
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 100ns
- Fall Time
- 50ns
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection;Built-in bootstrap diode
- Current - Output High(IOH)
- 400mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.128 g
Overview
The U2104M is a high-voltage, high-speed power MOSFET and IGBT driver with fully operational voltage up to +600V, featuring independent high-side and low-side referenced output channels. Its logic inputs are compatible with standard CMOS or LSTTL outputs, with logic levels as low as 3.3V. The output drivers feature a high pulse current buffer stage designed to minimize cross-conduction in the driver. The floating channel can be used to drive N-channel power MOSFETs or IGBTs in a high-side configuration, with operating voltages up to 600V.
Applications
- Home appliances
- Industrial applications and drives
- Motor drives
- DC-AC converters
- Induction heating
- HVAC
Key features
- Integrated bootstrap diode (1)
- Floating channel designed for bootstrap operation
- Full operating voltage up to +600V
- Tolerates negative transient voltage, immune to dV/dt noise
- Gate drive supply voltage range: 4.8V to 20V
- Undervoltage lockout
- Compatible with 3.3V, 5V, and 15V input logic levels
- Cross-conduction prevention logic
- Internal dead time setting
- High-side output in phase with input
- Shutdown input turns off both channels simultaneously
- Matched propagation delay for both channels
