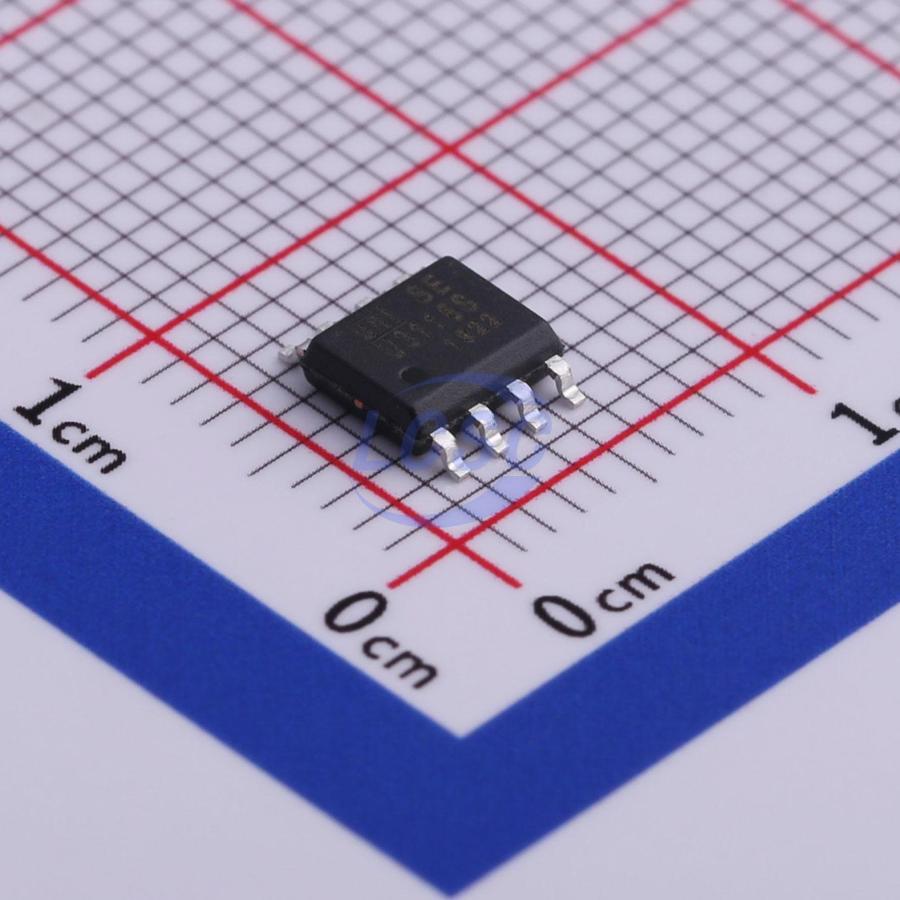

U3116S
10V~20V 1.5A 1.2A SOP-8 Gate Drivers RoHS
- Manufacturer
- UNI-SEMIC
- Manufacturer part #
- U3116S
- Store part #
- C400131
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,625 in stock
#C400131
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.51 | ₹127.55 |
| 50+ | ₹20.04 | ₹1,002.00 |
| 150+ | ₹17.70 | ₹2,655.00 |
| 500+ | ₹14.06 | ₹7,030.00 |
| 2,500+ | ₹12.77 | ₹31,925.00 |
| 4,000+ | ₹11.99 | ₹47,960.00 |
5 × ₹25.51
₹127.55
excl. GST
₹150.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
U3116S
₹127.55 for 5 + GST
Specifications
- Input Logic Level - Low
- 1.6V
- Low Level Delay Time
- 450ns
- High Level Delay Time
- 190ns
- Quiescent Current
- 300uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 10V~20V
- Driven Configuration
- Half-Bridge
- Operating Temperature
- -40℃~+150℃
- Current - Output Low(IOL)
- 1.5A
- Rise Time
- 600ns
- Fall Time
- 190ns
- Features
- Dead-time control;Interleaved conduction protection;Built-in bootstrap diode
- Current - Output High(IOH)
- 1.2A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.211 g
Overview
U3115S(D)/U3116S(D) is a high-voltage half-bridge gate driver IC designed to drive high-voltage, high-speed power MOSFETs and IGBTs. The device provides independent high-side and low-side referenced output channels. Its logic input levels are compatible with CMOS or LSTTL logic output levels as low as 3.3V. The output stage features high-current pulse capability and integrates shoot-through prevention and dead-time functions to effectively prevent power transistor shoot-through and protect power devices. The floating channel can be used to drive high-side N-channel power MOSFETs and IGBTs, with a maximum floating channel operating voltage of +300V.
Applications
- Home appliances
- Industrial applications and drives
- Motor drives
- DC-AC converters
- HVAC
Key features
- Integrated bootstrap diode
- High-side floating bootstrap design, maximum operating voltage up to +300V
- Negative transient voltage withstand capability
- Gate drive voltage range from 9V to 20V
- VCC/VBS undervoltage lockout protection
- Compatible with 3.3V and 5V input logic
- Built-in shoot-through prevention and dead-time
- Optimized propagation delay characteristics
