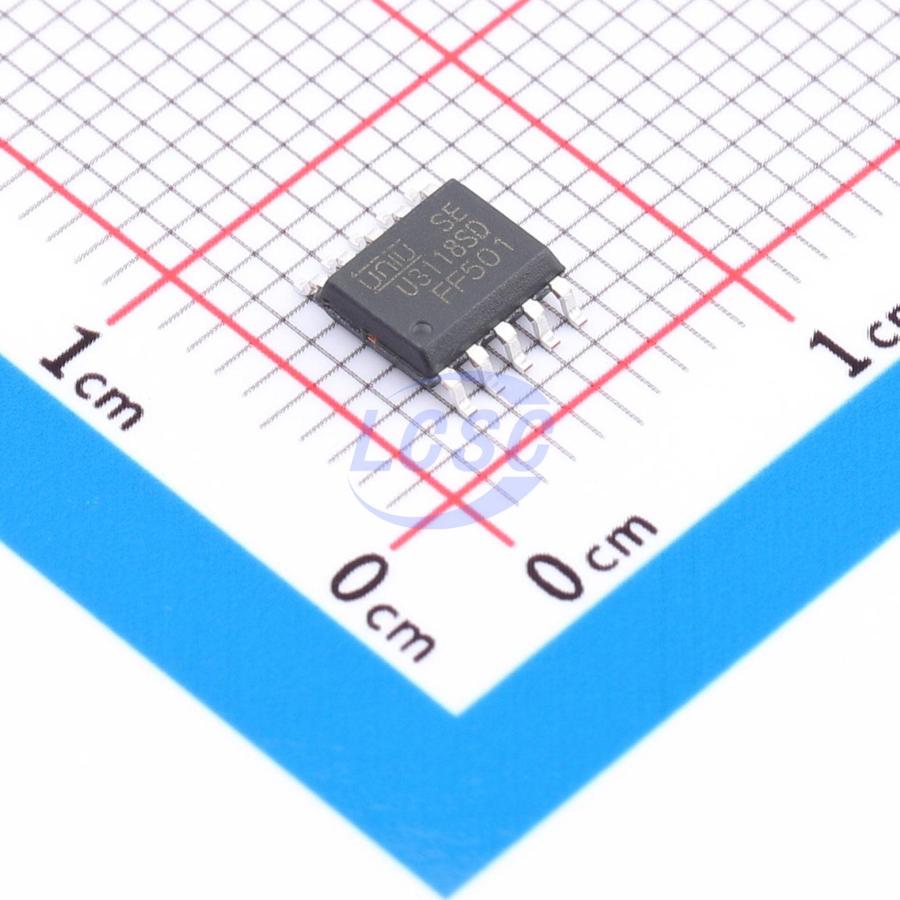

U3118SD
9V~20V 1.5A 1.2A SOP-10 Gate Drivers
- Manufacturer
- UNI-SEMIC
- Manufacturer part #
- U3118SD
- Store part #
- C52953431
- Package / case
- SOP-10
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,885 in stock
#C52953431
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.97 | ₹154.85 |
| 50+ | ₹24.49 | ₹1,224.50 |
| 150+ | ₹21.71 | ₹3,256.50 |
| 500+ | ₹18.24 | ₹9,120.00 |
| 2,500+ | ₹16.70 | ₹41,750.00 |
| 4,000+ | ₹15.77 | ₹63,080.00 |
5 × ₹30.97
₹154.85
excl. GST
₹182.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
U3118SD
₹154.85 for 5 + GST
Specifications
- Quiescent Current
- 60uA
- Voltage - Supply
- 9V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 1.5A
- Rise Time
- 20ns
- Fall Time
- 15ns
- Features
- Dead-time control;Interleaved conduction protection;Built-in bootstrap diode
- Current - Output High(IOH)
- 1.2A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.155 g
Overview
U3117S(D)/U3118S(D) is a high-voltage half-bridge gate driver IC designed to drive high-voltage, high-speed power MOSFETs and IGBTs. The device features independent high-side and low-side referenced output channels. Its logic input levels are compatible with CMOS or LSTTL logic output levels as low as 3.3V. The output stage delivers high-current pulse capability and integrates shoot-through prevention and dead-time functions to effectively prevent power transistor shoot-through and protect power devices. The floating channel supports driving of high-side N-channel power MOSFETs and IGBTs, with a maximum floating supply voltage of +300V.
Applications
- Home Appliances
- Industrial Applications and Drives
- Motor Drives
- DC-AC Converters
- Induction Heating
- HVAC
Key features
- Integrated bootstrap diode
- High-side floating bootstrap design
- Maximum operating voltage up to +300V
- Negative transient voltage withstand capability
- Gate drive voltage range: 9V to 20V
- VCC/VBS undervoltage lockout protection
- Compatible with 3.3V and 5V input logic
- Built-in shoot-through prevention and dead-time
- Optimized propagation delay characteristics
