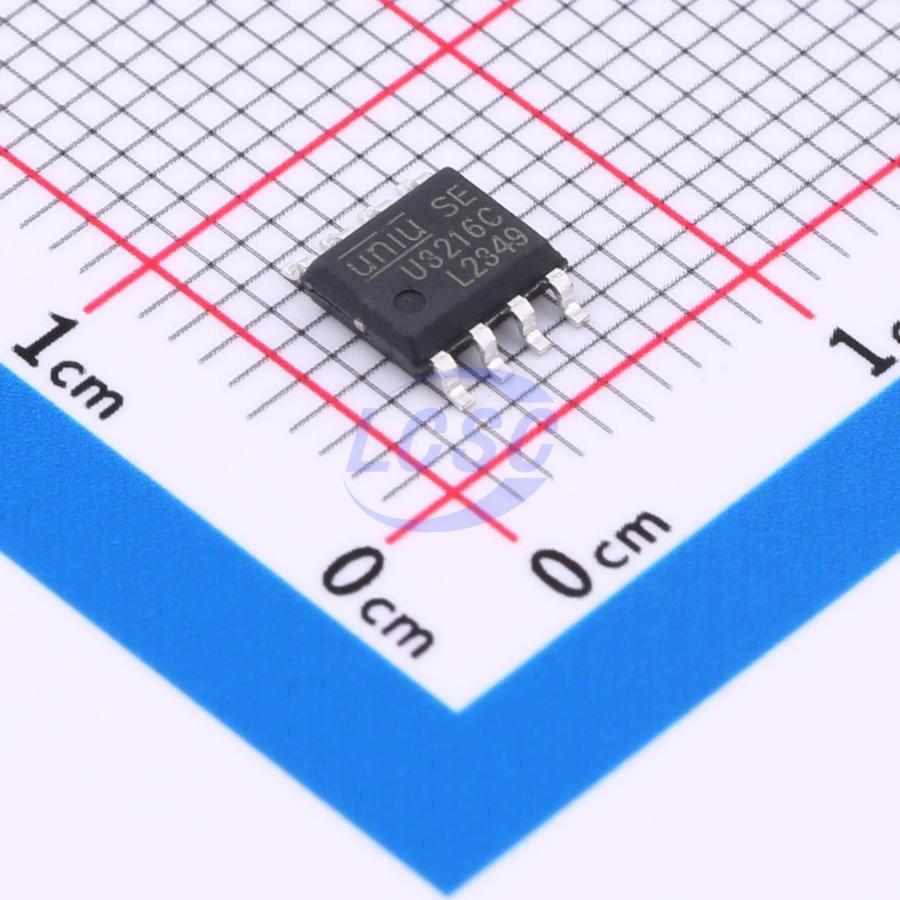

U3216C
5V~20V 2.5A 2.5A SOP-8 Gate Drivers RoHS
High Current IO HALF-BRIDGE DRIVER
- Manufacturer
- UNI-SEMIC
- Manufacturer part #
- U3216C
- Store part #
- C20626023
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,294 in stock
#C20626023
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹70.04 | ₹70.04 |
| 10+ | ₹55.95 | ₹559.50 |
| 30+ | ₹48.79 | ₹1,463.70 |
| 100+ | ₹41.85 | ₹4,185.00 |
| 500+ | ₹39.03 | ₹19,515.00 |
| 1,000+ | ₹36.86 | ₹36,860.00 |
1 × ₹70.04
₹70.04
excl. GST
₹82.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
U3216C
₹70.04 for 1 + GST
Specifications
- Low Level Delay Time
- 320ns
- High Level Delay Time
- 200ns
- Quiescent Current
- 100uA
- Voltage - Supply
- 5V~20V
- Driven Configuration
- Half-Bridge
- Operating Temperature
- -40℃~+150℃
- Current - Output Low(IOL)
- 2.5A
- Rise Time
- 20ns
- Fall Time
- 18ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 2.5A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.173 g
Overview
U3215C/U3216C is a high-voltage, high-speed power MOSFET and IGBT driver with full operating voltage up to +600V, featuring independent high-side and low-side referenced output channels. Logic inputs are compatible with standard CMOS or LSTTL outputs, with logic levels as low as 3.3V. The output driver stage incorporates a high pulse current buffer stage designed to minimize driver cross-conduction. The floating channel can be used to drive N-channel power MOSFETs or IGBTs in high-side configurations at operating voltages up to 600V.
Applications
- Home Appliances
- Industrial Applications & Drives
- Motor Drives
- Induction Heating
- HVAC
Key features
- Floating channel designed for bootstrap operation
- Full operating voltage up to +600V
- Tolerant of negative transient voltage, immune to dV/dt noise
- Gate drive supply voltage range 5V to 20V
- UVLO, compatible with 3.3V, 5V, and 15V input logic
- Cross-conduction prevention logic
- Matched propagation delay for both channels
