UNI-SEMICDatasheet (PDF)

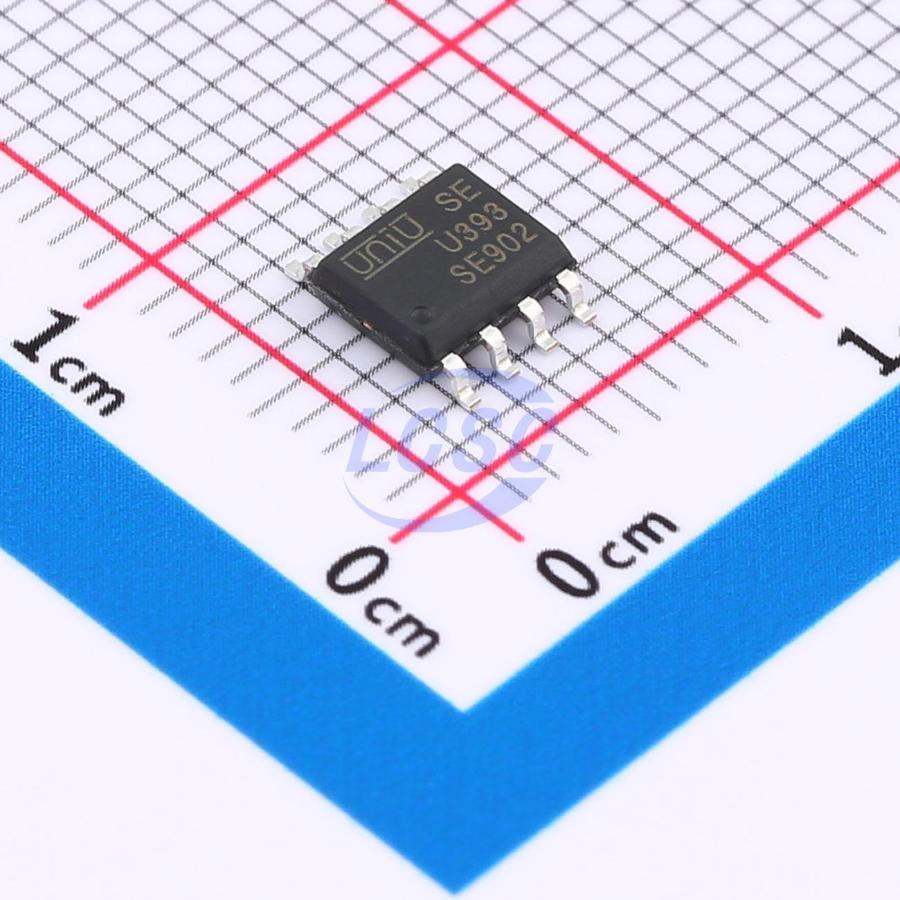

U393
1mV 25nA 2 SOP-8 Linear Comparators RoHS
SOP-8ROHS CompliantActive
Dual Differential Comparators
- Manufacturer
- UNI-SEMIC
- Manufacturer part #
- U393
- Store part #
- C41374783
- Package / case
- SOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,150 in stock
#C41374783
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.30 | ₹61.50 |
| 50+ | ₹9.72 | ₹486.00 |
| 150+ | ₹8.44 | ₹1,266.00 |
| 500+ | ₹7.47 | ₹3,735.00 |
| 2,500+ | ₹6.69 | ₹16,725.00 |
| 4,000+ | ₹6.31 | ₹25,240.00 |
5 × ₹12.30
₹61.50
excl. GST
₹72.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
U393
₹61.50 for 5 + GST
Specifications
- Quiescent Current
- 400uA
- Output Mode
- TTL;DTL;ECL;MOS;CMOS
- Operating Temperature
- 0℃~+70℃
- Dual Supply
- 1V~18V;-18V~-1V
- Vos - Input Offset Voltage
- 1mV
- Ib - Input Bias Current
- 25nA
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.3us
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.172 g
Overview
U393 contains two independent voltage comparators with a maximum offset voltage specification as low as 2.0 mV. These two comparators are designed for single-supply operation over a wide voltage range. They can also operate from split supplies, with low supply current consumption independent of supply voltage. A unique characteristic of these comparators is that their input common-mode voltage range includes ground, even when operating from a single supply voltage.
Key features
- Wide supply voltage range: single supply: 2V ~ 36V; dual supply: ±1V ~ ±18V
- Ultra-low supply current (0.8 mA), independent of supply voltage (2.0 mW/comparator at 5.0 VDC)
- Low input bias current: 25 nA
- Low input offset current: 5.0 nA
- Low input offset voltage: 5.0 mV
- Input common-mode voltage range includes ground
- Differential input voltage range equal to supply voltage
- Output voltage compatible with TTL, DTL, ECL, MOS, and CMOS logic systems
