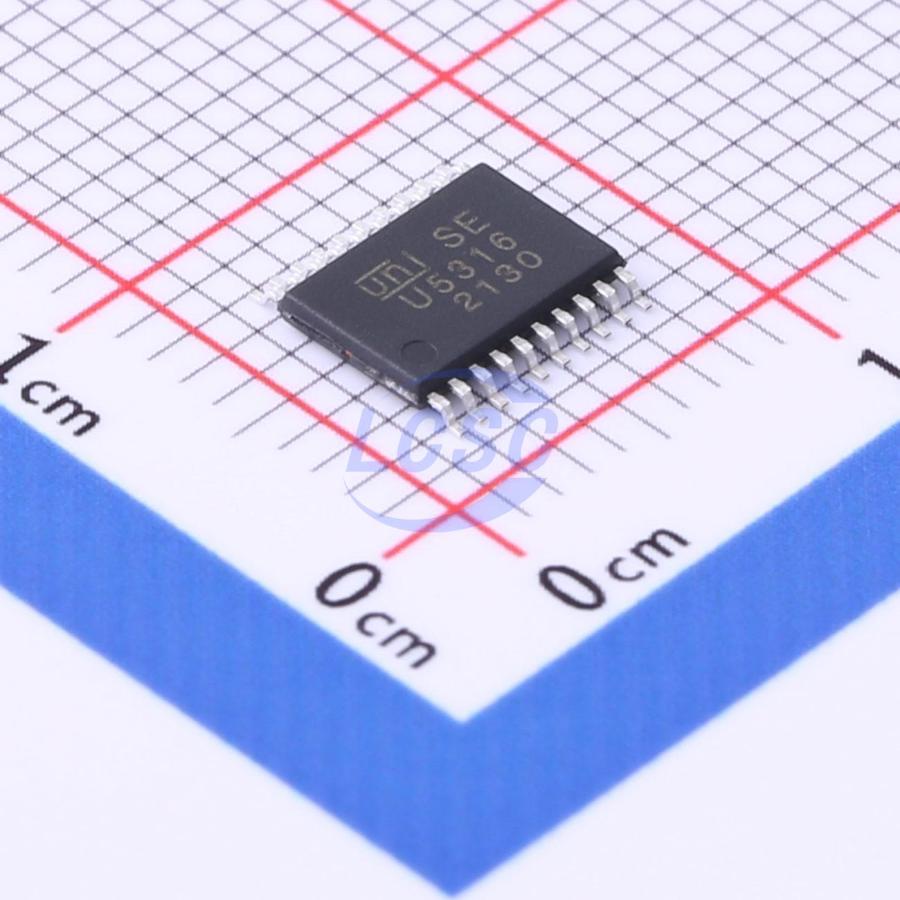

U5316
4.5V~20V 1A 1.2A TSSOP-20 Gate Drivers RoHS
High Current IO 3-PHASE BRIDGE DRIVER
- Manufacturer
- UNI-SEMIC
- Manufacturer part #
- U5316
- Store part #
- C2874739
- Package / case
- TSSOP-20
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,977 in stock
#C2874739
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹93.32 | ₹93.32 |
| 10+ | ₹76.61 | ₹766.10 |
| 30+ | ₹68.15 | ₹2,044.50 |
| 100+ | ₹59.69 | ₹5,969.00 |
| 500+ | ₹52.31 | ₹26,155.00 |
| 1,000+ | ₹49.71 | ₹49,710.00 |
1 × ₹93.32
₹93.32
excl. GST
₹110.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
U5316
₹93.32 for 1 + GST
Specifications
- Quiescent Current
- 330uA
- Voltage - Supply
- 4.5V~20V
- Driven Configuration
- Three Phase
- Operating Temperature
- -40℃~+150℃
- Current - Output Low(IOL)
- 1A
- Rise Time
- 37ns
- Fall Time
- 30ns
- Features
- Undervoltage Protection;Short-Circuit Protection
- Current - Output High(IOH)
- 1.2A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.157 g
Overview
U5315/6 is a high-speed three-phase gate driver for power MOSFETs and IGBTs, featuring three independent high-side and low-side referenced output channels. Built-in dead-time protection and shoot-through protection prevent half-bridge damage. The undervoltage lockout (UVLO) circuit prevents malfunction when VCC and VBS fall below specified threshold voltages. Employing an advanced high-voltage BCD process and common-mode noise cancellation technology, the device ensures stable high-side driver operation under high dV/dt noise conditions, along with excellent negative transient voltage immunity. Low-power features include a standby mode that places the IC into a low quiescent current state for extended battery life.
Applications
- Three-phase motor driver for e-bikes/power tools
- Battery-powered micro/small motor control
- General-purpose inverter
Key features
- Integrated DBOOT(1)
- Floating channel designed for bootstrap operation
- Full operation up to +280V
- Tolerant of negative transient voltage
- Gate drive supply range: 4.5V to 20V
- Three independent half-bridge drivers
- Low-side output inverted from input, high-side output inverted from input
- 3.3V logic compatible
- Lower di/dt gate drive for improved noise immunity
