UNI-SEMICDatasheet (PDF)

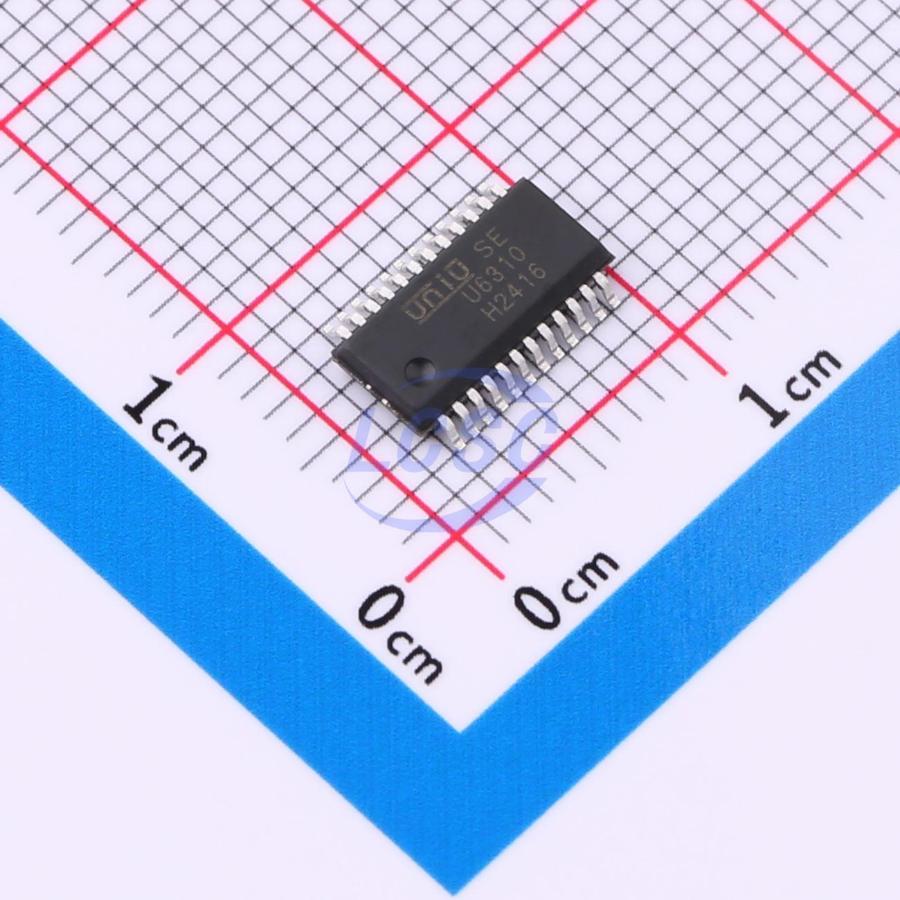

U6310
Full-Bridge Gate Driver IC MOSFET IGBT SSOP-24
SSOP-24ROHS CompliantActive
Integrated 70V 6N three-phase gate driver and 5V+12V LDO control chip
- Manufacturer
- UNI-SEMIC
- Manufacturer part #
- U6310
- Store part #
- C41374698
- Package / case
- SSOP-24
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,879 in stock
#C41374698
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.70 | ₹65.70 |
| 10+ | ₹51.61 | ₹516.10 |
| 30+ | ₹45.54 | ₹1,366.20 |
| 100+ | ₹37.94 | ₹3,794.00 |
| 500+ | ₹34.48 | ₹17,240.00 |
| 1,000+ | ₹32.53 | ₹32,530.00 |
1 × ₹65.70
₹65.70
excl. GST
₹77.53 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
U6310
₹65.70 for 1 + GST
Specifications
- Input Logic Level - Low
- 0V~800mV
- Low Level Delay Time
- 280ns
- High Level Delay Time
- 280ns
- Quiescent Current
- 200uA
- Voltage - Supply
- 10V~70V
- Driven Configuration
- Full bridge
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 1.5A
- Rise Time
- 25ns
- Fall Time
- 20ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 1.8A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.386 g
