UTCDatasheet (PDF)

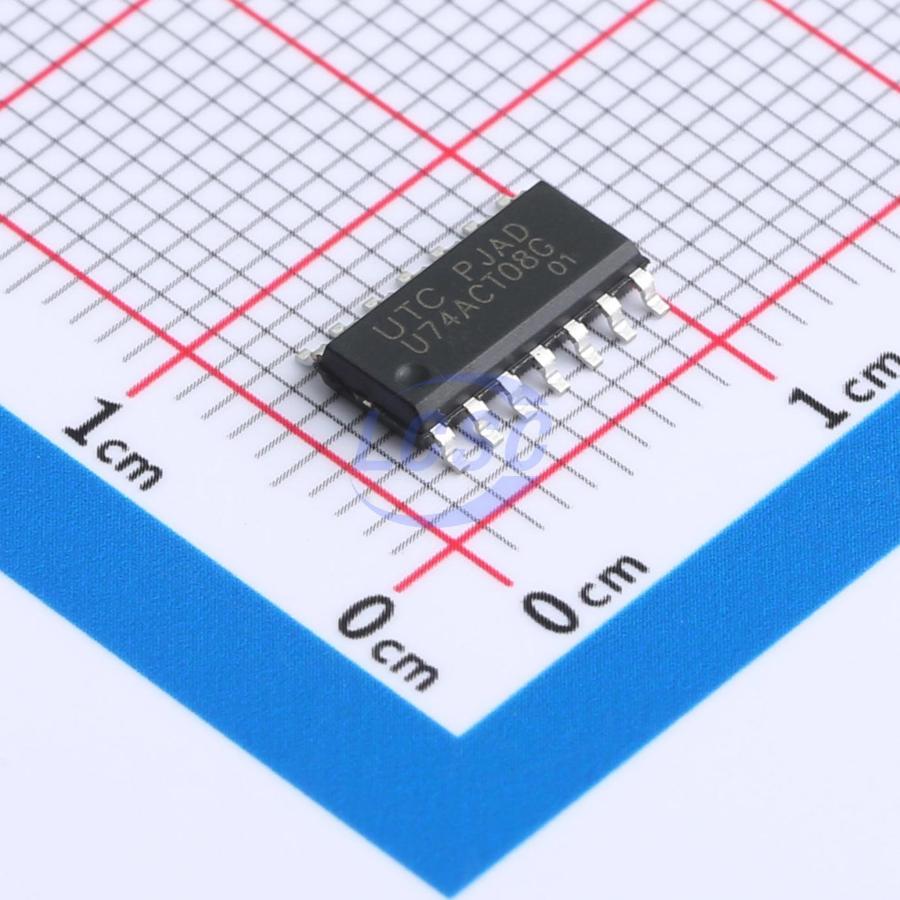

U74ACT08G
4uA 4.5V~5.5V 9ns@5V,50pF SOP-14 Gates and Inverters
SOP-14RoHSActive
CMOS IC QUAD 2-INPUT AND GATE
- Manufacturer
- UTC
- Manufacturer part #
- U74ACT08G
- Store part #
- C7494895
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,550 in stock
#C7494895
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.12 | ₹100.60 |
| 50+ | ₹15.74 | ₹787.00 |
| 150+ | ₹13.87 | ₹2,080.50 |
| 500+ | ₹11.52 | ₹5,760.00 |
| 2,500+ | ₹10.48 | ₹26,200.00 |
| 5,000+ | ₹9.86 | ₹49,300.00 |
5 × ₹20.12
₹100.60
excl. GST
₹118.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
U74ACT08G
₹100.60 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Logic Family
- 74ACT
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 2V
- Output Logic Level - High
- 3.86V;4.4V~4.49V;4.86V;5.4V~5.49V
- Quiescent Current(Iq)
- 4uA
- Voltage - Supply
- 4.5V~5.5V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 2;2
- Propagation Delay
- 9ns@5V,50pF
- Output Logic Level - Low
- 360mV;100mV
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.051 g
Overview
The U74ACT08 consists of four 2-INPUT AND GATE, it provides the function Y = A * B, the device is designed to interface directly High Speed CMOS systems with TTL, NMOS and CMOS output voltage levels.
Key features
- Operation Voltage Range: 4.5 ~ 5.5V
- Low Power Dissipation: ICC = 4μA(Max)
- High Noise Immunity
- Compatible With TTL Output
