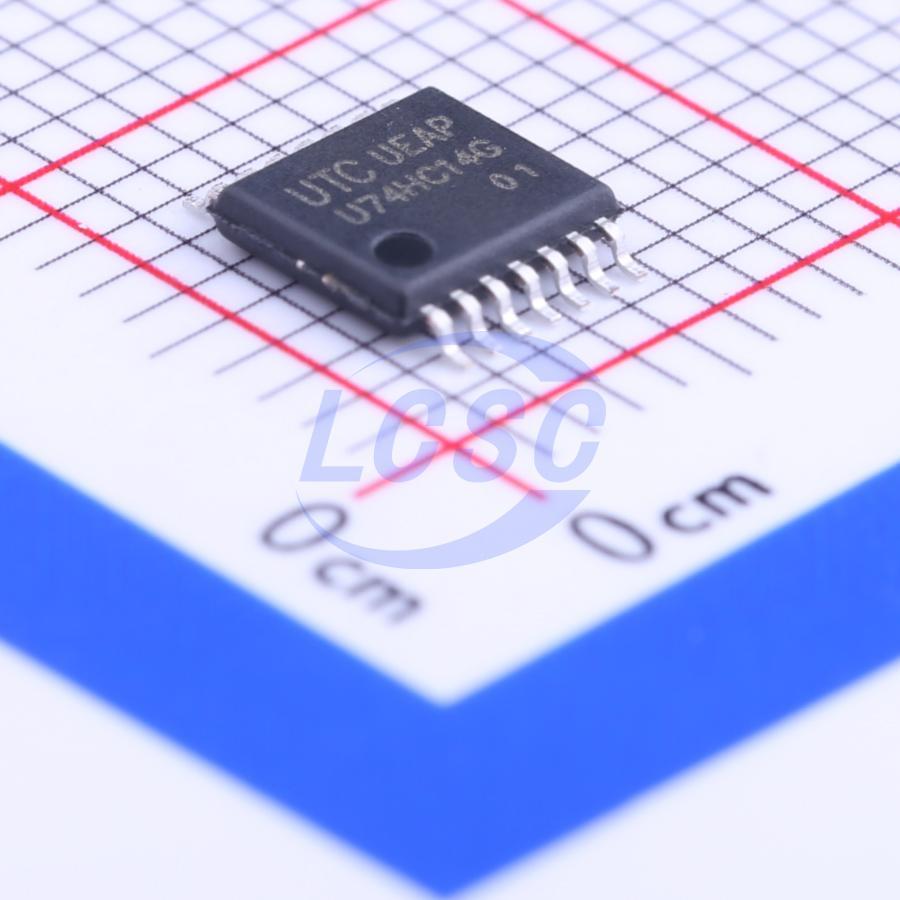

U74HC14G-P14-R
Schmitt trigger 2V~6V 21ns@6V,50pF 2uA 6 TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS CompliantActive
CMOS IC High-Speed CMOS Logic Hex Inverting Schmitt Trigger
- Manufacturer
- UTC
- Manufacturer part #
- U74HC14G-P14-R
- Store part #
- C97666
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,120 in stock
#C97666
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.56 | ₹112.80 |
| 50+ | ₹17.94 | ₹897.00 |
| 150+ | ₹15.96 | ₹2,394.00 |
| 500+ | ₹13.49 | ₹6,745.00 |
| 3,000+ | ₹12.40 | ₹37,200.00 |
| 6,000+ | ₹11.74 | ₹70,440.00 |
5 × ₹22.56
₹112.80
excl. GST
₹133.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
U74HC14G-P14-R
₹112.80 for 5 + GST
Specifications
- Logic Family
- 74HC
- Input Type
- Schmitt trigger
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;260mV
- Propagation Delay
- 21ns@6V,50pF
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 700mV~1.5V;1.55V~3.15V;2.1V~4.2V
- Input Logic Level - Low
- 300mV~1V;900mV~2.45V;1.2V~3.2V
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 6
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.09 g
Overview
The UTC U74HC14 each contain six inverting Schmitt triggers in one package. Each of them perform the Boolean function Y = A(overline)
Key features
- Widely range of input rise and fall time
- high noise immunity
- Fan-out parameters(over temperature range) up to 10 LSTTL Loads
- Low power consumption
- Wide range operation 2V ~ 6V
