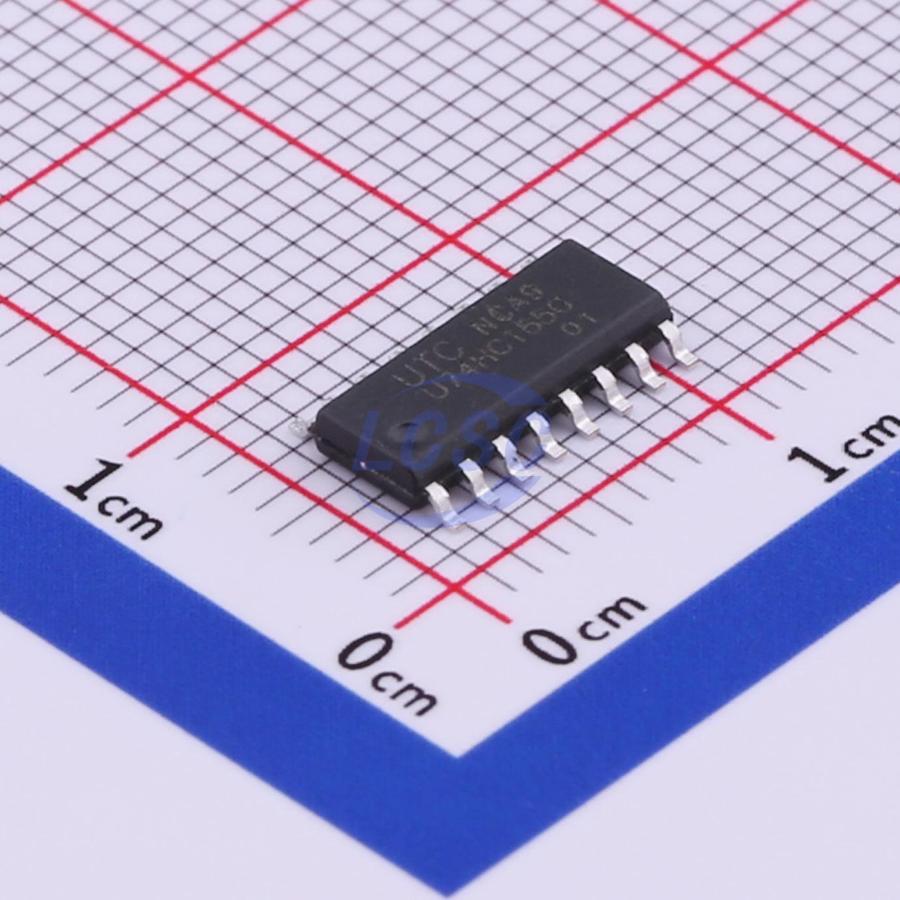

U74HC165G-S16-R

The U74HC165 is an 8-bit parallel-load shift register that, when clocked, shifts the data toward a serial (QH) output. Parallel-in access to each stage is provided by eight individual direct data (A - H) inputs that are enabled by a low level at shift/load (SH/LD) input. The U74HC165 also features a clock-inhibit (CLK INH) function and a complementary serial (QH(overline)) output. Clocking is accomplished by a low-to-high transition of the clock (CLK) input while SH/LD is held high and CLK INH is held low. The functions of CLK and CLK INH are interchangeable. Since a low CLK and a low-to-high transition of CLK INH also accomplish clocking, CLK INH should be changed to the high level only while CLK is high. Parallel loading is inhibited when SH/LD is held high. While SH/LD is low, the parallel inputs to the register are enabled independently of the levels of the CLK, CLK INH, or serial (SER) inputs.

Key features

• Complementary Outputs
• Direct Overriding Load (Data) Inputs
• Gated Clock Inputs
• Parallel-to-Serial Data Conversion
